NZXT H7 Flow RGB, Tempered Glass, White

2.5" Internal Drive Bays - 4
3.5" Internal Drive Bays - 2
ATX Mainboard Form Factor - Yes
Audio-Out Input/Output connectors - 1
Case Type - MidiTower
category - Cases & Modding|PC Cases|Mid Towers|Windowed Mid Towers
Category - Datortehnika :: Datoru komponentes :: Korpusi
Category Code - CAS
Category_1 - Computer Cases and Cooling
Category_2 - Computer Cases
Chassis type - Midi Tower
Code - CM-H71FW-R1
code - CM-H71FW-R1
Color - White
Colour - White
Cooling & Ventilation System - F140 RGB Core fans & one F120Q Quiet Airflow fan
Cooling - Fan 2 maximum airflow - 62.18 cfm
Cooling - Fan 2 maximum air pressure - 1.05 mmH2O
Cooling - Fan speed - 1080 - 1320 RPM
Cooling - Front fans diameters supported - 120
Cooling - Front fans diameters supported - 140 mm
Cooling - Front fans installed - 3x 140 mm
Cooling - Front radiator sizes supported - 360 mm
Cooling - Maximum airflow - 61.74 cfm
Cooling - Maximum air pressure - 2.06 mmH2O
Cooling - Number of front fans supported (max) - 3
Cooling - Number of rear fans supported (max) - 1
Cooling - Number of top fans supported (max) - 3
Cooling - Rear fans diameters supported - 120 mm
Cooling - Rear fans diameters supported - 140 mm
Cooling - Rear fans installed - 1x 140 mm
Cooling - Rear radiator sizes supported - 140 mm
Cooling - Top fans diameters supported - 120
Cooling - Top fans diameters supported - 140 mm
Cooling - Top radiator sizes supported - 360 mm
Desc - Korpusa tips: Mid Tower (ATX), Barošanas bloks: Nav, Krāsa: Balta, Materiāls: Rūdīts stikls / Tērauds / SGCC, 5.25” sloti: Nav, 3.5” sloti: 2, 2.5” sloti: 6, Audio ieeja: Ir, Audio izeja: Ir, USB 2.0: Nav, USB 3.0: Nav, USB 3.2: 2, USB Type-C: 1, Garantija: 2 gadi
Description - ABOUT THE PRODUCT
Light up your build to fit your style. The H7 Flow RGB is an excellent chassis for any ambitious builder, thanks to RGB fans that connect to 5V ARGB, a perforated front panel, and a header splitter to keep your case vibrant without losing performance.
LIGHT IT UP
Achieve a vibrantly colorful build with pre-installed F140 RGB Core fans and a splitter cable that connects to any motherboard with 5V ARGB.
KEEP IT COOL
Get excellent thermal eciency thanks to a perforated top panel. The perforated panel provides improved ventilation as warm air flows through the top of the chassis, enabling even cooler temperatures. The top and front of the case support radiators up to 360mm for maximum cooling support. Three pre-installed RGB fans mean users get RGB cooling right out of the box.
BUILD WITH EASE

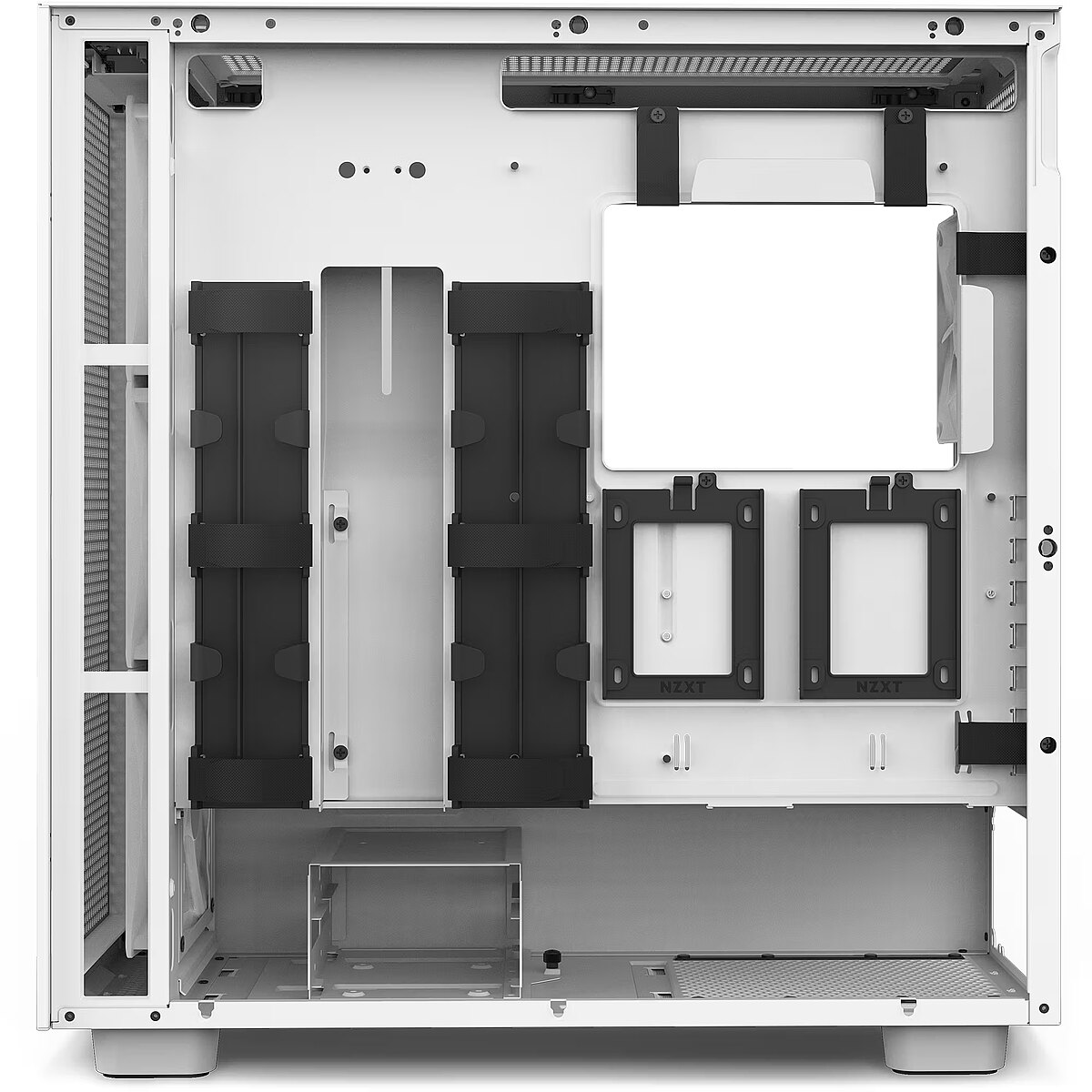

Streamline the build process with an improved cable management system. Wider cable channels provide more room to easily route cables, while the addition of hooks adds stability to hold everything in place. Ample space and clearance make the H7 Flow and H7 Elite a spacious chassis for ambitious builds.
PICK THE RIGHT STYLE
The H7 Flow comes with three RGB fans that match your case's color. Available color options include matte white or matte black.

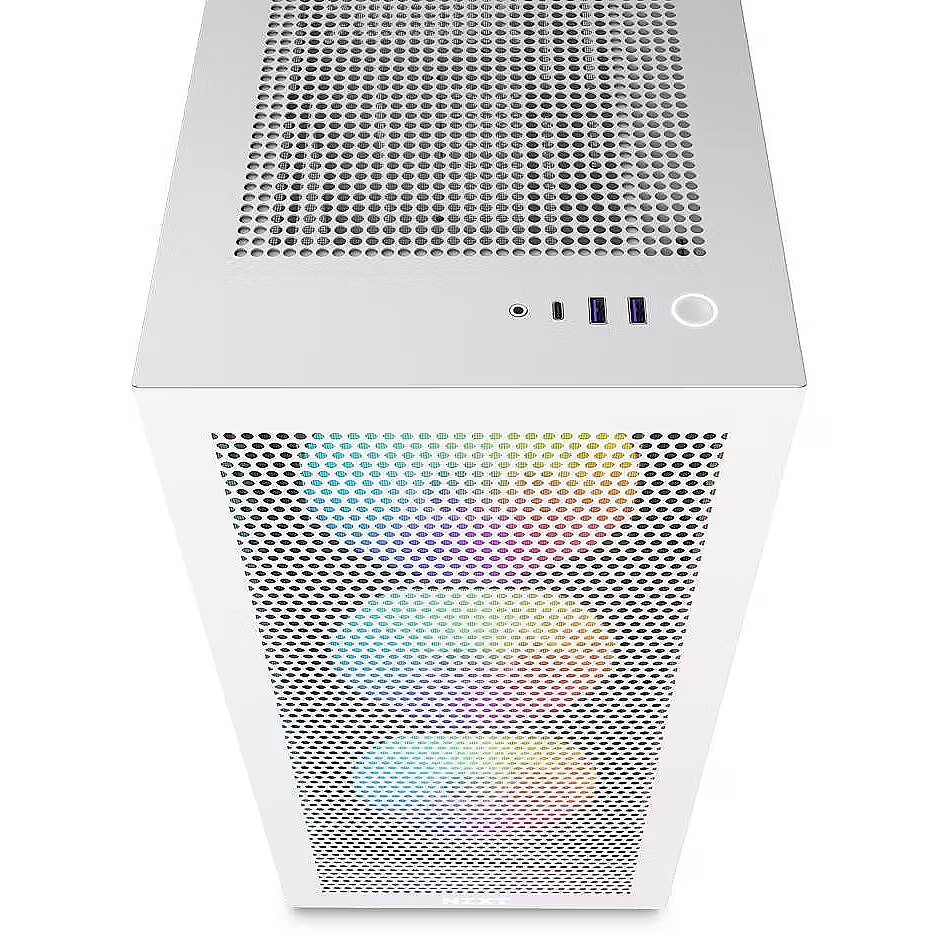

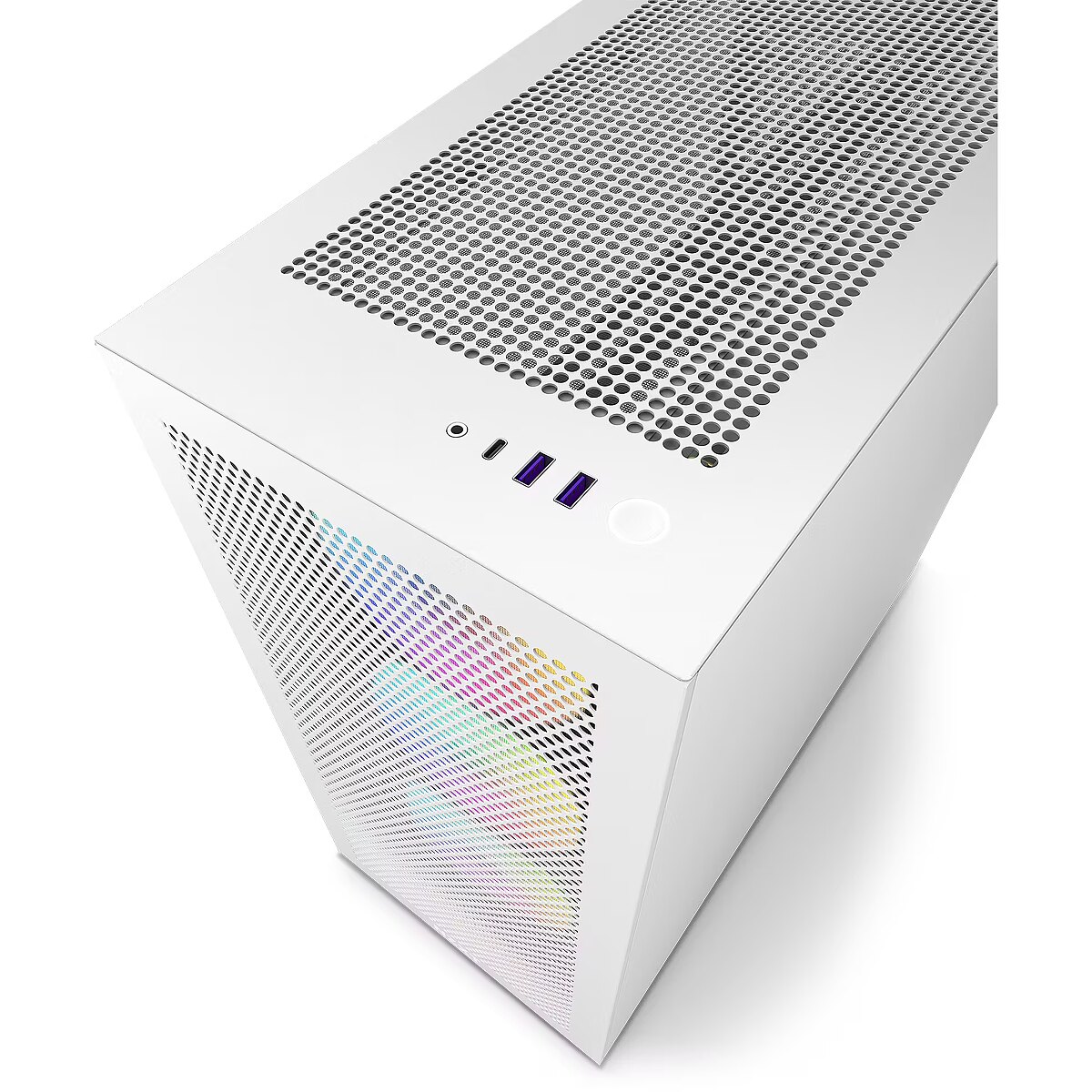

Description - The H7 Flow RGB is ready to keep premium components vibrantly cool. Featuring three pre-installed 140mm RGB Core fans & one F120Q Quiet Airflow fan, this case is ready to kick start your love of RGB in a major way. - Includes three pre-installed F140 RGB Core fans & one F120Q Quiet Airflow fan - Perforated front & top panels enable maximum thermal performance - Intuitive cable management system with wide channels, hooks, & straps - Tool-less access to front & side panels (tinted panels on black variant only) - Front & top support radiators up to 360mm - Connects multiple F140 RGB Core fans to 5V ARGB header on the motherboard - Supports vertical GPU mounting (Sold Separately) - Two top-mounted USB 3.2 Type-A ports - One top-mounted USB 3.2 Type-C port - Drive bays: 2.5":4+2 ; 3.5":2
Design - Cable management - Yes
Design - Form factor - Midi Tower
Design - Illumination - Yes
Design - Illumination colour - Cyan
Design - Illumination colour - Green
Design - Illumination colour - Red
Design - Illumination location - Case fans
Design - Material - Glass
Design - Material - Steel
Design - Maximum CPU cooler height - 18.5 cm
Design - Maximum graphics card length - 40 cm
Design - Maximum PSU length - 20 cm
Design - Number of 2.5" bays - 6
Design - Number of 3.5" bays - 2
Design - Number of expansion slots - 7
Design - On/off button - Yes
Design - Product colour - White
Design - Side window - Yes
Design - Suitable for - Gaming
Design - Supported motherboard form factors - ATX
Design - Supported motherboard form factors - micro ATX
Design - Supported motherboard form factors - Mini-ITX
Design - Tempered glass panel(s) - Yes
Design - Type - PC
Design features - Max CPU Cooler Clearance:Up to 185mm; Max GPU Clearance:Up to 400mm; Front Radiator Clearance:60mm; Top Radiator Clearance:30mm; Cable Management:18-22mm; PSU Clearance:Up to 200mm
dimensionalWeight - 20428
dimension depth - 572 mm
dimension height - 565 mm
Dimensions - 480 x 230 x 505mm
Dimensions - 505x230x480mm
dimension weight - 12300 g
dimension width - 305 mm
Drive bays 2.5'' intern. - 6
Drive bays 3.5'' intern. - 2
EAN - 5056547203546
ean - 5056547203546
EAN_code - 5056547203546
Fan - 12 cm
Fan - 14 cm
Form-factor - ATX
Form-factor - Micro ATX
Form-factor - Mini ITX
Front panel connectors - 1 x mic/headphone (combo)
Front panel connectors - 1 x USB 3.0
Front panel connectors - 1 x USB 3.1 Typ C
Full Description Line - H7 Flow RGB|Max CPU Cooler Clearance:Up to 185mm; Max GPU Clearance:Up to 400mm; Front Radiator Clearance:60mm; Top Radiator Clearance:30mm; Cable Management:18-22mm; PSU Clearance:Up to 200mm|MidiTower|PSU Not included|F140 RGB Core fans & one F120Q Quiet Airflow fan|Dimensions 505x230x480mm
guarantee - 24
guarantee_type - normal
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_110075_1.jpg
LargeDescHTML -
Manufacturer - NZXT
Manufacturer_code - CM-H71FW-R1
MicroATX Mainboard Form Factor - Yes
MiniITX Mainboard Form Factor - Yes
Model - CM-H71FW-R1
Model name - H7 Flow RGB
Name - Datora korpuss NZXT H7 Flow RGB White
Name - NZXT H7 Flow RGB , tower case (white (matt), tempered glass)
name - NZXT H7 Flow RGB Midi-Tower - weiß
name - PC Case H7 Flow RGB with window white
No. of drive bays - 6
Number of expansion slots - 7
Other features -
Packaging content - Manual - Yes
Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Ports & interfaces - USB Type-C ports quantity - 1
Power supply - Failure
Power supply - Power supply included - No
producer - NZXT
producerCode - CM-H71FW-R1
productName - NZXT H7 Flow RGB Midi Tower White
productSize - Normal
PSU - Not included
PSU location - Bottom
Shipping Box Depth Shipping/Package Box Dimensions - 56 cm
Shipping Box Height Shipping/Package Box Dimensions - 56 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 12.4 kg
Shipping Box Width Shipping/Package Box Dimensions - 31 cm
Side panel - Yes
sizeX - 320
sizeY - 570
sizeZ - 560
Storage - Supported HDD sizes - 2.5
Storage - Supported HDD sizes - 3.5"
Unit Box Height - 0.56
Unit Box Length - 0.56
Unit Box Width - 0.31
Unit Brutto Volume - 0.09722 cubm
Unit Gross Weight - 12.4 kg
Unit Net Weight - 10.57 kg
USB-C Input/Output connectors - 1
USB 3.2 Input/Output connectors - 2
Vendor Homepage - nzxt.com/product/h7-flow-rgb#
vendpn - CM-H71FW-R1
Warranty - 24 months
warrantyLength - 24
warrantyType - G
Weight - 10.57 kg
Weight - 12,45
weight - 12600
Weight & dimensions - Depth - 480 mm
Weight & dimensions - Height - 505 mm
Weight & dimensions - Weight - 10.6 kg
Weight & dimensions - Width - 230 mm
