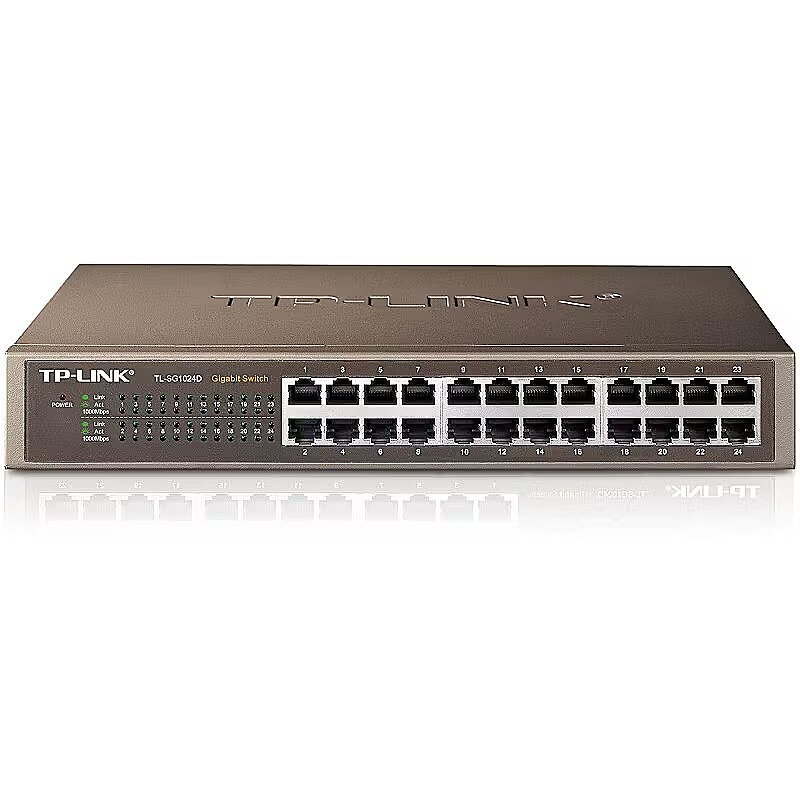

TP-LINK TL-SG1024D, 24port, 1000Mbps

10Base-T / 100Base-TX / 1000Base-T Ports - 24
Application - Medium and large companies
ARTIKEL1 - TL-SG1024D 24-PORT GIGAB SWITCH
ARTIKEL2 - 10/100/1000 MBIT/S-RJ45-PORTS
Auto-negotiation Networking features - Yes
Brand - TP-Link
BrandPartCode - TL-SG1024D V6
Breite - 0.25
Cable distance Networking features - 100m at Cat.5
Category - Network Switches
Category - Root/Electronics/Networks and communication/Switchers
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Chassis type - Desktop
Code - TL-SG1024D
Data transmission - Forwarding rate - 35.7 Mpps
Data transmission - Jumbo frames - 10000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Maximum data transfer rate - 1 Gbit/s
Data transmission - Store-and-forward - Yes
Data transmission - Supported data transfer rates - 10/100/100 Mbps
Data transmission - Switching capacity - 48 Gbit/s
Description - TP-LINK TL-SG1024D + 24 10/100/1000Mbps ports + Innovative energy-efficient technology saves power up to 20% + Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation + Plug & play design The TL-SG1024D 24-Port Gigabit switch provides an easy way to make the transition to Gigabit Ethernet. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save up to 20%* of the power consumption, making it an eco-friendly solution for your business network.
Description - What This Product Does
The TL-SG1024D 24-Port Gigabit switch provides an easy way to make the transition to Gigabit Ethernet. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save up to 20%* of the power consumption, making it an eco-friendly solution for your business network.
Gigabit Switch
Featured with 24 10/100/1000Mbps ports, TL-SG1024D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1024D 24-Port Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1024D can automatically detect the link status of each port and reduce the power consumption of ports that are idle.

Power Budget According to Cable Length
Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters (32.8 or 164.0 feet )in length. The TL-SG1024D analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100 Mbps or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
* Maximum power savings when compared to a TP-LINK conventional switch, the real saving rate may vary based on the usage condition.
Design - Certification - FCC, CE, RoHS
Design - LED indicators - Yes
Design - Product colour - Grey
Design - Rack mounting - Yes
Design - Stackable - Yes
Design > Form factor - Desktop/Rackmountable
dimensionalWeight - 1768
dimension depth - 80 mm
dimension height - 410 mm
dimension weight - 2374 g
dimension width - 250 mm
EAN - 6935364020620
ean - 6935364020620
EANCode - 6935364020620
Eans - 6935364020620
EAN_code - 6935364020620
Full Description Line - 24x10Base-T / 100Base-TX / 1000Base-T|IEEE 802.3x|Cable distance 100m at Cat.5|Auto-negotiation|Switching capacity 48 Gbps|Power supply External|Unit Net Weight 1.67 kg
Gewicht - 2.07
Gross Weight Kg - 2,48
GRUPPE1 - Network
GRUPPE2 - Lan Switch Unmanaged
GTIN - 6935364020620
GTIN - 8459730206206
guarantee - 36
guarantee_type - normal
HERSTELLER - TP-LINK
Hoehe - 0.08
HSTNUMMER - TL-SG1024D
IEEE 802.3x Network standard - Yes
Laenge - 0.4
Link - https://www.tp-link.com/us/business-networking/unmanaged-switch/tl-sg1024d/
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - What This Product DoesThe TL-SG1024D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.TP-LINK Green TechnologyThis new generation TL-SG1024D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.High PerformanceAll 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1024D work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.Easy to UseThe auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
LongProductName - 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX), IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x, 294 x 180 x 44 mm, 100-240VAC, 50/60Hz
LongSummaryDescription - TP-Link 24-Port Gigabit Desktop/Rackmount Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting
MAC address table size - 8000
Management features - Quality of Service (QoS) support - Yes
Management features - Switch type - Unmanaged
Management features > Switch type - Unmanaged
Manufacturer - TP-Link
Manufacturer Code - TL-SG1024D
Manufacturer Name - TP-LINK
Manufacturer_code - TL-SG1024D
MPN - SG1024D
Name - 24P TP-Link SG1024D RM
name - TP-Link SG1024D switch L2 24x1GbE
Name - TP-Link TL-SG1024D
Name - TP-LINK TL-SG1024D, Switch
Name - TP-LINK | Switch | TL-SG1024D | Unmanaged | Desktop/Rackmountable | Gigabit Ethernet (copper) ports quantity 24 | 36 month(s)
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Cable types supported - Cat3
Network - Cable types supported - Cat3, Cat4, Cat5, Cat5e
Network - Cable types supported - Cat4
Network - Cable types supported - Cat5
Network - Cable types supported - Cat5e
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 24
Number of COMBO ports - None
Number of PoE ports (PoE & PoE+) - None
Number of SFP ports - None
Operational conditions - Heat dissipation - 46.44 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Operating temperature (T-T) - 32 - 104 °F
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
Other features - Bandwidth - 48 Gbit/s
Other features - Connectivity LEDs - Y
Other features - Connectivity technology - Wired
Other features - Dimensions (WxDxH) - 294 x 180 x 44 mm
Other features - Networking features - Gigabit Ethernet
Other features - Power requirements - 100 - 240V, 50/60Hz
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 400 mm
Package features > Gross depth master carton - 520 mm
Package features > Gross height (mm) - 250 mm
Package features > Gross height master carton - 350 mm
Package features > Gross weight - 2.096 kg
Package features > Gross width (mm) - 80 mm
Package features > Gross width master carton - 425 mm
Package features > Net weight master carton - 16.768 kg
Package features > Packing quantity - 8 pc(s)
Package features > Palette Qty - 176 pc(s)
Package features > Paper/Pasteboard - 317 g
Package features > Plastic (No PET) - 16 g
Package features > Tare weight (kg) - 0.333 kg
Package features > Tare weight master carton - 1.315 kg
Package features > Volume (m3) - 0.008 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Cables included - AC
Packaging data - Package depth - 400 mm
Packaging data - Package height - 80 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.95 kg
Packaging data - Package width - 250 mm
Packaging data - Rack mount kit - Yes
Packaging data - User guide - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 24
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 24
Ports & interfaces - Power connector - DC-in jack
Ports & interfaces > Gigabit Ethernet (copper) ports quantity - 24
Ports & interfaces > POE - No
Ports & interfaces > Predominant port type - 1 Gbps (RJ-45)
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 13.62 W
Power - Power source - AC
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Power supply - External
Power supply - Internal
producer - TP-LINK
Producer - TP-Link
producerCode - TL-SG1024D
ProducerCode - TL-SG1024D
Producer product family - Switch
Producer product name - TL-SG1024D
ProductName - 24-Port Gigabit Desktop/Rackmount Network Switch
productName - TP-Link 24-Port Gigabit Desktop/Rackmount Network Switch
productSize - Normal
Protocols - Supported network protocols - CSMA/CD, TCP/IP
Shipping Box Depth Shipping/Package Box Dimensions - 40.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 25 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.05 kg
Shipping Box Width Shipping/Package Box Dimensions - 8 cm
ShortDescription - 24 porty 10/100/1000Mb/s | Automatyczne zapamiętywanie adresów MAC | automatyczne krosowanie MDI/MDIX
Short description - TP-LINK Switch TL-SG1024D 24xGBit Unmanaged Desktop
ShortSummaryDescription - TP-Link 24-Port Gigabit Desktop/Rackmount Network Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting
sizeX - 340
sizeY - 325
sizeZ - 80
Stck_Kart - 8
Stck_Pal - 8
Storno - Y
Supported protocols and standards - IEEE802.3
IEEE802.3u
IEEE802.3ab
IEEE802.3x CSMA/CD
TCP/IP
Support for Jumbo frames - No
Switch class - Unmanaged
Switching capacity - 48 Gbps
Switch layer - L2
Technical details > Net weight - 1.763 kg
Technical details > Producer - TP-LINK
Technical details > Warranty - 60 month(s)
Technical_details - The TL-SG1024D 24-Port Gigabit desktop/rack-mount switch provides an easy way to make the transition to Gigabit Ethernet. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save up to 20%* of the power consumption, making it an eco-friendly solution for your business network. Gigabit Switch
Featuresd with 24 10/100/1000Mbps ports, TL-SG1024D greatly expands your network capacity, enabling instant large files transferring. So,power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer - graphics, CGI, CAD, or multimedia files across the network instantly. GO GREEN WITH YOUR ETHERNET
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1024D 24-Port Gigabit desktop/rack-mount Switch Featuress the latest innovative energy-efficient Technologys that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1024D can automatically detect the link status of each port and reduce the power consumption of ports that are idle. Power Budget According to Cable Length
Ideally, shorter cables would use less power because of less power degradation over their length, this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG1024D analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution. Easy to Use
The auto Featuress of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100 Mbps or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Featuress
- Innovative energy-efficient technology saves power up to 20%;
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode;
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput;
- 48Gbps Switching Capacity;
- 10K Jumbo frame improves performance of large data transfers;
- Auto-MDI/MDIX eliminates the need for crossover cables;
- Supports MAC address auto-learning and auto-aging;
- Store and forward Switching scheme;
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware;
- Desktop and Rack-mountable design;
- Plug and Play design simplifies installation. Transfer Rate LAN 10/100/1000 MBit/s LEDs Activity, 24x Lan, Speed, Power Ports RJ-45 LAN 24 Power Operating 15 watt(s) Remarks internes Netzteil, ein 40-mm-Fan Features capacity: 48 GBit/s, 8.000 MAC addresses, Auto Learning, Auto Negotiation, Auto Aging, Store and Forward, Flow Control (Full-Duplex Modus), Backpressure (Half-Duplex Modus), 10 kB-Jumbo-Frames Product dimensions 294 x 44 x 180 mm RoHS Compliant Yes
Throughput - 48 Gb/s
Title - TP-Link 24-Port Gigabit Desktop/Rackmount Network Switch
Unit Box Height - 0.25
Unit Box Length - 0.405
Unit Box Width - 0.08
Unit Brutto Volume - 0.0081 cubm
Unit Gross Weight - 2.05 kg
Unit Net Weight - 1.67 kg
URL - https://www.tp-link.com/uk/service-provider/unmanaged-switch/tl-sg1024d/
Vendor Homepage - http://www.tp-link.com/en/products/details/?model=TL-SG1024D
vendpn - TL-SG1024D
Warranty - 60
Warranty - 60 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1.94
Weight - 2,06
weight - 1940
Weight & dimensions - Depth - 180 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 294 mm
