ID: 500258
Product code: C1000-8T-E-2G-L
Can be ordered 4 units Availability: 14 days after order approval
Warranty: 2 years

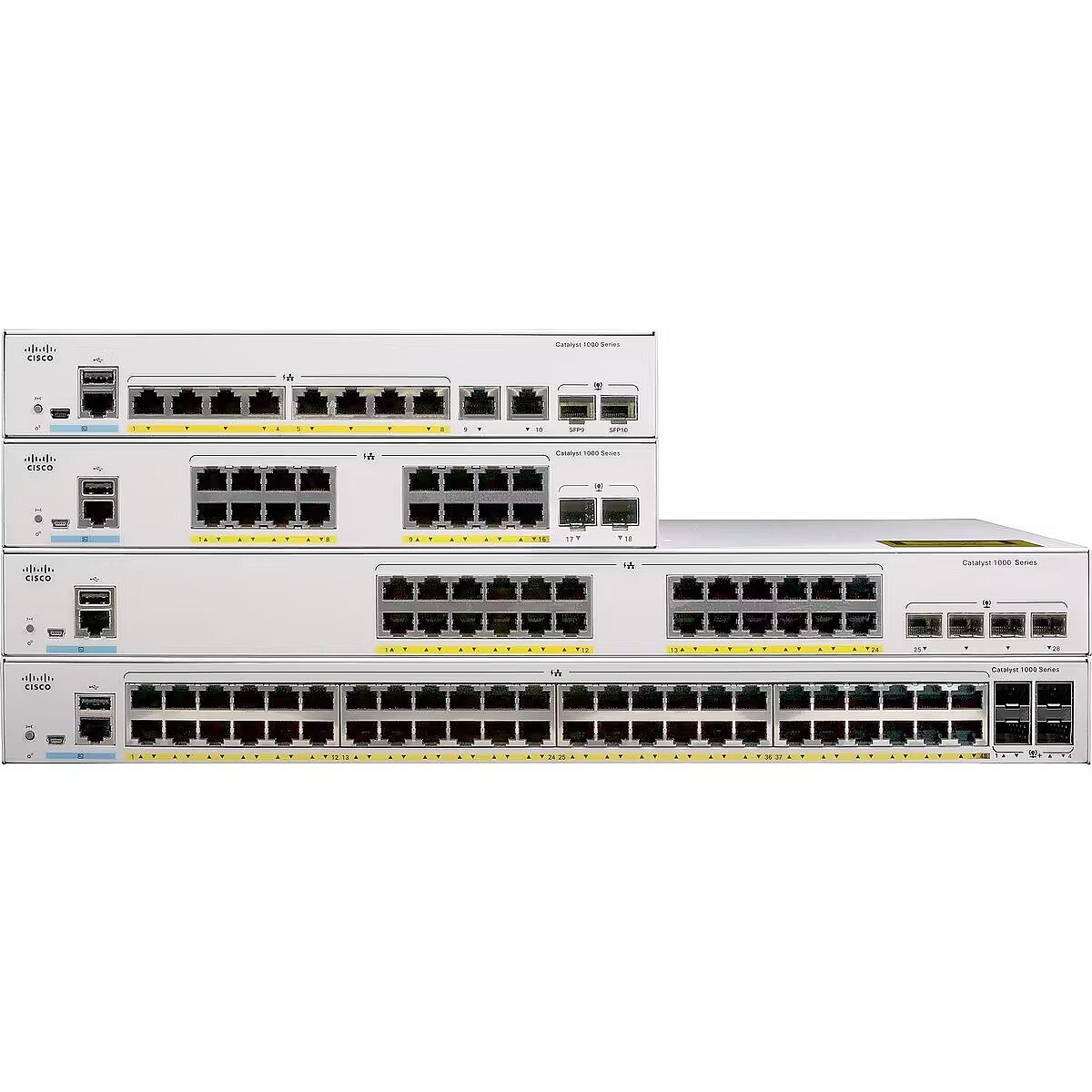

CISCO CATALYST 1000 8PORT 2X1G SFP
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 08.01.2025
- Delivery to Omniva parcel machine free of charge: 08.01.2025
- Piegāde uz DPD Pickup Paku Skapi free of charge: 08.01.2025
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 08.01.2025
- Delivery to address in Riga 3.99 €: 08.01.2025
- Delivery to address in Latvia 6.99 €: 08.01.2025
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 06.01.2025 after 15:00
Main product parameters All parameters
- Base-T speed: 10/100/1000
- RJ-45 Ports: Eight Core
Ports and equipment
Base-T speed
: 10/100/1000
PoE Ports
: N/A
RJ-45 Ports
: Eight Core
SFP Ports
: 2
Specifikācija
Number of fans
: Fanless
PoE Per-Port Power Budget
: N/A
PoE Support
: Nav
PoE Total Power Budget
: N/A
Weight (g)
: 1500 g
Network cards
More detailed specification
ARTIKEL1 - CATALYST 1000 8PORT GE
ARTIKEL2 - EXT PS 2X1G SFP
Data transmission - Forwarding rate - 10000 Mpps
Data transmission - Jumbo frames - 10240
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 15360 entries
Data transmission - Static route - Yes
Data transmission - Switching capacity - 20 Gbit/s
Design - Product colour - Grey
dimensionalWeight - 4153
EANCode - 0889728248785
GRUPPE1 - Network
GRUPPE2 - Switches Managed
HERSTELLER - CISCO
HSTNUMMER - C1000-8T-E-2G-L
Logistics data - Harmonized System (HS) code - 85176990
Logistics data - Quantity per pack - 1 pc(s)
Management features - ARP inspection - Yes
Management features - Configuring Location Settings (CLI) - Yes
Management features - MIB support - Y
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features - Traffic classification - Yes
Management features - Web-based management - Yes
Multicast features - IPv4 multicast entries - 1024
Multicast features - Multicast support - Yes
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Broadcast storm control - Yes
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Full duplex - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.1p
Network - Networking standards - IEEE 802.1s
Network - Networking standards - IEEE 802.1w
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3ad
Network - Networking standards - IEEE 802.3az
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3z
Network - Spanning tree protocol - Yes
Network - VLAN support - Yes
Operational conditions - Non-operating altitude - 0 - 4500 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 5 - 90%
Operational conditions - Operating temperature (T-T) - -5 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -25 - 70 °C
Other features - Dimensions (W x D x H) (imperial) - 268.2 x 184.9 x 43.9 mm (10.6 x 7.28 x 1.73")
Packaging data - Package depth - 349.2 mm
Packaging data - Package height - 160.3 mm
Packaging data - Package weight - 2.59 kg
Packaging data - Package width - 309.6 mm
Performance - Built-in processor - Yes
Performance - Flash memory - 256 MB
Performance - Internal memory - 512 MB
Performance - Mean time between failures (MTBF) - 2171669 h
Performance - Memory type - DRAM
Performance - Processor frequency - 800 MHz
Performance - Processor model - ARM7
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Combo SFP ports quantity - 2
Ports & interfaces - USB 2.0 ports quantity - 1
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 110 - 240 V
Power - Input current - 0.22 A
Power - Power consumption (max) - 14.9 W
Power - Power consumption (typical) - 14.2 W
Power - Power supply included - Yes
producerCode - C1000-8T-E-2G-L
productName - Cisco Catalyst 1000-8T-E-2G-L Network Switch, 8 Gigabit Ethernet (GbE) Ports, 2x 1G SFP/RJ-45 Combo Ports, Fanless Operation, External PS, Enhanced Limited Lifetime Warranty (C1000-8T-E-2G-L)
productSize - Normal
Protocols - Management protocols - SNMP
Security - Access Control List (ACL) - Yes
Security - Authentication - Web-based authentication
Security - Authentication type - RADIUS
Security - BPDU filtering/protection - Yes
Security - DHCP features - DHCP snooping
Security - IGMP entries - 1024
Security - IGMP snooping - Yes
Security - Loop protection - Yes
Security - SSH/SSL support - Yes
sizeX - 355
sizeY - 180
sizeZ - 325
Stck_Kart - 44
Stck_Pal - 72
Storno - Y
warrantyLength - 24
warrantyType - G
weight - 2505
