10/100/1000/2500 Mbps ports - None
10/100/1000BASE-T/SFP combo Ports - 4
Accessories included -
Application - Medium and large companies
brand - MikroTik
category - MikroTik > Komutatori > Cloud Router Switch
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Chassis type - Rack
Code - CRS328-4C-20S-4S+RM
Console port - Yes
Description - CRS328-4C-20S-4S+RM to 28 niezależnych przełączników z grupą combo. To urządzenie ma dwadzieścia portów SFP, cztery porty SFP+ dla modułów 10G i cztery porty combo, gdzie możesz wybrać użycie portów SFP lub RJ45 z grupy combo. Te porty można również wybrać programowo, więc jeśli podłączyłeś wszystkie osiem kabli, możesz użyć skryptów, aby zdecydować, które cztery porty combo będą aktywne.
Urządzenie jest dostarczane w obudowie rackowej 1U z dwoma zasilaczami 100-240 V z funkcją przełączania awaryjnego. Port konsoli RJ45 jest dostępny do zarządzania i debugowania, a przycisk trybu może być dostosowany do wykonywania dowolnych poleceń RouterOS.
Urządzenie posiada funkcję Dual boot, która pozwala na wybór pomiędzy dwoma systemami operacyjnymi - RouterOS lub SwOS.

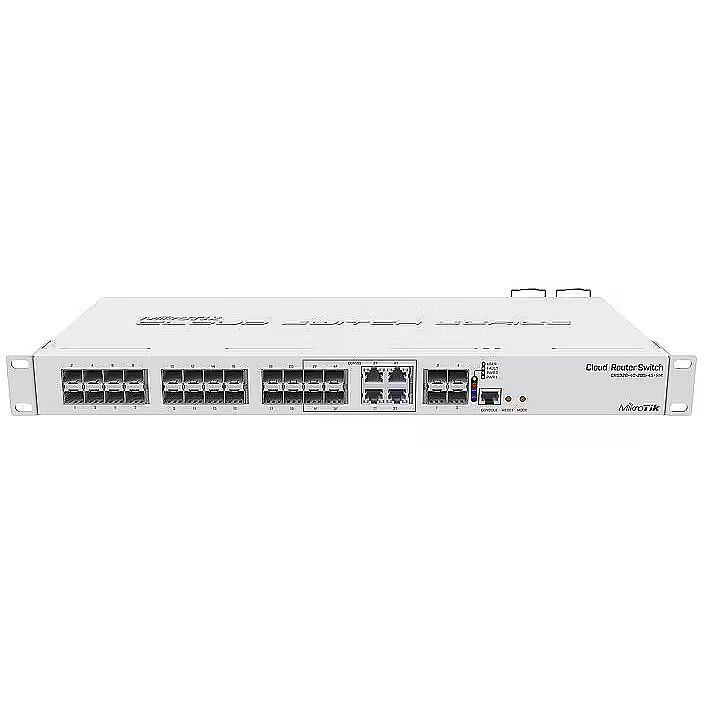

Description - MIKROTIK CRS328-4C-20S-4S+RM The CRS328-4C-20S-4S+RM is a 28 independent port switch with a combo group. This device has twenty SFP ports, four SFP+ ports for 10G modules and four combo ports, where you can choose to use SFP or RJ45 ports from the combo group. These ports can also be software selected, so if you have plugged in all eight cables, you can use scripting, to decide which four combo ports will be active. The device comes in a 1U rackmount case with two 100-240 V power supplies with failover functionality. A RJ45 console port is available for management and debugging, and a mode button can be customised to execute any RouterOS commands. The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS.
Design > Form factor - Rackmountable
dimension depth - 60 mm
dimension height - 490 mm
Dimensions - 443 x 194 x 44 mm
Dimensions - 443 x 200 x 44 mm
dimension weight - 2150 g
dimension width - 310 mm
EAN - 4752224002242
ean - 4752224002242
Fan - Yes
Forwarding rate - 95.2 Mpps
Forwarding rate - 95.2 Mpps
Full Description Line - Type L2|Rack 1U|4x10/100/1000BASE-T/SFP combo|20xSFP|4xSFP+|1xRJ45|IEEE 802.1Q|IEEE 802.3ad|Switching capacity 128 Gbps|Forwarding rate 95.2 Mpps|Dimensions 443 x 200 x 44 mm|Unit Net Weight 1.7 kg
Gross weight - 2.5, 2.5 kg
guarantee - 12
guarantee_type - normal
height - 0.071 m
IEEE 802.1Q Network standard - Yes
IEEE 802.3ad Network standard - Yes
Jumbo frame size - 10218 MB
L2 features -
L3 features -
length - 0.5 m
Link - https://mikrotik.com/product/crs328_4c_20s_4s_rm
Management, monitoring, configuration -
Management features > Switch type - Managed L3
Manufacturer - MikroTik
Mean time between failures (MTBF) - 200000 h
Model name - CRS328-4C-20S-4S+RM
mpn - CRS328-4C-20S-4S+RM
MPN - CRS328-4C-20S-4S+RM
Name - 20P+8 Mikrotik CRS328-4C-20S-4S+RM SFP+ POE
name - MikroTik Switch 20SFP 4 SFP+ CRS328-4C-20S-4S+R
Name - MikroTik | Cloud Router Switch CRS328-4C-20S-4S+RM | Managed L3 | Rackmountable | Gigabit Ethernet (copper) ports quantity 4 | SFP ports quantity 20 | SFP+ ports quantity 4 | 12 month(s)
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - None
Number of 10Gb ports - None
Number of COMBO ports - 4
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - 4
Number of SFP ports - 20
Other features - Architektura: 32-bitowe ARM Procesor: 98DX3236 Liczba rdzeni procesora: 1 Częstotliwość nominalna procesora: 800 MHz Licencja RouterOS: 5 System operacyjny: RouterOS/SwitchOS Rozmiar pamięci RAM: 512 MB Rozmiar pamięci: 16 MB Typ pamięci: FLASH Testowana temperatura otoczenia -20°C do 60°C
Other functions -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 490, 490 mm
Package features > Gross height (mm) - 60, 60 mm
Package features > Gross width (mm) - 310, 310 mm
Package features > Packing quantity - 1, 1.00 pc(s)
Package features > Palette Qty - 95 pc(s)
Package features > Paper/Pasteboard - 724 g
Package features > Plastic (No PET) - 80 g
Package features > Tare weight (kg) - 0.804, 0.804 kg
Package features > Volume (m3) - 0.009114, 0.009114 m³
Package features > WEE classification - CL109:6:2017-04-01, CL109:6:2017-04-01
Package features > WEEE tax - Yes, Yes
Ports & interfaces > Gigabit Ethernet (copper) ports quantity - 4
Ports & interfaces > POE - No
Ports & interfaces > Predominant port type - SFP (1 Gbps Fiber)
Ports & interfaces > SFP+ ports quantity - 4
Ports & interfaces > SFP ports quantity - 20
Power consumption - 43 W
Power supply -
producer - Mikrotik
Producer product name - Cloud Router Switch CRS328-4C-20S-4S+RM
QoS -
Rack 1U Mounting Type - Yes
RJ45 Ports - 1
Security -
SFP+ Ports - 4
SFP Ports - 20
Shipping Box Depth Shipping/Package Box Dimensions - 49.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 31 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.528 kg
Shipping Box Width Shipping/Package Box Dimensions - 6 cm
Supported protocols and standards -
Support for Jumbo frames - Yes
Switch class - Managed
Switching capacity - 128 Gbps
Switch layer - L2
Switch type - L2
Technical details > Net weight - 1.696, 1.696 kg
Technical details > Other features - POE In: Passive POE
Technical details > Producer - MikroTik
Technical details > Software type - RouterOS (Level 5)
Technical details > Warranty - 12 month(s)
Throughput - 128 Gb/s
title - MikroTik CRS328-4C-20S-4S+RM
Unit Box Height - 0.31
Unit Box Length - 0.495
Unit Box Width - 0.06
Unit Brutto Volume - 0.009207 cubm
Unit Gross Weight - 2.53 kg
Unit Net Weight - 1.7 kg
Vendor Homepage - mikrotik.com/product/crs328_4c_20s_4s_rm
vendpn - CRS328-4C-20S-4S+RM
VLAN -
Warranty - 12
Warranty - 12 months
Weight - 2.56
weight - 2.75 kg
width - 0.32 m
