ARTIKEL1 - 5-PORT LAYER2 POE FAST
ARTIKEL2 - ETHERNET SWITCH
Brand - D-Link
BrandPartCode - DES-1005P/E
Category - Network Switches
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Certificates - Certification - RoHS, FCC, CE, cUL, ICES-003 B
Data transmission - MAC address table - 2000 entries
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - No
Design - Stackable - No
EANCode - 0790069370908
EAN_code - 0790069370908
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 790069370908
GTIN - 0790069370908
HERSTELLER - D-LINK
HSTNUMMER - DES-1005P/E
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - The DES-1005P offers an economical way for SOHO users to not only enjoy the benefit of having a five-port network switch, but having a five-port network switch with one of those ports PoE enabled. Users can then easily create a PoE home surveillance system even in locations where power sockets are limited. The addition of a PoE port to a five port switch allows SMB users an alternative to larger, more expensive switches, without having to sacrifice the need to power PoE devices.Fast Internet Connection at Home.The D-Link DES-1005P 5-Port Fast Ethernet PoE Unmanaged Desktop Switch allows you to easily connect a Power over Ethernet (PoE) device such as a wireless access point (AP), IP camera, or IP phone. The switch also gives you the opportunity to add additional Ethernet devices such as computers, printers, and Network Attached Storage (NAS) onto your network. This compact PoE switch operates quietly, making it ideal for use in virtually any room or office.Power over Ethernet (PoE).The first port of the DES-1005P supports the IEEE 802.3af PoE standard. The port supplies a total PoE budget of 15.4 watts, allowing users to attach an IEEE 802.3af-compliant device to the DES-1005P that requires no additional power. Use PoE for applications that are far from power outlets or when you want to minimise the clutter of extra cables.Auto MDI/MDIX Crossover.All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.Conserves Energy.The DES-1005P 5-Port Fast Ethernet PoE Unmanaged Desktop Switch makes use of D-Link Green™ eco-friendly technology, providing energy savings, reduced power consumption, and a longer product life without sacrificing operational performance or functionality. This switch helps to conserve energy through methods such as Link Status and Cable Length Detection. The Link Status feature automatically powers down ports that have no link, allowing the switch to save substantial amounts of energy by cutting power for unused ports or ports connected to computers that have been shut down. It can also detect connected cable lengths, and adjust power usage accordingly, helping you save energy without affecting networking performance. In addition, the fan-less design extends the switch’s life and also reduces noise.
LongProductName - 5x 100BASE-TX RJ-45, 1 Gbps, 2K MAC
LongSummaryDescription - D-Link DES-1005P. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Power over Ethernet (PoE)
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Unmanaged
Manufacturer - D-Link
Manufacturer_code - DES-1005P/E
Name - D-Link DES-1005P PoE/100/UNM/ 5 - 1xPoE
Network - 10G support - No
Network - Auto MDI/MDI-X - Yes
Network - Full duplex - Yes
Network - Networking standards - IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Power LED - Yes
Packaging data - Package depth - 250 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 950 g
Packaging data - Package width - 208 mm
Performance - Mean time between failures (MTBF) - 324616 h
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 5
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)

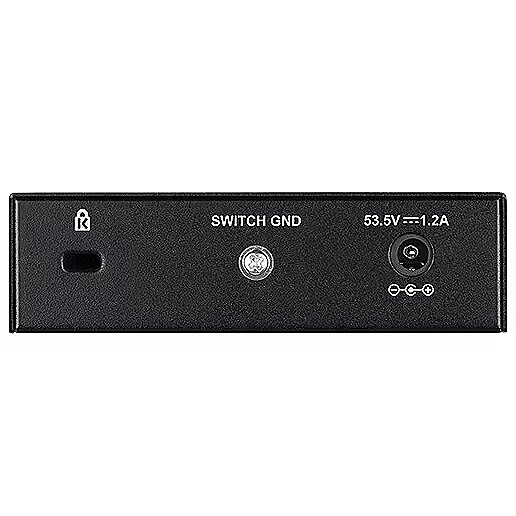

Ports & interfaces - Power connector - DC-in jack
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 1
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 15.4 W
ProductName - DES-1005P
ShortSummaryDescription - D-Link DES-1005P, Unmanaged, L2, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE)
Stck_Kart - 10
Stck_Pal - 5
Storno - N
Technical details - Master (outer) cases per pallet (air) - 48 pc(s)
Technical details - Master (outer) cases per pallet (sea) - 48 pc(s)
Technical details - Pallet gross length - 110 cm
Technical details - Pallet gross weight (air) - 514.6 kg
Technical details - Pallet gross weight (sea) - 514.6 kg
Technical details - Pallet gross width - 120 cm
Technical details - Pallet height (air) - 196.7 cm
Technical details - Pallet height (sea) - 196.7 cm
Technical details - Products per pallet (air) - 480 pc(s)
Technical details - Products per pallet (sea) - 480 pc(s)
Technical details - Products per shipping (inner) case - 10 pc(s)
Technical details - Shipping (inner) case gross weight - 10.2 kg
Technical details - Shipping (inner) case height - 44.3 cm
Technical details - Shipping (inner) case length - 37 cm
Technical details - Shipping (inner) case net weight - 9.5 kg
Technical details - Shipping (inner) case width - 26.6 cm
Technical_details - DES-1005P 5-Port Fast Ethernet Unmanaged Metal Desktop Switch with 1 PoE Port Transfer Rate LAN 10/100 MBit/s LEDs Activity, 5x Lan, Speed Ports RJ-45 LAN 5 (1 PoE) Remarks Puffer: 64 kb; PoE-Budget: 15,4 Watt Features IEEE 802.3x Flow Control, 2K MAC addresses Product dimensions 140 x 28 x 85 mm RoHS Compliant Yes
Title - D-Link DES-1005P Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
URL - https://www.dlink.com/uk/en/business-solutions/switching/unmanaged-switches/desktop/des-1005p-5-port-poe-fast-ethernet-desktop-switch
WarrantyInfo -
Weight - 0,73
Weight & dimensions - Depth - 85 mm
Weight & dimensions - Height - 28 mm
Weight & dimensions - Width - 140 mm
