Accessories included -
ARTIKEL1 - SFP+ DIRECT ATTACHED CABLE 1M
ARTIKEL2 - .
Brand - D-Link
BrandPartCode - DEM-CB100S
Cable length - 1 m
Category - InfiniBand & Fibre Optic Cables
Category_1 - Network and Servers
Category_2 - Network - Network Accessories
Certificates - Certification - SFP MSA (Multi-Source Agreement)
SFF-8431
EIA 364
UL 94
Code - DEM-CB100S
Connectors #1 - SFP+
Connectors #2 - SFP+
Description -
Design > Form factor - SFP+
Designation - CE+WEEE
dimension depth - 50 mm
dimension height - 270 mm
Dimensions -
dimension weight - 266 g
dimension width - 325 mm
EAN - 790069361708
ean - 790069361708
EANCode - 0790069361708
EAN_code - 0790069361708
Features - AWG wire size - 30
Features - Cable length - 1 m
Features - Connector 1 - SFP+
Features - Connector 1 gender - Male
Features - Connector 2 - SFP+
Features - Connector 2 gender - Male
Features - Data transfer rate - 10 Gbit/s
Features - Product colour - Black
Features > Colour of product - Black
Features > Data transfer rate - 10/100/1000/10000 Mbit/s
Features > Media type - Copper
Gross weight - 0.201 kg
GRUPPE1 - Cables
GRUPPE2 - Fiber Optic Cable
GTIN - 0790069361708
GTIN - 790069361708
GTIN - 0790069365102
GTIN - 790069365102
GTIN - 7900693617086
GTIN - 7900693651028
guarantee - 24
guarantee_type - external
HERSTELLER - D-LINK
HSTNUMMER - DEM-CB100S
Link - http://www.dlink.com/us/en/support/product/dem-cb100s
Logistics data - Master (outer) cases per pallet (air) - 30 pc(s)
Logistics data - Master (outer) cases per pallet (sea) - 42 pc(s)
Logistics data - Pallet gross length - 110 cm
Logistics data - Pallet gross weight (air) - 127 kg
Logistics data - Pallet gross weight (sea) - 172.6 kg
Logistics data - Pallet gross width - 120 cm
Logistics data - Pallet height (air) - 146 cm
Logistics data - Pallet height (sea) - 199 cm
Logistics data - Products per pallet (air) - 300 pc(s)
Logistics data - Products per pallet (sea) - 420 pc(s)
Logistics data - Products per shipping (inner) case - 10 pc(s)
Logistics data - Shipping (inner) case gross weight - 3.8 kg
Logistics data - Shipping (inner) case height - 26.5 cm
Logistics data - Shipping (inner) case length - 56.2 cm
Logistics data - Shipping (inner) case net weight - 2.8 kg
Logistics data - Shipping (inner) case width - 33.6 cm
LongDesc - These 10G Passive SFP+ Twinaxial Direct Attach Cables are designed to support connections for 10 Gbps Gigabit Ethernet or Gigabit Ethernet switches with 10 Gbps Gigabit Ethernet uplink, much more faster than SFP which only supports 2.5 Gbps Gigabit Ethernet. With two cable models including the DEM-CB100S and DEM-CB300S, these cables are suitable for short distances up to 3 metres, and is ideal for highly cost-effective networking connectivity between switches and servers within a rack or in adjacent racks. These 10G Passive SFP+ Twinaxial Direct Attach Cables are certified to be compatible with D-Link products to provide you best performance and reliability.Ideal for High-Bandwidth OperationsThese D-Link 10G Passive SFP+ Twinaxial Direct Attach Cables support speeds of up to 10 Gbps, while having lower latency and power consumption than other cables types such as 10GBASE-CX4 and CAT6/CAT6A 10GBASE-T. This makes it an optimal solution for handling high bandwidth transmission within short distances such as inside energy-efficient data centres.Enhanced Small Form-factor Pluggable FormatThese D-Link 10G Passive SFP+ Twinaxial Direct Attach Cables use Enhanced Small Form- factor Pluggable format (SFP+) connectors. The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, resulting in lower costs, lower power disruption, and higher port density. Meanwhile SFP+ connectors use the same space-per-port as standard SFP connectors but support higher data transmission speeds.Save on CostsThese D-Link 10G Passive SFP+ Twinaxial Direct Attach Cables feature SFP+ connectors onboth ends, thus eliminating the need for expensive SFP+ transceivers. This makes it morecost-effective than fibre cables which must use SFP+ transceivers.

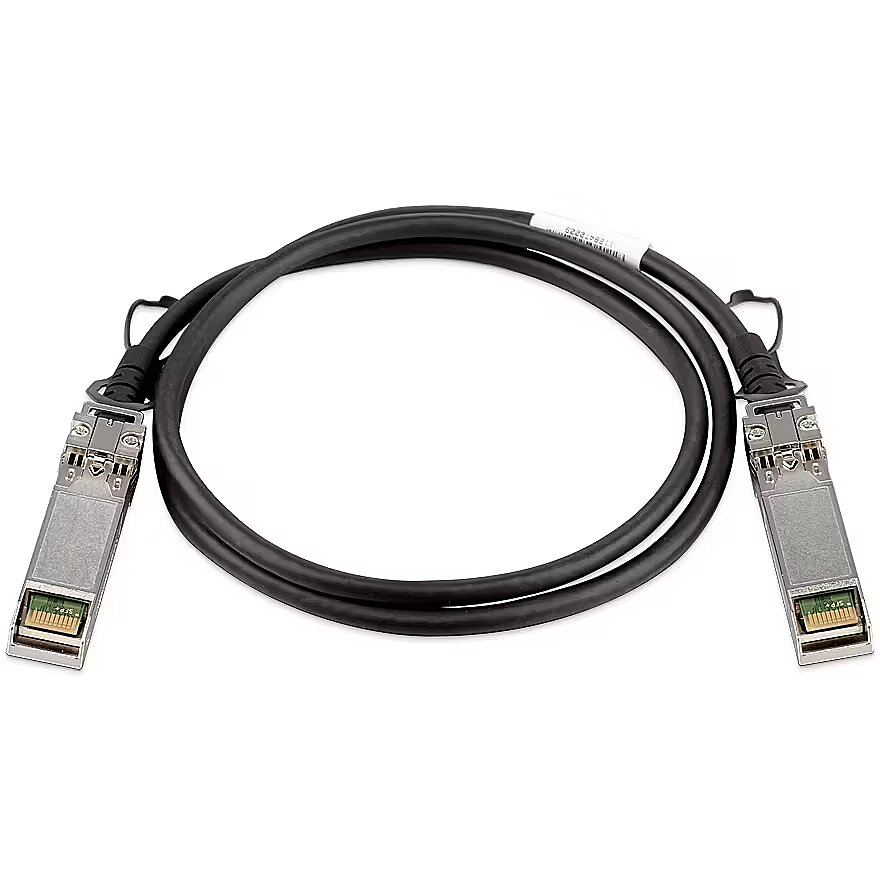

LongProductName - 100 cm 10GbE Direct Attach SFP+ Cable DEM-CB100S
LongSummaryDescription - D-Link 100 cm 10GbE Direct Attach SFP+ Cable DEM-CB100S. Cable length: 1 m, Connector 1: SFP+, Connector 2: SFP+
Manufacturer - D-Link
Manufacturer_code - DEM-CB100S
Name - D-Link Cable DEM CB100S SFP + Direct Attach (black, 1 meter)
Name - D-Link | DEM-CB100S | SFP+ | Copper | Direct Attach Cable | 10/100/1000/10000 Mbit/s | Maximum transfer distance 1 m | -40 to +85C
name - DEM-CB100S Direct Attach SFP+ Cable
Operating temperature - -40 to +85C
Operational conditions - Operating temperature (T-T) - -40 - 85 °C
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 240.00 mm
Package features > Gross height (mm) - 34.00 mm
Package features > Gross width (mm) - 165.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 1283 pc(s)
Package features > Paper/Pasteboard - 100.00 g
Package features > Plastic (No PET) - 1.00 g
Package features > Tare weight (kg) - 0.101 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Package depth - 317 mm
Packaging data - Package height - 46 mm
Packaging data - Package weight - 250 g
Packaging data - Package width - 267 mm
Performance > Maximum transfer distance - 1 m
producer - D-Link
Producer product name - DEM-CB100S
ProductName - 100 cm 10GbE Direct Attach SFP+ Cable DEM-CB100S
ShortSummaryDescription - D-Link 100 cm 10GbE Direct Attach SFP+ Cable DEM-CB100S, 1 m, SFP+, SFP+
Stck_Kart - 10
Stck_Pal - 10
Storno - Y
Technical details > Connector type - Direct Attach Cable
Technical details > Gender - Male/Male
Technical details > Net weight - 0.10 kg
Technical details > Producer - D-Link
Technical details > Type - D-LINK DEM-CB100S, 10-GbE SFP+ 1m Direct Attach Cable
Technical details > Warranty - 12 month(s)
Title - D-Link 100 cm 10GbE Direct Attach SFP+ Cable DEM-CB100S
Type - Cable
URL - https://www.dlink.com/uk/en/products/dem-cb100s
vendpn - DEM-CB100S
Warranty - 12
WarrantyInfo -
Weight - 0,24
Weight & dimensions - Bending radius - 2.35 cm
