category - Liquid Cooling|Components|Radiators|280mm Radiators
Category_1 - Computer Cases and Cooling
Category_2 - Watercooling
code - 11928
ean - 4250197119283
EAN_code - 4250197119283
Manufacturer - Alphacool
Manufacturer_code - 11928

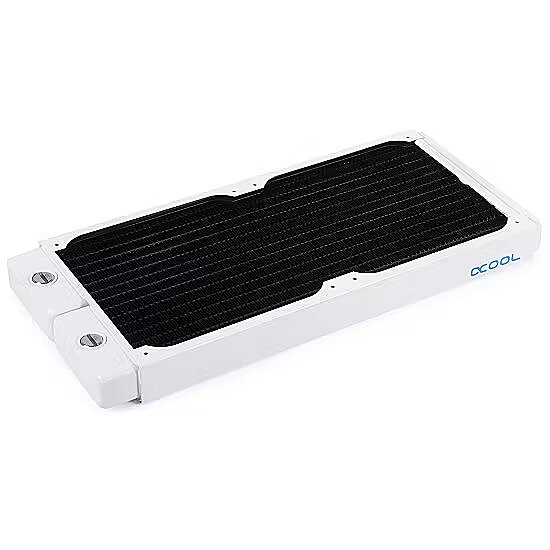

Name - Alphacool NexXxoS ST30 Full Copper 280mm Radiator V.2 - 280mm - white/black
name - Alphacool NexXxoS ST30 Full Copper Radiator V.2 - 280mm, weiß
Technical_details - NexXxoS ST30 Full Copper 280mm Radiator V.2 - White Special Edition 280mm The Alphacool NexXxoS V.2 radiator series represents the next generation of high-end solid copper radiators. They not only offer a chic design (White Special Edition), but also technical highlights such as B. the patented screw plugs that are flush with the radiator. As usual, Alphacool also uses pure copper for the NexXxoS V.2 radiators of the White Special Edition. The antechambers, the water channels and the cooling fins are made of copper and are a unique selling point worldwide. No other manufacturer relies on pure copper for all of these components. With a thermal conductivity of 400 W/mK for copper compared to 236 W/mK for aluminium, the winner is clear. In addition, there is the special fin density. Alphacool is one of the oldest water cooling companies and has performed countless lab tests. The result is a fin spacing of 15 FPI. This impedes the air flow relatively slightly, since the air can slide through without high pressure. However , the cooling performance does not suffer as a result, on the contrary. In order to use the airflow optimally, all cooling fins have small flaps. These are tiny wings that direct the airflow in the desired direction. In the case of the radiators, these are barely 1 mm high, but still ensure controlled air turbulence in order to increase cooling performance and minimize flow noise. All NexXxoS V.2 radiators of the White Special Edition use Alphacool's patented screw plugs. Anyone who has mounted a radiator on the front or in the ceiling of a case knows that protruding locking screws mean that the radiator cannot be placed flush. With the patented screw plugs, Alphacool offers an excellent solution. They are completely sunk into the radiator and are flush with its surface. As a result, nothing stands in the way of clean assembly. Of course, the radiators with the flat locking screws also look much more elegant. All variants of the NexXxoS V.2 of the White Special Edition radiators have two connection options for IN and OUT on one side. On the opposite side, the NexXxoS V.2 radiators also have a fill or vent port. Of course, this connection can also be used to drain the water circuit. Like the previous NexXxoS radiators, the NexXxoS V.2 of the White Special Edition offer special protection that prevents fan or assembly screws from being screwed in too deeply. Protective plates were placed under all mounting holes to prevent the screws from being screwed in too deeply. This protects the underlying cooling fins and water channels. Type: 280mm radiator Colour: white/black EAN: 4250197119283 Manufacturer No.: 11928 Type: Radiator Usage: for water cooling Heat sink material: copper Radiator size: 2x 140 mm Additional information: Connection thread size: 5x G1/4", fan thread: M3; pressure tested: 1.5 bar, fan slots: 2 on one side / 4 on both sides Dimensions: Overall | Width: 144mm x Height: 30mm x Depth: 316mm Weight: Total | 679 grams
Weight - 0,90
