ID: 1127787
Product code: EVGC021A2250
Can be ordered 4 units Availability: 14 days after order approval
Warranty: 2 years

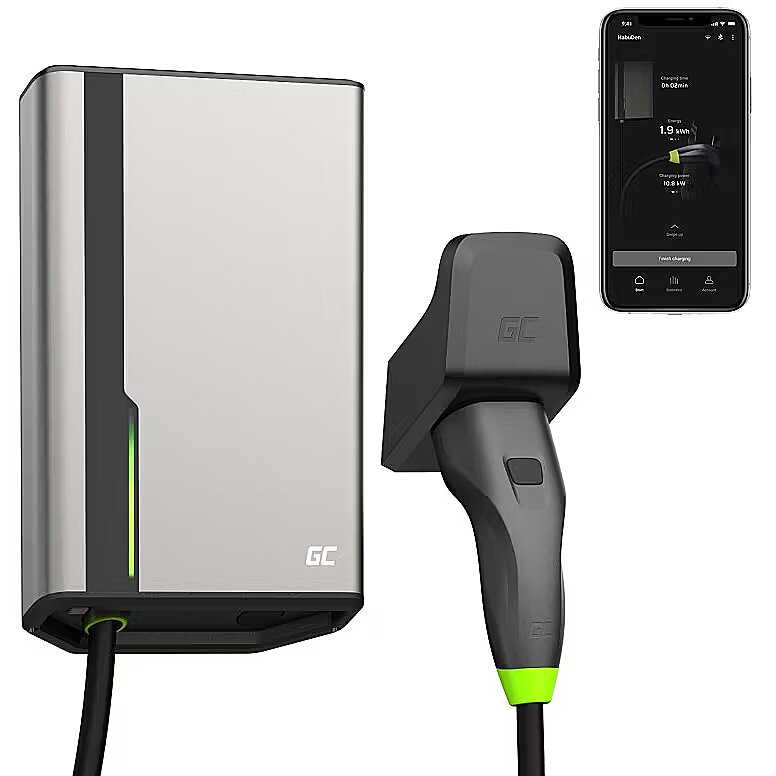

Green Cell EVGC021A2250 electric vehicle charging station Grey Aluminium Wall 3 Built-in display LED
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 02.12.2024
- Delivery to Omniva parcel machine free of charge: 02.12.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 02.12.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 02.12.2024
- Delivery to address in Riga 3.99 €: 02.12.2024
- Delivery to address in Latvia 6.99 €: 02.12.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 28.11.2024 after 15:00
More detailed specification
Category - Root/Accessories | Exploitation/Power supply/Alternatywne źródła energii/Ładowarki do samochodów elektrycznych
categoryPath - Electromobility/EV chargers
Certifications - IEC 62196, IEC 62752, IEC 60309, EN 300 220-1/2, EN 300 328, EN 301 489-1/17, EN 301 489-1/3, EN 301 489-1/52, EN 301 511
Control from the application on the phone - Yes
Design - Built-in display - Yes
Design - Cable colour - Black
Design - Display technology - LED
Design - Housing colour - Grey
Design - Housing material - Aluminium
Design - Integrated charging cable - Yes
Design - Integrated energy meter - Yes
Design - LED indicators - Activity
Design - LED indicators - Charging
Design - LED indicators - Error
Design - LED indicators - Fault
Design - LED indicators - Power
Design - Mounting type - Wall
dimensionalWeight - 7508
eanCode - 5904326374652
Eans - 5904326374652
Features - Certification - IEC 62196, IEC 62752, IEC 60309, EN 300 220-1/2, EN 300 328, EN 301 489-1/17, EN 301 489-1/3, EN 301 489-1/52, EN 301 511
Features - Direct current failure monitoring - Yes
Features - Firmware upgradeable - Yes
Features - International Protection (IP) code - IP54
Features - Mechanical impact protection code - IK10
Features - Over current protection - Yes
Features - Power source type - AC
Features - Vehicle charging standard - Mode 3
Features - Vehicle connection plug - Type 2
Features - Wi-Fi - Yes
Length - 5m
Manufacturer - Green Cell
Name - Green Cell HabuDen Wallbox 22kW 32A 5m Kabel Typ 2
name - HabuDen 5m
Plug type - Type 2
Power - 22kW
Power - Maximum charging power - 22000 W
Power - Maximum operating current (three-phase) - 32 A
Power - Maximum operating current per phase - 32 A
Power - Maximum operating power (single-phase) - 7.2 kW
Power - Maximum operating power (three-phase) - 22 kW
Power - Minimum operating power (single-phase) - 1.4 kW
Power - Number of phases - 3
Power - Single-phase output voltage supported - 230 V
Power - Three-phase output voltage supported - 400 V
Producer - Green Cell
producerCode - EVGC021A2250
ProducerCode - EVGC021A2250
Product code - EVGC021A2250
productName - Green Cell EVGC021A2250 electric vehicle charging station Grey Aluminium Wall 3 Built-in display LED
productSize - Normal
Prąd znamionowy - 32A
Remote communication - Bluetooth / WiFi
Safety - RCD-A 30mA AC + RDC-DD 6mA DC
ShortDescription - Inteligentna Stacja Ładowania EV z Aplikacją GC App Bluetooth WiFi
Size - 338 x 211 x 73 mm
sizeX - 520
sizeY - 190
sizeZ - 380
Technical details - Warranty period - 2 year(s)
Voltage - 1P 230 VAC / 3P 400 VAC
Warranty - 24 months
warrantyLength - 24
warrantyType - F
Weight - 5,51kg
weight - 5500
Weight & dimensions - Charging cable length - 5 m
Weight & dimensions - Depth - 73 mm
Weight & dimensions - Height - 338 mm
Weight & dimensions - Weight - 5.51 kg
Weight & dimensions - Width - 211 mm
Working temperature - -25°C +40°C
