Brand - ATEN
BrandPartCode - CS22U-AT
Category - KVM Switches
Design - Housing material - Plastic
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - No
dimensionalWeight - 432
Display - Built-in display - No
GTIN - 0132018257388
GTIN - 132018257388
GTIN - 0163120794393
GTIN - 163120794393
GTIN - 0172304249178
GTIN - 172304249178
GTIN - 0523160894833
GTIN - 523160894833
GTIN - 0644178244462
GTIN - 644178244462
GTIN - 0672792389016
GTIN - 672792389016
GTIN - 0672792398018
GTIN - 672792398018
GTIN - 0785307929383
GTIN - 785307929383
GTIN - 0791963145869
GTIN - 791963145869
GTIN - 0797864301960
GTIN - 797864301960
GTIN - 0803982761767
GTIN - 803982761767
GTIN - 0809185307078
GTIN - 809185307078
GTIN - 0809385156520
GTIN - 809385156520
GTIN - 0898029628189
GTIN - 898029628189
GTIN - 0999992833485
GTIN - 999992833485
GTIN - 0999993617084
GTIN - 999993617084
GTIN - 4052921379488
GTIN - 4710423775978
GTIN - 5052217087263
GTIN - 5052461626799
GTIN - 5053973656618
GTIN - 5054484128380
GTIN - 5054533128385
GTIN - 5054629093603
GTIN - 5054814450013
GTIN - 5055309628733
GTIN - 5055851124226
GTIN - 6727923980182
GTIN - 8944467743136
Logistics data - Harmonized System (HS) code - 85176200
Logistics data - Master (outer) case gross weight - 8.48 kg
Logistics data - Master (outer) case height - 330 mm
Logistics data - Master (outer) case length - 389 mm
Logistics data - Master (outer) case net weight - 6.04 kg
Logistics data - Master (outer) case width - 328 mm
Logistics data - Products per master (outer) case - 20 pc(s)

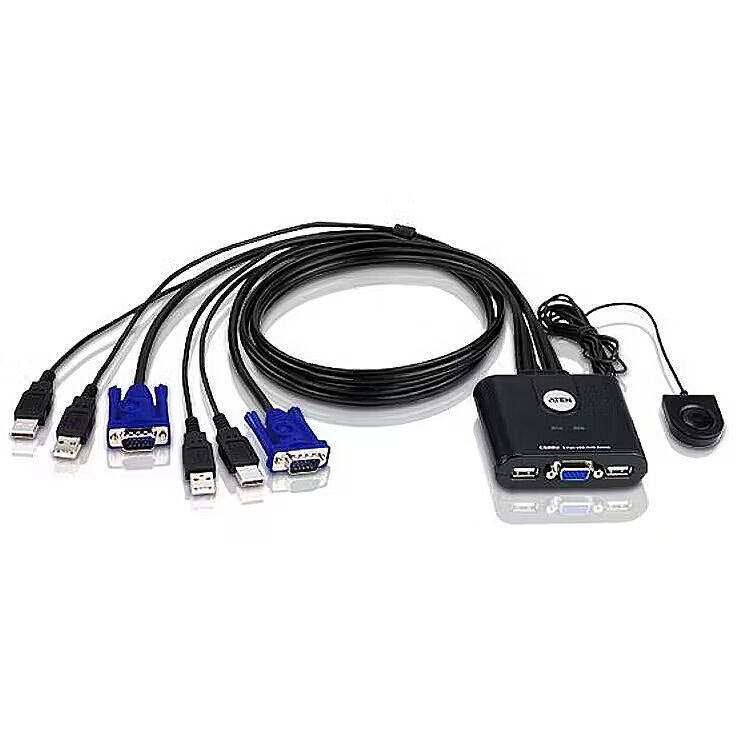

LongDesc - The CS22U is a 2-port USB Cable KVM Switch that provides a simple and quick method of selecting computers- a built-in remote port selector. This allows the CS22U unit to be hidden from sight, while the remote port selector can be placed conveniently on the desktop.1x CS22U 2-Port USB Cable KVM Switch with Remote Port Selector1x User Instructions
LongProductName - 2-Port USB VGA KVM Switch
LongSummaryDescription - ATEN 2-Port USB VGA KVM Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels. Product colour: Black, Housing material: Plastic. Power source: DC, Input voltage: 5 V, Power consumption (typical): 0.14 W. Width: 82.4 mm, Depth: 70.1 mm, Height: 24.6 mm
Operational conditions - Operating relative humidity (H-H) - 0 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 80%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 155 mm
Packaging data - Package height - 223 mm
Packaging data - Package weight - 400 g
Packaging data - Package width - 55 mm
Performance - DDC2B support - Yes
Performance - HD type - QXGA
Performance - Maximum resolution - 2048 x 1536 pixels
Ports & interfaces - Console ports - USB A
Ports & interfaces - Console ports - USB A, VGA (D-Sub)
Ports & interfaces - Console ports - VGA (D-Sub)
Ports & interfaces - Keyboard port type - USB
Ports & interfaces - Mouse port type - USB
Ports & interfaces - Number of computers controlled - 2
Ports & interfaces - USB 2.0 Type-A hub ports quantity - 2
Ports & interfaces - USB connector type - USB Type-A
Ports & interfaces - USB hub - Yes
Ports & interfaces - VGA (D-Sub) ports quantity - 2
Ports & interfaces - Video port type - VGA
Power - Input voltage - 5 V
Power - Power consumption (typical) - 0.14 W
Power - Power source - DC
producerCode - CS-22U
ProductName - 2-Port USB VGA KVM Switch
productName - ATEN 2-Port USB VGA KVM Switch
productSize - Normal
ShortSummaryDescription - ATEN 2-Port USB VGA KVM Switch, 2048 x 1536 pixels, QXGA, 0.14 W, Black
sizeX - 225
sizeY - 160
sizeZ - 60
Title - ATEN 2-Port USB VGA KVM Switch
URL - https://www.aten.com/eu/en/products/kvm/cable-kvm-switches/cs22u/
WarrantyInfo -
warrantyLength - 24
warrantyType - F
weight - 388
Weight & dimensions - Depth - 70.1 mm
Weight & dimensions - Height - 24.6 mm
Weight & dimensions - Weight - 302 g
Weight & dimensions - Width - 82.4 mm
