ID: 1019093
Product code: 52611
Can be ordered 2 units Availability: 14 days after order approval
Warranty: 2 years

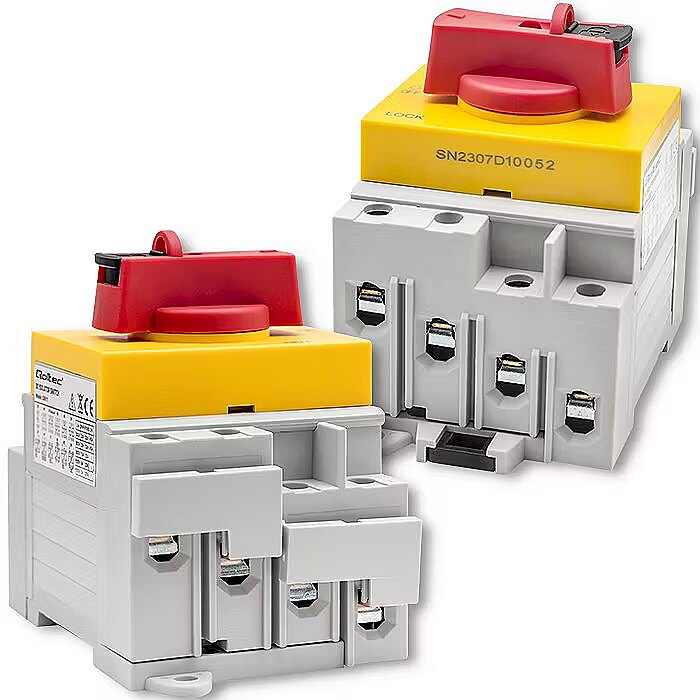

Qoltec 52611 DC isolator with locking function Main switch 1200V 32A 8kV 4P
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 08.10.2024
- Delivery to Omniva parcel machine free of charge: 08.10.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 08.10.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 08.10.2024
- Delivery to address in Riga 3.99 €: 08.10.2024
- Delivery to address in Latvia 6.99 €: 08.10.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 04.10.2024 after 15:00
More detailed specification
Accessories included -
Connectors - None
Description - Ideal for photovoltaic professionals and amateurs
The DC circuit breaker from Qoltec, also known as an isolating disconnect switch, acts as a so-called main circuit breaker. It prevents short circuits, overloads and damage to the installation. It is used to safely disconnect the power supply and reconnect the DC circuits, i.e. to disconnect PV modules from the inverter, for example, or to stop the inverter in the event of a fault, or to isolate the circuit when carrying out work in switchgear.
Switch lock function
The product has an ON/OFF switch and a LOCK locking device, which effectively prevents the installation from being accidentally switched on. The switch can be placed in a switchboard on a TH-35 rail or surface-mounted with screws.
Safe photovoltaic installation
Every photovoltaic installation works on direct current, so it is important to ensure that its operation is fault-free and safe. To guarantee reliable operation and adequate protection, the installation should be equipped with a photovoltaic DC isolator, a so-called DC circuit breaker. This is usually installed between the photovoltaic panels and the solar inverter to isolate the PV panels during any maintenance work, for example. This makes it safe to carry out any repairs, replacements of damaged plant components or system extensions.
dimensionalWeight - 138
dimension depth - 70 mm
dimension height - 100 mm
Dimensions - (D/L x W x H): 89 x 62 x 95 mm
dimension weight - 293 g
dimension width - 100 mm
ean - 5901878526119
Endurance test -
Features - Insulating material - PPO
Features - International Protection (IP) code - IP20
Features - Number of poles - 4
Features - Rated current - 32A
Features - Rated voltage - 1200V
Features - Starting current - 8KV
Features - Substance - PC + Silver alloy contact + copper fittings
Features - Working temperature (max) - 85 °C
Features - Working temperature (min) - -40℃
Fuse - No
guarantee - 24
guarantee_type - external
name - DC isolator with locking function 1200V 32A 8kV
Number of poles - 4
Operating temperature - -40C ~ +85C
Other features -
producer - Qoltec
producerCode - 52611
productName - Qoltec 52611 DC isolator with locking function | Main switch | 1200V | 32A | 8kV | 4P
productSize - Normal
Protection class - IP20
Rated current - 32 A
sizeX - 103
sizeY - 99
sizeZ - 68
vendpn - 52611
voltage (max.) - 1200 V
warrantyLength - 24
warrantyType - G
Weight - 0.264 kg
weight - 292
Weight & dimensions - Depth - 89 mm
Weight & dimensions - Height - 95 mm
Weight & dimensions - Weight - 264 g
Weight & dimensions - Width - 62 mm
