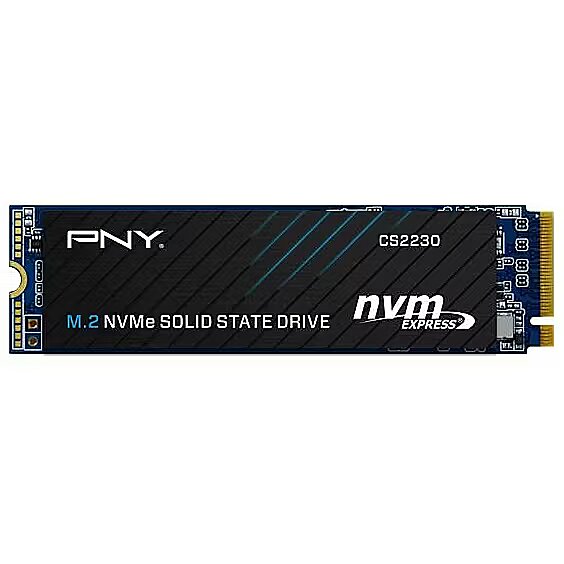

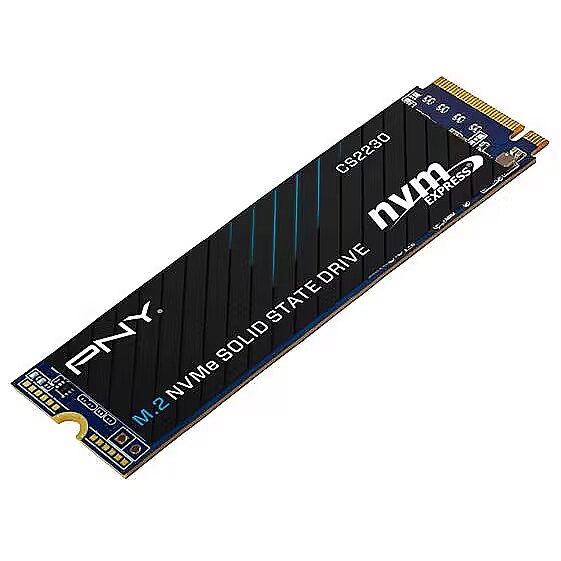

PNY Technologies CS2230, 1TB, M.2 Gen3 x4

Name: PNY Technologies CS2230, 1TB, M.2 Gen3 x4
Brand: PNY Technologies
SKU: 938432
Price: 70.32 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 938432 Product code: M280CS2230-1TB-RB

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

Dateks.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years

Compare

Main product parameters All parameters

Capacity: 1 TB
Type: NVMe
Read speed (sequential): 3300 MB/s
Write speed (sequential): 2600 MB/s
Form factor: M.2 80mm (2280)
Interface: PCIe 3.0 x4

Similar Products

Basic information
	This product PNY Technologies CS2230, 1TB, M.2 Gen3 x4	Crucial P3, 1TB, M.2 Gen3 x4	ADATA XPG GAMMIX S11, 1TB, M.2 Gen3 x4	Lexar NM620, 256GB, M.2 Gen3 x4	Samsung 990 PRO, 1TB, M.2 Gen4 x4
Show similar specs. Hide similar specs.	70.32 €	74.91 €	76.91 €	32.97 €	131.96 €
Capacity	1 TB	1 TB	1 TB	256 GB	1 TB
Type	NVMe	NVMe	NVMe	NVMe	NVMe
Read speed (sequential)	3300 MB/s	3500 MB/s	3350 MB/s	3000 MB/s	7450 MB/s
Write speed (sequential)	2600 MB/s	3000 MB/s	2800 MB/s	1300 MB/s	6900 MB/s
Functionality
Radiators	Nav	Nav	Ir	Nav	Nav
Lighting	Nav	Nav	Nav	Nav	Nav
Ports and equipment
Form factor	M.2 80mm (2280)	M.2 80mm (2280)	M.2 80mm (2280)	M.2 80mm (2280)	M.2 80mm (2280)
Interface	PCIe 3.0 x4	PCIe 3.0 x4	PCIe 3.0 x4	PCIe 3.0 x4	PCIe 4.0 x4
Interface	M.2	M.2	M.2	M.2	M.2
Specifikācija
Memory type	TLC (Triple-Level Cell)	QLC (Quad-Level Cell)	TLC (Triple-Level Cell)	TLC (Triple-Level Cell)	TLC (Triple-Level Cell)
Random Read IOPS	Not indicated	Not indicated	390K	92K	1.2m
Random Write IOPS	Not indicated	Not indicated	380K	240K	1.55M
Endurance (TBW)	Not indicated	220 TB	640 TB	125 TB	600 TB

Description

This PNY Technologies brand SSD has a 1 TB capacity and a M.2 80mm (2280) format.

This disc uses the latest generation compact M.2 port.

This SSD drive uses the latest NVME standard with PCIe interface, which allows simultaneous data transmission across multiple data lines. Thanks to this technology, the drive is ideally suited for those who work with large files, play computer games or deal with video editing.

3300 MB/s – this is the data reading speed that this SSD disk is capable of reaching. However, we must remember one crucial nuance - "fast" disks may not show the performance promised by the manufacturer if adequate cooling is not provided.

The write speed (Sequential write speed) of this SSD is 2600 MB/s. However, if adequate cooling is not provided, "fast" drives may not achieve the speeds guaranteed by the manufacturer.

The format of this SSD drive (physical size of the drive) is M.2 80mm (2280).

The SSD drive has a PCIe 3.0 x4 interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.

Basic information

Capacity 1 TB

The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.

Type : NVMe

Read speed (sequential) 3300 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 2600 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality

Radiators : Nav

Lighting : Nav

Ports and equipment

Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at Dateks.lv section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 3.0 x4

Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija

Memory type : TLC (Triple-Level Cell)

Random Read IOPS : Not indicated

Random Write IOPS : Not indicated

Endurance (TBW) : Not indicated

More detailed specification

Category - Root/Electronics/PC parts/Hard drives
Color - Black
Description - The PNY CS2230 M. 2 NVMe SSD is the perfect choice for upgrading NVMe from SATA-based solid state drives (SSDs) in an existing NVMe-enabled PC or MAC or laptop. The CS2230 is designed as a replacement for a SATA SSD to help with faster boot times, faster application launches and better overall system performance. With NVMe technology, you can do more in less time; booting, shutting down and loading applications up to 6 times faster than SATA SSDs. With no moving parts, the PNY CS2230 M. 2 NVMe SSD is highly durable, is less likely to fail and comes with a 5-year limited warranty or TBW.
dimensionalWeight - 61
dimension depth - 15 mm
dimension height - 150 mm
dimension weight - 30 g
dimension width - 100 mm
Disk type - SSD
Drive type - Internal
ean - 751492756271
Eans - 751492756271
Features - Component for - PC/Laptop
Features - ECC - Yes
Features - End-to-End Data Protection - Yes
Features - Hardware encryption - No
Features - Interface - PCI Express 3.0
Features - M.2 SSD size - 2280 (22 x 80 mm)
Features - Mean time between failures (MTBF) - 1000000 h
Features - Memory type - 3D NAND
Features - NVMe - Yes
Features - NVMe version - 1.4
Features - PCI Express interface data lanes - x4
Features - Read speed - 3300 MB/s
Features - S.M.A.R.T. support - Yes
Features - SSD capacity - 1 TB
Features - SSD form factor - M.2
Features - TRIM support - Yes
Features - Write speed - 2600 MB/s
Form factor (width) - M.2
guarantee - 60
guarantee_type - normal
HDD capacity - 1 TB
HDD interface - PCI-Express
Model - CS2230
name - Disc SSD 1TB M.2 2280 CS2230 M280CS2230-1TB-RB
Name - PNY XLR8 CS2230 M.2 PCIe NVMe 1TB
Operational conditions - Maximum operating temperature - 70 °C
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features -
Packaging data - Package type - Hanging box
producer - PNY
Producer - PNY
producerCode - M280CS2230-1TB-RB
ProducerCode - M280CS2230-1TB-RB
productName - PNY CS2230 M.2 1 TB PCI Express 3.0 3D NAND NVMe
productSize - Normal
Reading speed - 3300 MB/s
ShortDescription - SSD | 1TB | 3300/2600 MB/s | M.2 | PCIe 3.0 | NVMe
sizeX - 102
sizeY - 150
sizeZ - 20
vendpn - M280CS2230-1TB-RB
warrantyLength - 36
warrantyType - G
weight - 30
Weight & dimensions - Depth - 22 mm
Weight & dimensions - Height - 4 mm
Weight & dimensions - Weight - 6.6 g
Weight & dimensions - Width - 80 mm
Writing speed - 2600 MB/s
