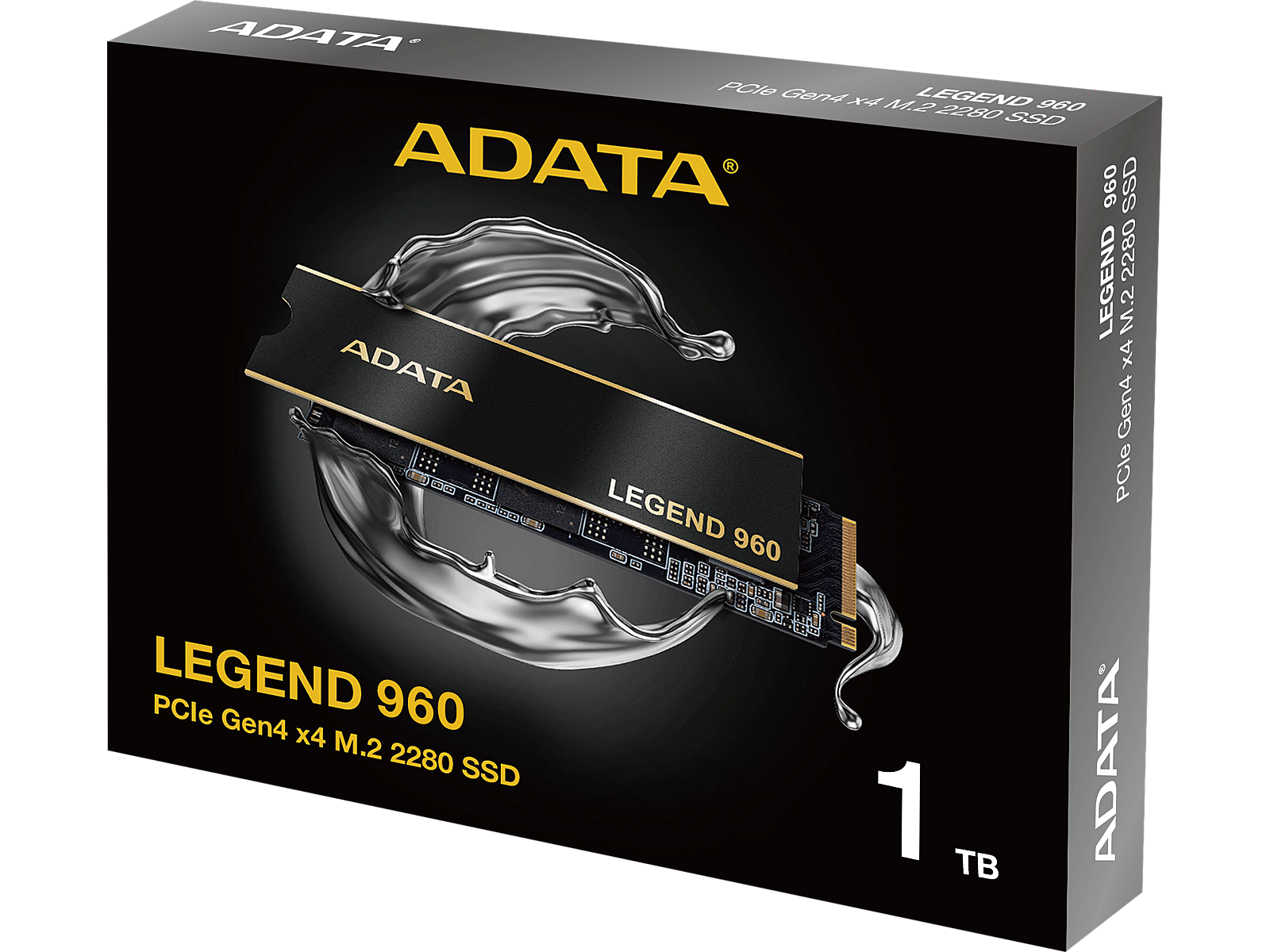

ADATA Legend 960, 1TB, M.2 Gen4 x4

Name: ADATA Legend 960, 1TB, M.2 Gen4 x4
Brand: ADATA
SKU: 890905
Price: 111.59 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 890905 Product code: ALEG-960-1TCS

Can be ordered 120 units Availability: 14 days after order approval

Warranty: 3 years

Compare

Delivery options More about shipping

Delivery to Smartpost free of charge: 10.12.2024
Delivery to Omniva parcel machine free of charge: 10.12.2024
Piegāde uz DPD Pickup Paku Skapi free of charge: 10.12.2024
Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.12.2024
Delivery to address in Riga 3.99 €: 10.12.2024
Delivery to address in Latvia 6.99 €: 10.12.2024
Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 06.12.2024 after 15:00

Main product parameters All parameters

Capacity: 1 TB
Type: NVMe
Read speed (sequential): 7400 MB/s
Write speed (sequential): 6000 MB/s
Form factor: M.2 80mm (2280)
Interface: PCIe 4.0 x4

Description

We offer to purchase a Adata M.2 80mm (2280) format SSD drive with a 1 TB capacity.

The disk is equipped with the currently most advanced and compact M.2 connection port.

This SSD drive uses the latest NVME standard with PCIe interface, which allows simultaneous data transmission across multiple data lines. Thanks to this technology, the drive is ideally suited for those who work with large files, play computer games or deal with video editing.

7400 MB/s – this is the data reading speed that this SSD disk is capable of reaching. However, we must remember one crucial nuance - "fast" disks may not show the performance promised by the manufacturer if adequate cooling is not provided.

The write speed (Sequential write speed) of this SSD is 6000 MB/s. However, if adequate cooling is not provided, "fast" drives may not achieve the speeds guaranteed by the manufacturer.

To ensure memory chips maintain a low temperature and assure constant performance over long periods of use, the disk equipment is equipped with a cooler or a radiator. However, even if you purchase a "fast" SSD without a built-in radiator, it's not critical - almost all motherboards (99%) already have an integrated M.2 slot cooler.

This is an SSD disk in the M.2 80mm (2280) format.

This SSD drive interface is PCIe 4.0 x4. If you insert this drive into an older interface slot, the speed of the drive will decrease, as the drive will not have sufficient data transfer speed (Bandwidth).

Basic information

Capacity 1 TB

The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.

Type : NVMe

Read speed (sequential) 7400 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 6000 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality

Radiators : Ir

Lighting : Nav

Ports and equipment

Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at Dateks.lv section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 4.0 x4

Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija

Memory type : TLC (Triple-Level Cell)

Random Read IOPS : 730K

Random Write IOPS : 610K

Endurance (TBW) : 780 TB

More detailed specification

Category - Root/Electronics/PC parts/Hard drives
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
Color - Not applicable
Depth - 80 mm
Description - LEGEND 960 PCIe Gen4 x4 M.2 2280 SSD With PCIe 4.0 sequential read/write speeds of 7400/6800 MB per second, the LEGEND 960 will help you create seamlessly on the latest Intel and AMD platforms.
dimensionalWeight - 45
dimension depth - 17 mm
dimension height - 105 mm
dimension weight - 33 g
dimension width - 130 mm
Disk type - SSD
Drive type - Internal
ean - 4711085937506
Eans - 4711085937506
EAN_code - 4711085937506
Features - Certification - CE, FCC, BSMI, KC, EAC, RCM, morocco, UKCA, RoHS
Features - Compatible products - PlayStation 5
Features - Component for - PC/Laptop
Features - Controller type - SMI SM2264
Features - ECC - Yes
Features - Hardware encryption - Yes
Features - Interface - PCI Express 4.0
Features - Mean time between failures (MTBF) - 2000000 h
Features - Memory type - 3D NAND
Features - NVMe - Yes
Features - NVMe version - 1.4
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 730000 IOPS
Features - Random write (4KB) - 610000 IOPS
Features - Read speed - 7400 MB/s
Features - Security algorithms - 256-bit AES
Features - SSD capacity - 1 TB
Features - SSD form factor - M.2
Features - TBW rating - 780
Features - Write speed - 6000 MB/s
Form factor (width) - M.2 2280
guarantee - 60
guarantee_type - normal
HDD capacity - 1 TB
HDD interface - PCI-Express
Height - 3.13 mm
Manufacturer - ADATA
Manufacturer_code - ALEG-960-1TCS
Mean time between failures (MTBF) - 2000000 h
Model - Legend 960
Name - ADATA Legend 960 1 TB - SSD - M.2, PCIe 4.0 x4
Name - Adata LEGEND 960 M.2 NVMe PCIe4x4 1TB
name - SSD drive Legend 960 1TB PCIe 4x4 7.4/6 GB/s M2
Operational conditions - Maximum operating temperature - 70 °C
Operational conditions - Operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features -
Other features - Cooling type - Heatsink
Packaging data - Package type - Box
producer - Adata
Producer - Adata
producerCode - ALEG-960-1TCS
ProducerCode - ALEG-960-1TCS
productName - ADATA LEGEND 960 M.2 1 TB PCI Express 4.0 3D NAND NVMe
productSize - Normal
Random read IOPS (max) - 730 K
Random write IOPS (max) - 610 K
Reading speed - 7400 MB/s
ShortDescription - SSD | 1TB| 7400/6000 MB/s | M.2 | 2280 | PCI-E Gen 4x4| NVMe | 256-bitowe szyfrowanie AES|gwarancja ograniczona parametrem TBW
sizeX - 130
sizeY - 17
sizeZ - 103
TBW - 780 TB
Technical_details - Type: SSD Colour: dark grey/gold EAN: 4711085937506 Manufacturer No.: ALEG-960-1TCS Series: LEGEND 960 Design: plug-in card Capacity: 1TB Interface: 1x M.2 (M.2 module key: M) Internal interface: PCIe 4.0 Data transfer rate: 7,400 MB/s : 6,000MB/s IOPS: 730,000 : 610,000 MTBF: 2,000,000 hours TBW: 780TB Controller: SMI SM2264 Feature: Heatsink, SLC Caching, HMB, LDPC ECC, AES 256-bit Encryption More information: Compatible with PlayStation 5 Dimensions: Width: 22mm x Height: 3.13mm x Depth/Length: 80mm Weight: 5 grams
vendpn - ALEG-960-1TCS
warrantyLength - 60
warrantyType - G
Weight - 0,03
Weight - 11 g
weight - 35
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 3.13 mm
Weight & dimensions - Weight - 11 g
Weight & dimensions - Width - 22 mm
Width - 22 mm
Writing speed - 6000 MB/s
