ID: 875660
Product code: SNV3410-800G
In stock 2 units
Warranty: 3 years

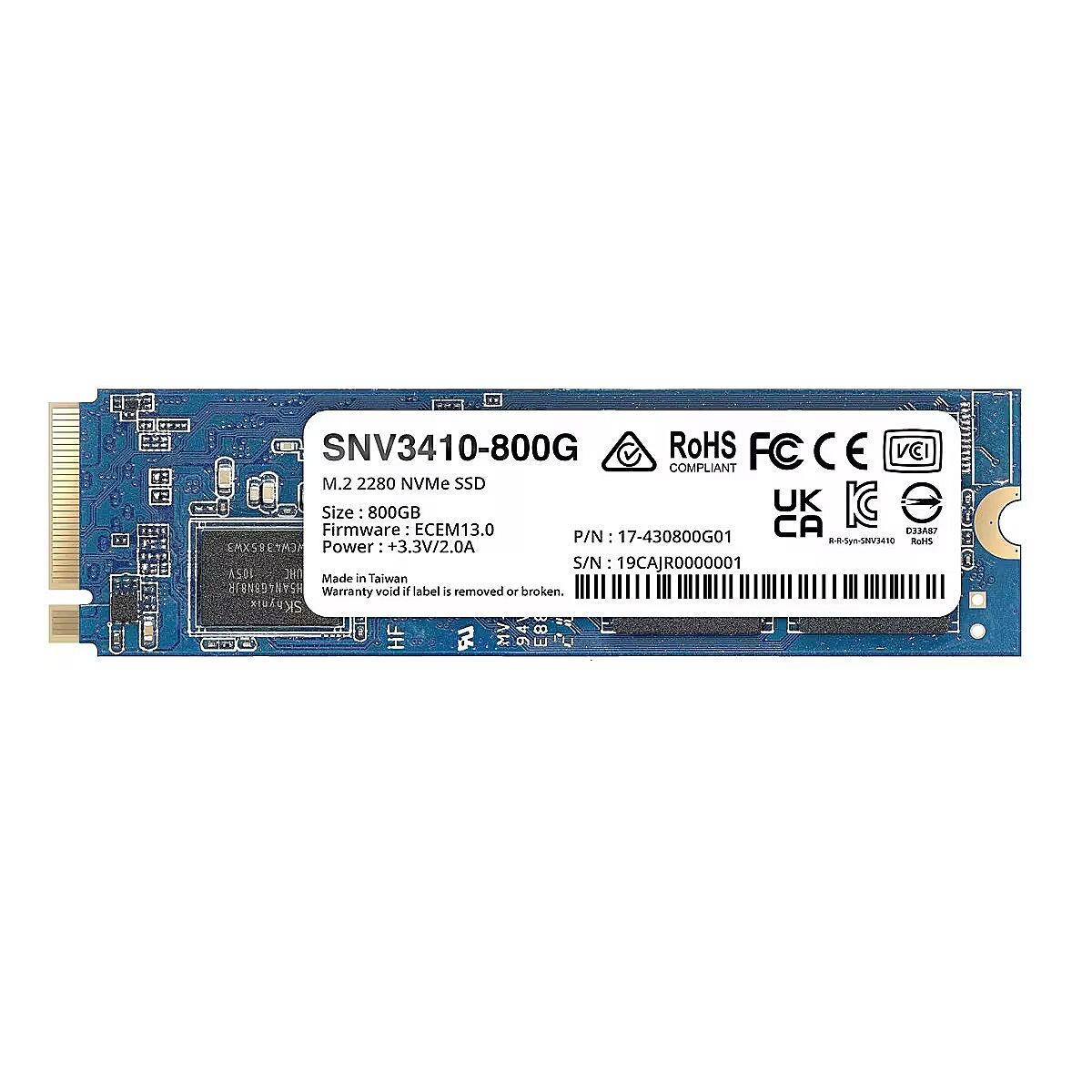

Synology SNV3410, 800GB, Gen3 X4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 29.11.2024
- Delivery to Omniva parcel machine free of charge: 29.11.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 29.11.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 29.11.2024
- Delivery to address in Riga 3.99 €: 29.11.2024
- Delivery to address in Latvia 6.99 €: 29.11.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Wednesday, 27.11.2024 after 15:00
Main product parameters All parameters
- Capacity: 800 GB
- Type: NVMe
- Read speed (sequential): 3100 MB/s
- Write speed (sequential): 1000 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 3.0 x4
Description
This Synology brand SSD has a 800 GB capacity and a M.2 80mm (2280) format.
The disk is equipped with the currently most advanced and compact M.2 connection port.
This SSD drive uses the latest NVME standard with PCIe interface, which allows simultaneous data transmission across multiple data lines. Thanks to this technology, the drive is ideally suited for those who work with large files, play computer games or deal with video editing.
3100 MB/s – this is the data reading speed that this SSD disk is capable of reaching. However, we must remember one crucial nuance - "fast" disks may not show the performance promised by the manufacturer if adequate cooling is not provided.
1000 MB/s - this SSD drive is capable of achieving such data writing speed. The speed parameters promised by the manufacturer may not be reached if the "fast" disk is not provided with an appropriate cooling system.
This is an SSD disk in the M.2 80mm (2280) format.
This SSD drive interface is PCIe 3.0 x4. If you insert this drive into an older interface slot, the speed of the drive will decrease, as the drive will not have sufficient data transfer speed (Bandwidth).
Basic information
Capacity
800 GB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVMe
Read speed (sequential)
3100 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
1000 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: Nav
Lighting
: Nav
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at Dateks.lv section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 3.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specifikācija
Memory type
: Nav norādīts
Random Read IOPS
: 400K
Random Write IOPS
: 70K
Endurance (TBW)
: 1022 TB
More detailed specification
Category Code - SSU
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
Color - Not applicable
Compatible with - M.2 SSD via M2D18 20 series: RS820RP+, RS820+ 19 series: DS2419+II, DS2419+, DS1819+ Series 18: RS2818RP+, RS2418RP+, RS2418+, DS1618+ M.2 SSD via M2D20 22 series: DS2422+ Series 21: RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+ Series 20: RS820RP+, RS820+ Series 19: DS2419+II, DS2419+, DS1819+ Series 18: RS2818RP+, RS2418RP+, RS2418+, DS1618+ M.2 SSD via E10M20-T1 22 series: DS2422+ Series 21: RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+ Series 20: RS820RP+, RS820+ Series 19: DS2419+II, DS2419+, DS1819+ Series 18: RS2818RP+, DS1618+ M.2 SSD via internal slot 22 series: DS1522+ 21 Series: DS1821+, DS1621xs+, DS1621+ 20 Series: DS1520+, DS920+, DS720+, DS420+ 19 series: DS1019+ 18 Series: DS918+
Depth - 80 mm
Description - Get the ultimate NAS/SAN performance SNV3400/3500 series NVMe SSDs are designed to work intelligently with Synology DiskStation Manager (DSM) to enhance I/O performance. The high-performance NVMe drives accelerate traditional hard drives, which are slower, but provide ample storage capacity for cost-effective upgrades to existing systems. Fast caching for 24/7 environments The SNV3400/3500 series SSDs are designed specifically for Synology systems to ensure maximum stability in operation. Each drive is designed for a maximum of 400,000 / 70,000 random read/write IOPS of a 4K sector over its lifetime. Endurance of up to 1022 TBW ensures long service life. Data integrity protection Comprehensive data protection and power loss protection (SNV3500 series only) ensures data integrity and helps prevent data corruption in the event of an unexpected failure. Enhanced analytics Synology Drives can provide more accurate information about the health of the drives in Synology DSM, taking into account the load placed on them over time. Timely notifications Plan ahead to ensure uninterrupted system performance and longevity with timely notifications. Optimal usage Easy monitoring enables optimal utilisation of each SSD. Designed specifically for Synology NAS servers Synology SNV3400/3500 series drives are thoroughly tested for use in our systems after every technical change.All firmware and components are strictly controlled. Intensive I/O load testing, power-off and power-on cycle checking, and temperature resistance testing ensure that all products meet the strictest quality and reliability standards.
Description - SYNOLOGY SNV3400 Serie M.2 NVMe SSD
dimensionalWeight - 53
dimension depth - 20 mm
dimension height - 95 mm
Dimensions - 3.5 mm x 22 mm x 80 mm
dimension weight - 40 g
dimension width - 140 mm
Disk type - SSD
Drive type - Internal
ean - 4711174724604
EAN - 4711174724604
EAN_code - 4711174724604
Features - Component for - Laptop
Features - End-to-End Data Protection - Yes
Features - Interface - PCI Express 3.0
Features - M.2 SSD size - 2280 (22 x 80 mm)
Features - NVMe - Yes
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 400000 IOPS
Features - Random write (4KB) - 70000 IOPS
Features - Read speed - 3100 MB/s
Features - SSD capacity - 800 GB
Features - SSD form factor - M.2
Features - Write speed - 1000 MB/s
Form Factor - M.2
Form factor (width) - M.2 2280
Full Description Line - SSD series SNV3400|800GB|Form Factor M.2|PCIE|NVMe|Write speed 750 MBytes/sec|Read speed 3000 MBytes/sec|TBW 491 TB|MTBF 1800000 hours
Gross Weight Kg - 0,2
guarantee - 60
guarantee_type - normal
HDD capacity - 800 GB
HDD interface - PCI-Express
Height - 3.5 mm
Manufacturer - Synology
Manufacturer Code - SNV3410-800G
Manufacturer Name - Synology
Manufacturer_code - SNV3410-800G
Model - SNV3410
MTBF - 1.8e+006 hours
name - Disc SSD SATA 800GB M2 2280 SNV3410-800G
Name - Synology SNV3410-800G 800GB, SSD (PCIe 3.0 x4, NVMe, M.2 2280)
NVMe - Yes
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features -
PCIE Interface - Yes
Power - Power consumption (idle) - 1.6 W
Power - Power consumption (read) - 5.5 W
Power - Power consumption (write) - 4.6 W
producer - Synology
producerCode - SNV3410-800G
productName - Synology SNV3410-800G internal solid state drive M.2 800 GB PCI Express 3.0 NVMe
productSize - Normal
Random read IOPS (max) - 225 K
Random write IOPS (max) - 45 K
Reading speed - 3000 MB/s
Read speed - 3000 MBytes/sec
Shipping Box Depth Shipping/Package Box Dimensions - 14 cm
Shipping Box Height Shipping/Package Box Dimensions - 2 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.04 kg
Shipping Box Width Shipping/Package Box Dimensions - 9.5 cm
Short description - Synology NAS SSD M.2 NVMe 800GB SNV3410-800G
sizeX - 140
sizeY - 20
sizeZ - 96
SSD Capacity - 800GB
SSD series - SNV3400
TBW - 491 TB
TBW - 491 TB
Technical_details - The Synology SNV3000 series NVMe SSD are designed for intensive caching workloads in 24/7 multi-user environments. With its robust performance, it accelerates the system and processing of frequently used data, optimizes data storage and minimizes interruptions on Synology NAS. The Synology SNV3000 series has built-in end-to-end data protection, protecting data integrity throughout the transfer. Full integration with Synology DiskStation Manager (DSM) allows SNV3000 series endurance analytics to be calculated based on actual workloads. Item No.: 1828059 Type SSD EAN 4711174724604 Manufacturer no. SNV3410-800G SNV3000 series Plug-in card design Capacity 800GB Interface 1x M.2 Internal interface PCIe 3.0 Read data transfer rate 3,100 MB/s Write 70,000 Power consumption operation 5.5 W IOPS Read 400,000 MTBF 1,800,000 hours TBW 1,022TB Feature end-to-end data protection Further information Compatible Synology systems: Series 21: DS1621xs+, DS1821+, DS1621+; Series 20: DS1520+, DS920+, DS720+, DS420+; Series 19: DS1019+; Series 18: DS918+; Incompatible Synology systems: Series 19: RS1619xs+ Note DSM should be updated to version 6.2.3-25426 or later before installing the drive (only applies to systems with DSM) Dimensions Width: 22mm x Height: 3.5mm x Depth/Length: 80mm
Unit Box Height - 0.02
Unit Box Length - 0.14
Unit Box Width - 0.095
Unit Brutto Volume - 0.000266 cubm
Unit Gross Weight - 0.04 kg
Unit Net Weight - 0.03 kg
Vendor Homepage - www.synology.com/en-global/products/solid_state_drives/SNV3000#specs
vendpn - SNV3410-800G
Warranty - 60 months
warrantyLength - 60
warrantyType - F
Weight - 0,04
weight - 36
Width - 22 mm
Write speed - 750 MBytes/sec
Writing speed - 750 MB/s
