ID: 781466
Product code: SNV3510-800G
Can be ordered 6 units Availability: 14 days after order approval
Warranty: 3 years

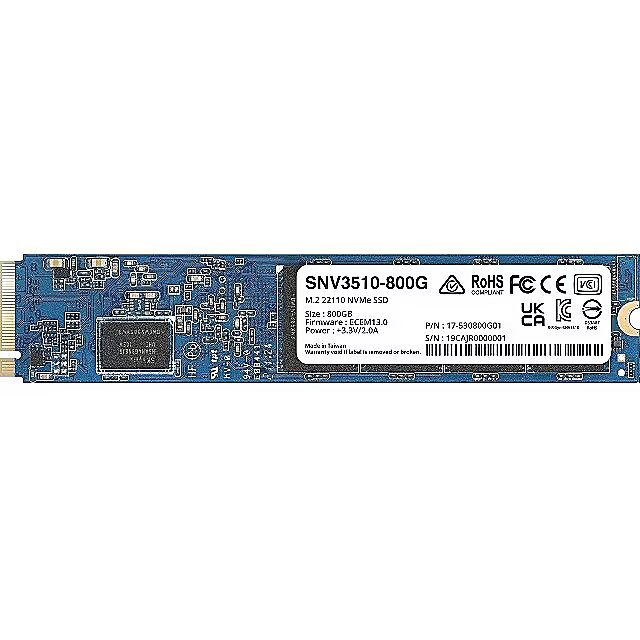

Synology SNV3510, 800GB, Gen3 X4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 11.12.2024
- Delivery to Omniva parcel machine free of charge: 11.12.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 11.12.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 11.12.2024
- Delivery to address in Riga 3.99 €: 11.12.2024
- Delivery to address in Latvia 6.99 €: 11.12.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 09.12.2024 after 15:00
Main product parameters All parameters
- Capacity: 800 GB
- Type: NVMe
- Read speed (sequential): 3100 MB/s
- Write speed (sequential): 1000 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 3.0 x4
Description
We offer to purchase a Synology M.2 80mm (2280) format SSD drive with a 800 GB capacity.
This SSD drive has a compact and modern M.2 connector.
This is a fast-acting NVME SSD drive, based on PCIe technology. It allows data to be transmitted in parallel over multiple channels, ensuring excellent performance. This type of drive is perfectly suited for activities such as processing large files, gaming, and video editing, where maximum data transmission speed is required.
This SSD disk read speed (Sequential read speed) is 3100 MB/s. Keep in mind that "fast" disks without a proper cooling solution may not reach the speeds indicated by the manufacturer.
The writing speed for this SSD disk reaches 1000 MB/s. Without a suitable cooling mechanism, "fast" disks may not be able to achieve the performance indicators promised by the manufacturer.
This SSD drive has an M.2 80mm (2280) format.
The SSD drive has a PCIe 3.0 x4 interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.
Basic information
Capacity
800 GB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVMe
Read speed (sequential)
3100 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
1000 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: Nav
Lighting
: Nav
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at Dateks.lv section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 3.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specifikācija
Memory type
: Nav norādīts
Random Read IOPS
: 400K
Random Write IOPS
: 70K
Endurance (TBW)
: 1022 TB
More detailed specification
Category Code - SSU
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
Color - Not applicable
Compatible with - M.2 SSD przez M2D20 Seria SA: SA3600, SA3400 Seria 22: DS3622xs+, DS2422+ Seria 21: RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+ Seria 20: RS820RP+, RS820+ Seria 19: DS2419+II, DS2419+, DS1819+ Seria 18: RS3618xs, RS2818RP+, RS2418RP+, RS2418+, DS3018xs, DS1618+ Seria 17: RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xsII, DS3617xs M.2 SSD przez E10M20-T1 Seria SA: SA3600, SA3400 Seria 22: DS3622xs+, DS2422+ Seria 21: RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+ Seria 20: RS820RP+, RS820+ Seria 19: DS2419+II, DS2419+, DS1819+ Seria 18: RS3618xs, RS2818RP+, DS3018xs, DS1618+ Seria 17: RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xsII, DS3617xs"
Depth - 110 mm
Description - SNV3510 Get the ultimate NAS/SAN performance SNV3400/3500 series NVMe SSDs are designed to work intelligently with Synology DiskStation Manager (DSM) to enhance I/O performance. High-performance NVMe drives accelerate traditional hard drives, which are slower, but provide ample storage capacity for cost-effective upgrades to existing systems.
Description - SYNOLOGY SNV3500 Serie M.2 NVMe SSD
dimensionalWeight - 53
dimension depth - 25 mm
dimension height - 95 mm
Dimensions - 4.5 mm x 22 mm x 110 mm
dimension weight - 43 g
dimension width - 140 mm
Disk type - SSD
Drive type - Internal
ean - 4711174724628
EAN - 4711174724628
EAN_code - 4711174724628
Features - Component for - NAS
Features - Interface - PCI Express 3.0
Features - Mean time between failures (MTBF) - 1800000 h
Features - NVMe - Yes
Features - Random read (4KB) - 400000 IOPS
Features - Random write (4KB) - 70000 IOPS
Features - Read speed - 3100 MB/s
Features - SSD capacity - 800 GB
Features - SSD form factor - M.2
Features - Write speed - 1000 MB/s
Form Factor - M.2
Form factor (width) - M.2 22110
Full Description Line - 800GB|Form Factor M.2|PCIE|NVMe|Write speed 1000 MBytes/sec|Read speed 3100 MBytes/sec|TBW 1.022 TB|MTBF 1800000 hours
Gross Weight Kg - 0,2
guarantee - 60
guarantee_type - normal
HDD capacity - 800 GB
HDD interface - PCI-Express
Height - 4.5 mm
Logistics data - Harmonized System (HS) code - 84717070
Manufacturer - Synology
Manufacturer Code - SNV3510-800G
Manufacturer Name - Synology
Manufacturer_code - SNV3510-800G
Model - SNV3510
MTBF - 1.8e+006 hours
name - SSD drive SATA 800GB M2 22110 SNV3510-800G
Name - Synology SNV3510-800G 800 GB (PCIe 3.0 x4, NVMe, M.2 22110)
NVMe - Yes
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features -
Other features - Compliance certificates - RoHS
PCIE Interface - Yes
Power - Operating voltage - 3.3 V
Power - Power consumption (idle) - 1.7 W
Power - Power consumption (read) - 6.2 W
Power - Power consumption (write) - 5.1 W
producer - Synology
producerCode - SNV3510-800G
productName - Synology SNV3510 800 GB M.2 PCI Express 3.0 NVMe
productSize - Normal
Random read IOPS (max) - 400 K
Random write IOPS (max) - 70 K
Reading speed - 3100 MB/s
Read speed - 3100 MBytes/sec
Shipping Box Depth Shipping/Package Box Dimensions - 14 cm
Shipping Box Height Shipping/Package Box Dimensions - 2 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.05 kg
Shipping Box Width Shipping/Package Box Dimensions - 10 cm
Short description - Synology NAS SSD M.2 NVMe 800GB SNV3510-800G Power Loss Protection
sizeX - 140
sizeY - 20
sizeZ - 95
SSD Capacity - 800GB
Sustainability - Sustainability compliance - Yes
TBW - 1.022 TB
TBW - 1.022 TB
Unit Box Height - 0.02
Unit Box Length - 0.14
Unit Box Width - 0.1
Unit Brutto Volume - 0.00028 cubm
Unit Gross Weight - 0.05 kg
Unit Net Weight - 0.04 kg
Vendor Homepage - www.synology.com/en-global/products/solid_state_drives/SNV3000#specs
vendpn - SNV3510-800G
Warranty - 60L months
warrantyLength - 60
warrantyType - F
Weight - 0,05
weight - 40
Weight & dimensions - Depth - 110 mm
Weight & dimensions - Height - 4.5 mm
Weight & dimensions - Width - 22 mm
Width - 22 mm
Write speed - 1000 MBytes/sec
Writing speed - 1000 MB/s
