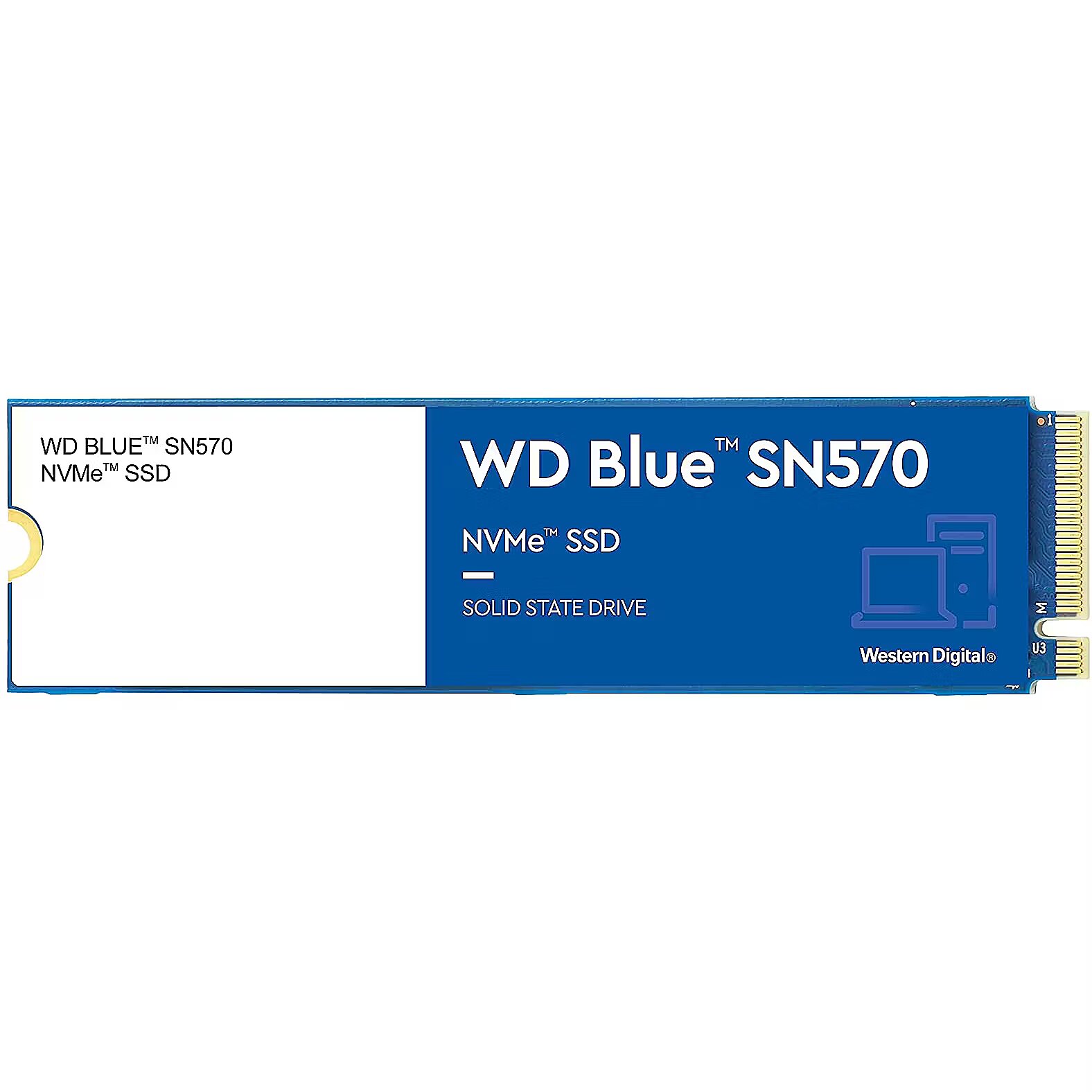

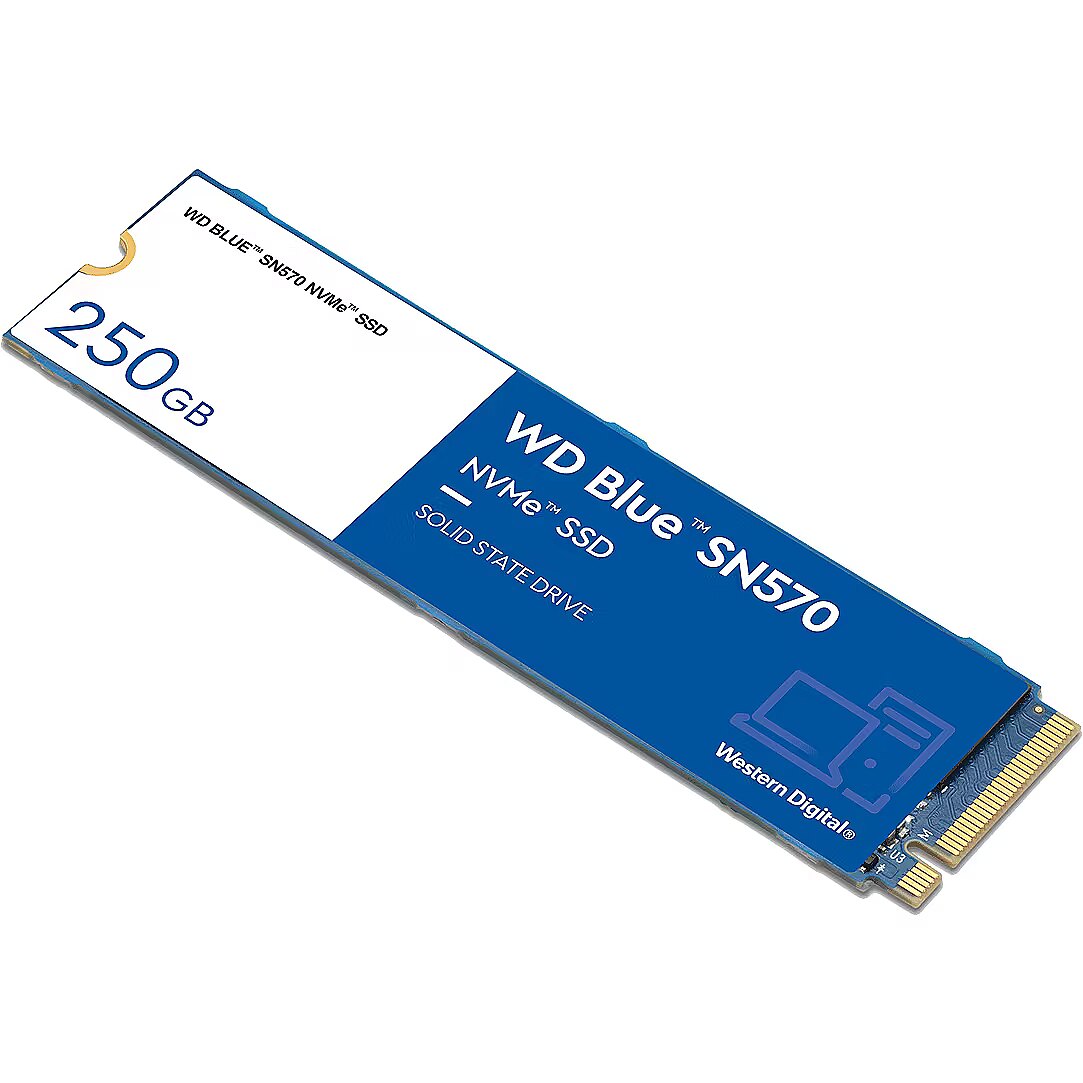

Western Digital Blue SN570, 250GB, M.2 Gen3 x4

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 769362 Product code: WDS250G3B0C
Can be ordered 105 units Availability: 14 days after order approval
Warranty: 3 years
50.46 €
Delivery options More about shipping
  • Delivery to Smartpost free of charge: 10.12.2024
  • Delivery to Omniva parcel machine free of charge: 10.12.2024
  • Piegāde uz DPD Pickup Paku Skapi free of charge: 10.12.2024
  • Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.12.2024
  • Delivery to address in Riga 3.99 €: 10.12.2024
  • Delivery to address in Latvia 6.99 €: 10.12.2024
  • Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 06.12.2024 after 15:00
Main product parameters All parameters
  • Capacity: 250 GB
  • Type: NVMe
  • Read speed (sequential): 3300 MB/s
  • Write speed (sequential): 1200 MB/s
  • Form factor: M.2 80mm (2280)
  • Interface: PCIe 3.0 x4
Description

We offer to purchase a Western Digital M.2 80mm (2280) format SSD drive with a 250 GB capacity.

This SSD drive has a compact and modern M.2 connector.

This is a fast-acting NVME SSD drive, based on PCIe technology. It allows data to be transmitted in parallel over multiple channels, ensuring excellent performance. This type of drive is perfectly suited for activities such as processing large files, gaming, and video editing, where maximum data transmission speed is required.

The read speed for this SSD drive reaches 3300 MB/s. However, it's crucial to note - if the "fast" drives are not provided with adequate cooling, they may not be able to operate at the speed indicated by the manufacturer.

The write speed (Sequential write speed) of this SSD is 1200 MB/s. However, if adequate cooling is not provided, "fast" drives may not achieve the speeds guaranteed by the manufacturer.

The format of this SSD drive (physical size of the drive) is M.2 80mm (2280).

The SSD drive has a PCIe 3.0 x4 interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.

Basic information
Capacity 250 GB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type : NVMe
Read speed (sequential) 3300 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 1200 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality
Radiators : Nav
Lighting : Nav
Ports and equipment
Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at Dateks.lv section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 3.0 x4
Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija
Memory type : TLC (Triple-Level Cell)
Random Read IOPS : 190K
Random Write IOPS : 210K
Endurance (TBW) : 150 TB
More detailed specification
ARTIKEL1 - WD 250GB BLUE NVME SSD M.2 PCIE
ARTIKEL2 - GEN3 X4 5Y WARRANTY SN570
Box Weight Brutto (kg) - 0.027 kg
Category - Datortehnika :: Datoru komponentes :: SSD diski
category - PC Components|Drives|Solid State Drives (SSDs)|M.2
Category - Root/Electronics/PC parts/Hard drives
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
Certifications - FCC, UL, TUV, KC, BSMI, VCCI
Code - WDS250G3B0C
code - WDS250G3B0C
Color - Not applicable
Depth - 80 mm
Depth (mm) - 80 mm
Desc - Tips: SSD, Apjoms: 250 GB, Izmērs: M.2, Savietojamība: PCIe NVMe 3.0 x4, Rakstīšanas ātrums: 1200Mb/s, Lasīšanas ātrums: 3300 Mb/s, Garantija: 2 gadi
Description - Pobudź wyobraźnię zainspiruj się
Żyj chwilą i twórz to, co nieosiągalne, dzięki WD Blue SN570 NVMe SSD. Ten potężny dysk wewnętrzny zapewnia 5-krotnie większą prędkość niż w przypadku naszych najlepszych dysków SSD SATA, aby umożliwić pobudzenie wyobraźni i uchronić Cię przed opóźnieniami w pracy komputera i długim czasem ładowania. Rozbudź wyobraźnię
Rozbudź w sobie kreatywność, korzystając z oferty miesięcznego członkostwa w Adobe Creative Cloud zapewniającego dostęp do najlepszych na świecie aplikacji i usług dla twórców, takich jak Adobe Photoshop, Illustrator, Lightroom, Premiere Pro i InDesign.4 Popraw wydajność
Zbuduj idealne narzędzie do tworzenia. Unowocześnij swój system lub zoptymalizuj kolejny złożony przez siebie komputer dyskiem o formacie M.2 2280 typu slim. Wystarczy gniazdo NVMe. Żyj chwilą
Uwolnij wyobraźnię, twórz szybciej i oszczędzaj energię. Szybkość odczytu do 3500 MB/s3 (modele 500 GB 2 TB1) pozwala systemowi pracować pięciokrotnie szybciej niż nasze najlepsze dyski SATA SSD, aby nic nie przeszkadzało Ci w twórczej pracy. Norma niezawodności
Twoje materiały są dla nas cenne. Dzięki wyjątkowym funkcjom WD Blue, zapewniającym niezawodność, ochronisz swoje materiały i nie będziesz obawiać się o ich utratę. Zyskaj większe poczucie bezpieczeństwa
Pracuj bardziej pewnie i twórz idealne projekty, dzięki dostępnemu do pobrania oprogramowaniu Western Digital SSD Dashboard2, które pozwala monitorować stan dysku oraz kontrolować ilość dostępnego miejsca, temperaturę itp. Zaoszczędź miejsce
Zadbaj o wysoką wydajność swojego niewielkiego komputera, wyposażając go w jednostronny dysk SSD M.2 2280 PCIe Gen3 x4 NVMe. Zadbaj o dobrą organizację
Sporządzaj kopie zapasowe zdjęć, filmów i innych plików osobistych za pomocą dołączonego oprogramowania Acronis True Image dla Western Digital.
Device Location - Plug-in Module
dimension depth - 25 mm
dimension height - 120 mm
dimension weight - 40 g
dimension width - 100 mm
Disk type - SSD
Drive type - Internal
EAN - 718037887234
ean - 0718037887234
ean - 718037887234
EANCode - 0718037887234
Eans - 0718037887234
EAN_code - 0718037887234
External Color - Blue
Flash Memory Cell Technology - Triple-Level Cell
Form Factor - M.2 (2280)
Form factor (width) - M.2 2280
Gewicht - 0.04
Gross Weight Kg - 0,07
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
guarantee - 60
guarantee_type - normal
HDD capacity - 250 GB
HDD interface - PCI-Express
Height - 2.38 mm
Height (mm) - 2.38 mm
HERSTELLER - WESTERN DIGITAL
HSTNUMMER - WDS250G3B0C
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/220615160015184253.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/220615160015206584.jpg
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_87916_1.jpg
Included Accessories - Īsa lietotāja rokasgrāmata
LargeDescHTML -  Spark Imagination—Inspire Your CreativityStay in the moment and create beyond your expectations with the WD Blue SN570 NVMe SSD. This powerful internal drive delivers up to 5X the speed of our best SATA SSDs so you can let your imagination flow and worry less about PC lag or load times.Spark Imagination
Inspire creativity with a one-month membership to Adobe Creative Cloud offering access to some of the world’s best creative apps and services such as Adobe Photoshop, Illustrator, Lightroom, Premiere Pro and InDesign.4Tune Up Your Performance
Build your ideal creation engine. Upgrading your system or optimizing your next custom build with the slim M.2 2280 form factor. All you need is an NVMe™ slot.Stay in the Moment
Keep your imagination flowing as you create faster while maintaining low power consumption. With read speeds up to 3,500 MB/s3 (500GB – 1TB1 models), your system can run up to 5X faster than our best SATA SSDs so you can stay in your creative moment.A Standard for Reliability
We value your content. That’s why the WD Blue reliability features help protect your content so you can stress less about losing your brilliant work.Get Extra Peace of Mind
Work with extra confidence and keep your projects on point as the downloadable Western Digital SSD Dashboard2 helps you monitor your drive’s health, available space, temperature and more.Save on Space
Pack a lot of performance into your small-form factor PC with a single-sided M.2 2280 PCIe® Gen3 x4 NVMe™ SSD.Stay Organized
Back up your photos, videos, and other personal files with included Acronis® True Image™ for Western Digital software.
Manufacturer - Western Digital
Manufacturer Code - WDS250G3B0C
Manufacturer Name - Western Digital
Manufacturer_code - WDS250G3B0C
Maximum Non-Operating Ambient Temperature - 85 °C
Maximum Operating Ambient Temperature - 70 °C
Maximum Power Consumption - 3.5 W
Maximum Random Read Rate - 190000 IOPS
Maximum Random Write Rate - 210000 IOPS
Maximum Sequential Read Rate - 3500 MB/s
Maximum Sequential Write Rate - 1200 MB/s
Mean Time Between Failures - 1500000 hr
Memory Technology - NAND Flash
Minimum Non-Operating Ambient Temperature - -40 °C
Minimum Operating Ambient Temperature - 0 °C
Minimum Power Consumption - 5 mW
Model - Blue SN570
name - Disc SSD Blue 250GB SN570 2280 NVMe M.2 Gen3
Name - WD Blue SN570 250 GB, SSD (blue/white, PCIe 3.0 x4, NVMe, M.2 2280)
Name - WD Blue SN570 M.2 PCIe NVMe 250GB
name - Western Digital Blue SN570 NVMe M.2 SSD, PCIe 3.0 M.2 Typ 2280 - 250 GB
Name - Western Digital SN570 250GB Blue
Nominal Weight - 6.5 g
Other features -
Package Type - Box
Packs in Box - 1
Pack Weight Brutto (kg) - 0.027 kg
Pack Weight Netto (kg) - 0.007 kg
Pieces in pack - 1
Producer - WD
producer - Western Digital
ProducerCode - WDS250G3B0C
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=211026130242483839&THEME=asbis&LANG=lv
ProductCategory - SSD
ProductCode - WDS250G3B0C
ProductDescription - SSD WD Blue (M.2, 250GB, PCIe Gen3)
ProductType - SSD Client
Random read IOPS (max) - 190 K
Random write IOPS (max) - 210 K
Reading speed - 3300 MB/s
Retail Packaging Net Weight Carton - 0 kg
Retail Packaging Net Weight Plastic - 0 kg
Shock Tolerance Operating - 1500G @ 0.5ms
Short description - SSD M.2 (2280) 250GB WD Blue SN570 (PCIe/NVMe)
ShortDescription - SSD | 250GB | 3300/1200 MB/s | M.2 | 2280 | PCIe 3.0 | NVMe
Start / Stop Cycles - 600000 cycles
Stck_Kart - 0
Stck_Pal - 0
Storage Capacity - 250 GB
Storno - Y
Supports Data Channel - PCIe NVMe 3.0 x4
TBW - 150 TB
Technical_details - Blue SN570 250GB, SSD The WD Blue SN570 NVMe SSD achieves up to five times the speed of WD's best SATA SSDs, with a read speed of 3,300 MB/s, so you can let your imagination run free and worry less about PC lags or - have to make loading times. Built to last, the WD Blue SN570 offers reliable data protection while keeping storage health under control with the downloadable Western Digital SSD dashboard. Whether you're working on your next passion project or processing large amounts of data, the WD Blue SN570 in the M.2 2280 form factor certainly won't let you down! Type: SSD Colour: blue/white EAN: 0718037887234 Manufacturer No.: WDS250G3B0C Series: WD Blue SN570 Design: plug-in card Capacity: 250GB Interface: 1x M.2 (M.2 module key: M) Internal interface: PCIe 3.0 Data transfer rate: Read | 3,300MB/s Data transfer rate: Write | 1,200MB/s Chip type: TLC Power Consumption: Operation | 3.5W Power Consumption: Quiet | 90mW Power Consumption: Sleep | 5mW IOPS: Read | 190,000 IOPS: Write | 210,000 MTBF: 1,500,000 hours TBW: 150TB Dimensions: Width: 22mm x Height: 2.38mm x Depth/Length: 80mm Weight: 7 grams
Total Bytes Written (TBW) - 150 TB
Vendor - WESTERN DIGITAL
vendpn - WDS250G3B0C
Vibration Tolerance Operating - 5G @ 10-2000Hz
Vibration Tolerance Storage - 4.9G @ 7-800Hz
Warranty Products Returnable - Yes
Warranty Term (month) - 60 mēneši
Warranty validation Criteria - Serial Number
Weight - 0,04
Weight - 6.5 kg
Width - 22 mm
Width (mm) - 22 mm
Writing speed - 1200 MB/s
