ID: 738530
Product code: ZP500GM3A023
Can be ordered 111 units Availability: 14 days after order approval
Warranty: 3 years

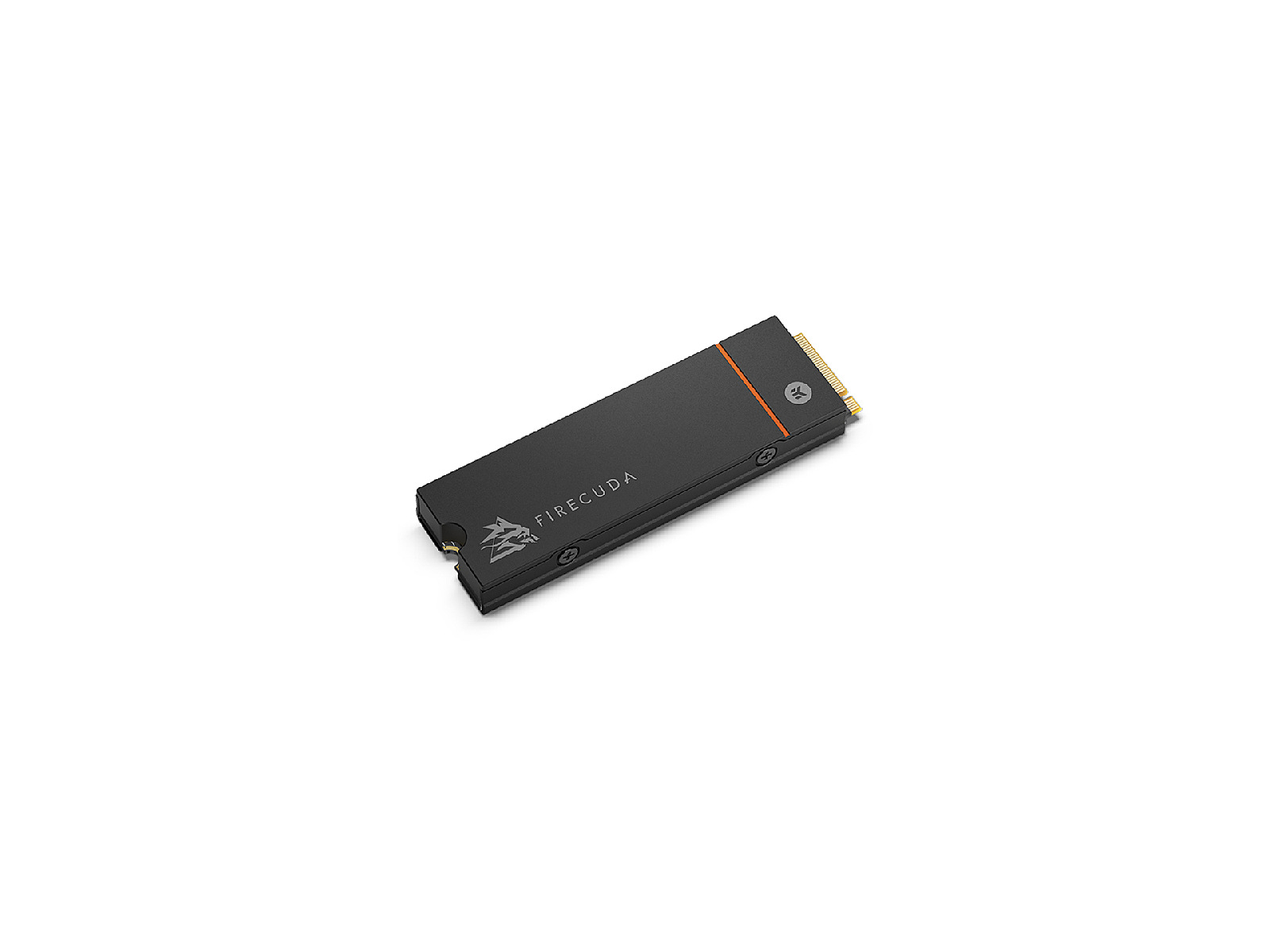

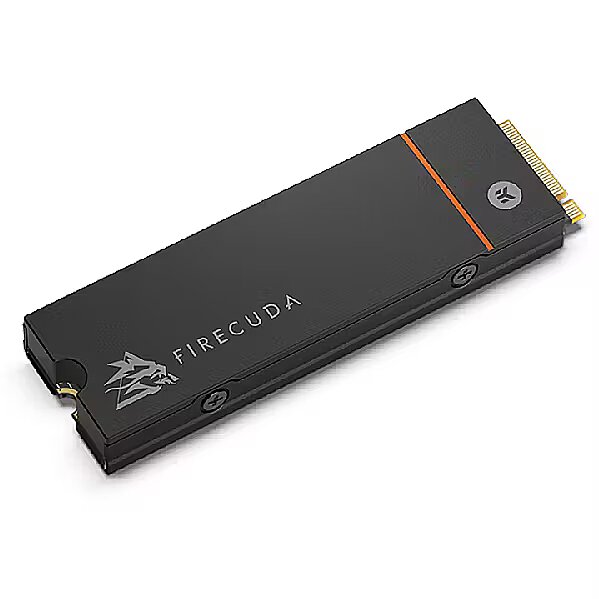

Seagate Firecuda 530, 500GB, M.2 Gen4 x4, With Heatsink
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 10.12.2024
- Delivery to Omniva parcel machine free of charge: 10.12.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 10.12.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.12.2024
- Delivery to address in Riga 3.99 €: 10.12.2024
- Delivery to address in Latvia 6.99 €: 10.12.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 06.12.2024 after 15:00
Main product parameters All parameters
- Capacity: 500 GB
- Type: NVMe
- Read speed (sequential): 7000 MB/s
- Write speed (sequential): 3000 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 4.0 x4
Description
This Seagate brand SSD has a 500 GB capacity and a M.2 80mm (2280) format.
The disk is equipped with the currently most advanced and compact M.2 connection port.
This is a fast-acting NVME SSD drive, based on PCIe technology. It allows data to be transmitted in parallel over multiple channels, ensuring excellent performance. This type of drive is perfectly suited for activities such as processing large files, gaming, and video editing, where maximum data transmission speed is required.
7000 MB/s – this is the data reading speed that this SSD disk is capable of reaching. However, we must remember one crucial nuance - "fast" disks may not show the performance promised by the manufacturer if adequate cooling is not provided.
The write speed (Sequential write speed) of this SSD is 3000 MB/s. However, if adequate cooling is not provided, "fast" drives may not achieve the speeds guaranteed by the manufacturer.
A stable data reading and writing speed during prolonged work is ensured by a cooler or heat sink with which this SSD drive is equipped. It helps to maintain memory chips at an optimal temperature. There is no particular need to worry if you choose a "fast" disc without a heat sink, as almost always (99% of cases) the system board will be equipped with a built-in M.2 slot cooling solution.
The format of this SSD drive (physical size of the drive) is M.2 80mm (2280).
The SSD drive has a PCIe 4.0 x4 interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.
Basic information
Capacity
500 GB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVMe
Read speed (sequential)
7000 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
3000 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: Ir
Lighting
: Nav
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at Dateks.lv section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 4.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specifikācija
Memory type
: TLC (Triple-Level Cell)
Random Read IOPS
: 400K
Random Write IOPS
: 700K
Endurance (TBW)
: 640 TB
More detailed specification
ARTIKEL1 - FIRECUDA 530 NVME SSD500GB M.2S
ARTIKEL2 - PCIE GEN4 3D TLC HEATSINK
Brand - Seagate
BrandPartCode - ZP500GM3A023
Breite - 0.11
Category - Internal Solid State Drives
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
EANCode - 0763649167540
EAN_code - 8719706426022
Features - Component for - PC
Features - Interface - PCI Express 4.0
Features - Linux operating systems supported - Yes
Features - Mean time between failures (MTBF) - 1800000 h
Features - Memory type - 3D TLC
Features - NVMe - Yes
Features - NVMe version - 1.4
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 400000 IOPS
Features - Random write (4KB) - 700000 IOPS
Features - Read speed - 7000 MB/s
Features - S.M.A.R.T. support - Yes
Features - SSD capacity - 500 GB
Features - SSD form factor - M.2
Features - TBW rating - 640
Features - TRIM support - Yes
Features - Windows operating systems supported - Windows 10
Features - Write speed - 3000 MB/s
Gewicht - 0.12
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
GTIN - 0763649167540
GTIN - 763649167540
GTIN - 8719706426022
HERSTELLER - SEAGATE
Hoehe - 0.03
HSTNUMMER - ZP500GM3A023
Laenge - 0.16
Logistics data - Harmonized System (HS) code - 84717070
Logistics data - Layers per pallet - 4 pc(s)
Logistics data - Master (outer) case gross weight - 920 g
Logistics data - Master (outer) case height - 129 mm
Logistics data - Master (outer) case length - 169 mm
Logistics data - Master (outer) cases per pallet - 48 pc(s)
Logistics data - Master (outer) case width - 278 mm
Logistics data - Pallet gross height - 70.6 cm
Logistics data - Pallet gross length - 121.9 cm
Logistics data - Pallet gross weight - 47.5 kg
Logistics data - Pallet gross width - 50.8 cm
Logistics data - Products per master (outer) case - 10 pc(s)
Logistics data - Products per pallet - 480 pc(s)
LongDesc - FireCuda 530 with heatsink offers a minimalist design, anodized aluminium body, and finely textured micropore surface to improve heat transfer and lower SSD temps — making it super-efficient at maximum cooling to maintain peak performance for longer periods of time.FireCuda 530 with heatsink is also compatible with PS5™ systems. Our built-in SSD and heatsink combo meets PS5 specs on performance and dimensions.Speed Reigns — The Fastest FireCuda EverFireCuda 530 dominates the SSD lineup, delivering:- Blistering transfer speeds of up to 7,300 MB/s- Absolute power to make content creations apps run faster and smoother- Lightning-fast video rendering and exporting- Responsive performance built for accelerated gaming and sustained abuse — record, download, rewrite, repeatAbsolute PerformanceUp to 2x faster than PCIe Gen3 NVMe™ SSDs and up to 12x faster than SATA SSDs — the FireCuda 530 redefines speed.Cool Speed AheadNVMe PCIe Gen4 extreme speeds generate extra heat. That’s why Seagate partnered with EKWB — the leaders in heat management — to develop FireCuda 530’s custom heatsink. Built from a high-grade aluminium block with a finely textured anodized finish to help maximise cooling efficiency, this built-in heatsink helps minimise thermal throttling while maximising peak performance for longer periods of time.Form and FunctionLow-profile heatsink design allows for installation in tighter spaces, and premium dark gunmetal grey anodization creates additional micropores in the material surface to promote cooling properties.Endurance UnleashedDesigned to perform under heavy use and tough enough to go the distance with:- 0.7 Drive Writes per Day — fill and delete 70% of the drive capacity, every day, for five years- 1.8 Million Hours Mean Time Between Failures for trusted reliability- Up to 5,100 TB Total Terabytes Written — durability deliveredLatest TechPush your rig to its limit — the FireCuda 530 is built with a Seagate-validated E18 controller and the latest 3D TLC NAND for the most advanced speed and durability.Storage Expansion for PS5™The FireCuda 530 is compatible with PS5™ consoles, and meets PS5 specs on performance and dimensions. Plus, the FireCuda with heatsink combo makes for an easy drop-in expansion solution with no additional parts needed.Visit our article on How to Install a M.2 SSD into a PS5 for more information and step-by-step instructions.Rescue Data Recovery ServicesWe’ve Got Your BackWhen the unexpected happens — like water damage or natural disaster —Rescue Services help you defend against data loss and retrieval costs, so you can rest easier.DiscWizard and SeaTools — Making Drive Management EasierSeagate makes it easy to add new drives to your computer and monitor their health and performance with the free DiscWizard™ and SeaTools™ software. Easily clone your current drive to your new Seagate drive, create and format partitions, transfer data, and back up data with DiscWizard — and then seamlessly monitor drive health, performance, and firmware updates using SeaTools.
LongProductName - FireCuda 530 Heatsink 500GB, M.2, PCIe Gen4 ×4 NVMe 1.4, 3D TLC
LongSummaryDescription - Seagate FireCuda 530. SSD capacity: 500 GB, SSD form factor: M.2, Read speed: 7000 MB/s, Write speed: 3000 MB/s, Component for: PC
Manufacturer - Seagate
Manufacturer_code - ZP500GM3A023
Name - Seagate SSD 500GB 3.0 / 7.0 FC530 H PCIe4 M.2 - ZP500GM3A023 + Heatsink
Operational conditions - Non-operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - 40 - 85 °C
Other features - Compliance certificates - RoHS
Packaging data - Package depth - 24 mm
Packaging data - Package height - 134.2 mm
Packaging data - Package weight - 62 g
Packaging data - Package width - 109 mm
Power - Power consumption (average) - 5.8 W
Power - Power consumption (idle) - 0.014 W
ProductName - 530
ShortSummaryDescription - Seagate FireCuda 530, 500 GB, M.2, 7000 MB/s
Stck_Kart - 0
Stck_Pal - 0
Storno - Y
Technical details - Doesn't contain - Halogen
Title - Seagate FireCuda 530 500 GB M.2 PCI Express 4.0 NVMe 3D TLC
URL - https://www.seagate.com/gb/en/products/gaming-drives/pc-gaming/firecuda-530-ssd/
WarrantyInfo - 5-year limited warranty
Weight - 0,12
Weight & dimensions - Depth - 80.2 mm
Weight & dimensions - Height - 9.84 mm
Weight & dimensions - Weight - 47 g
Weight & dimensions - Width - 24.2 mm
