ID: 667359
Product code: SSD-C800AS240G
In stock 30 units
Warranty: 3 years

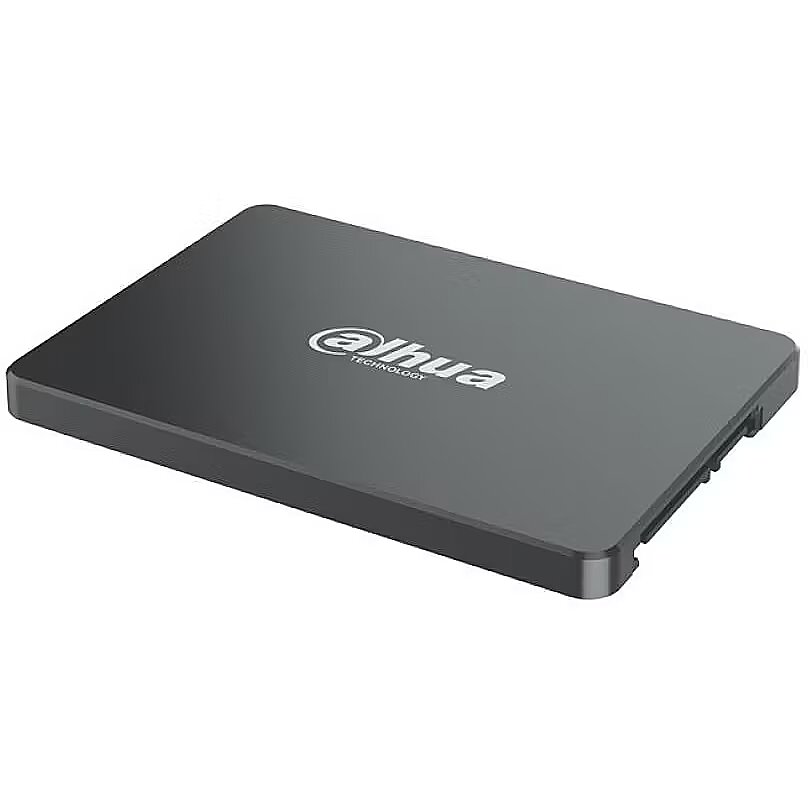

Dahua C800A, 240GB
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: on Friday, 22.11.2024
- Delivery to Omniva parcel machine free of charge: on Friday, 22.11.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: on Friday, 22.11.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: on Friday, 22.11.2024
- Delivery to address in Riga 3.99 €: on Friday, 22.11.2024
- Delivery to address in Latvia 6.99 €: on Friday, 22.11.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Wednesday, 20.11.2024 after 15:00
Main product parameters All parameters
- Capacity: 240 GB
- Type: SATA
- Read speed (sequential): 550 MB/s
- Write speed (sequential): 460 MB/s
- Form factor: 2.5"
- Interface: SATA III (6Gb/s)
Description
This Dahua brand SSD has a 240 GB capacity and a 2.5" format.
The drive is equipped with the classic SATA port, which requires standard SATA data and power cables.
This disc uses SATA III technology - although it is an older protocol, the SATA type SSD disc is still very useful for everyday needs and in cases where you have to fit a certain budget.
550 MB/s – this is the data reading speed that this SSD disk is capable of reaching. However, we must remember one crucial nuance - "fast" disks may not show the performance promised by the manufacturer if adequate cooling is not provided.
460 MB/s - this SSD drive is capable of achieving such data writing speed. The speed parameters promised by the manufacturer may not be reached if the "fast" disk is not provided with an appropriate cooling system.
This is an SSD disk in the 2.5" format.
This SSD drive interface is SATA III (6Gb/s). If you insert this drive into an older interface slot, the speed of the drive will decrease, as the drive will not have sufficient data transfer speed (Bandwidth).
Basic information
Capacity
240 GB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: SATA
Read speed (sequential)
550 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
460 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: Nav
Lighting
: Nav
Ports and equipment
Form factor
2.5"
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at Dateks.lv section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: SATA III (6Gb/s)
Interface
SATA
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specifikācija
Memory type
: TLC (Triple-Level Cell)
Random Read IOPS
: Not indicated
Random Write IOPS
: Not indicated
Endurance (TBW)
: Not indicated
More detailed specification
Brand - Dahua Technology
BrandPartCode - SSD-C800AS240G
Category - Internal Solid State Drives
Category Code - SSM
Description - DHI-SSD-C800A series adopts high-quality 3D wafer level chip and high-performance controller. It is consumer-grade solid state drive designed for personal desktops and notebooks. The product can process data efficiently and ensure quick start-ups. In multi-tasking it can ensure high speed and stability. DHI-SSD-C800A series is standard 2.5" consumer-grade solid state drive which is applicable to personal desktops, notebooks, all-in-one computers, and more. Capacity: 240 GB Interface: SATA III Read Speed: Up to 550 MB/s Write Speed Up to 460 MB/s Memory Component: 3D TLC Operating Temperature: 0°C to 70°C S.M.A.R.T, TRIM, Garbage Collection MTBF: 1 500 000 hours Shock Resistance: 1500G/0.5 ms (half sine wave) TBW: 120 TB Product Dimensions: 100.20 mm × 69.90 mm × 7.00 mm Net Weight: Max 40 g
Dimensions - 100.20 × 69.90 × 7.00mm
Drive thickness - 7mm
Features - Component for - PC/Laptop
Features - Data transfer rate - 6 Gbit/s
Features - Interface - Serial ATA III
Features - Linux operating systems supported - Yes
Features - Mac operating systems supported - Yes
Features - Mean time between failures (MTBF) - 1500000 h
Features - Memory type - 3D TLC
Features - NVMe - No
Features - Random read (4KB) - 52000 IOPS
Features - Random write (4KB) - 57000 IOPS
Features - Read speed - 550 MB/s
Features - S.M.A.R.T. support - Yes
Features - SSD capacity - 240 GB
Features - SSD form factor - 2.5"
Features - TRIM support - Yes
Features - Windows operating systems supported - Yes
Features - Write speed - 460 MB/s
Form Factor - 2,5"
Full Description Line - SSD series DHI-SSD-C800A|240GB|SATA 3.0|TLC|Write speed 460 MBytes/sec|Read speed 550 MBytes/sec|Form Factor 2,5"|Drive thickness 7mm|MTBF 1500000 hours
LongDesc -
LongProductName - 240 GB, 2.5", 6 Gb/s SATA, 3D TLC, S.M.A.R.T, TRIM
LongSummaryDescription - Dahua Technology DHI-SSD-C800AS240G. SSD capacity: 240 GB, SSD form factor: 2.5", Read speed: 550 MB/s, Write speed: 460 MB/s, Data transfer rate: 6 Gbit/s, Component for: PC/Laptop
MTBF - 1.5e+006 hours
NAND flash technology - TLC
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Operating vibration - 2.78 G
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Packaging data - Package depth - 105.5 mm
Packaging data - Package height - 15.5 mm
Packaging data - Package width - 140.5 mm
Power - Power consumption (idle) - 0.37 W
Power - Power consumption (max) - 1.2 W
ProductName - DHI-SSD-C800AS240G
Read speed - 550 MBytes/sec
SATA 3.0 Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 14.1 cm
Shipping Box Height Shipping/Package Box Dimensions - 1.6 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.07 kg
Shipping Box Width Shipping/Package Box Dimensions - 10.6 cm
ShortSummaryDescription - Dahua Technology DHI-SSD-C800AS240G, 240 GB, 2.5", 550 MB/s, 6 Gbit/s
SSD Capacity - 240GB
SSD series - DHI-SSD-C800A
Title - Dahua Technology DHI-SSD-C800AS240G 240 GB 2.5" Serial ATA III 3D TLC
Unit Box Height - 0.016
Unit Box Length - 0.141
Unit Box Width - 0.106
Unit Brutto Volume - 0.0002391 cubm
Unit Gross Weight - 0.07 kg
Unit Net Weight - 0.04 kg
URL - https://www.dahuasecurity.com/la/products/All-Products/NAND-FLASH/Internal-SSD/C800A/SSD-C800AS240G
Vendor Homepage - https://www.dahuasecurity.com/ceen/products/All-Products/NAND-FLASH/Internal-SSD/C800A/SSD-C800AS240G
Warranty - 36L months
WarrantyInfo -
Weight & dimensions - Depth - 69.9 mm
Weight & dimensions - Height - 7 mm
Weight & dimensions - Width - 100.2 mm
Write speed - 460 MBytes/sec
