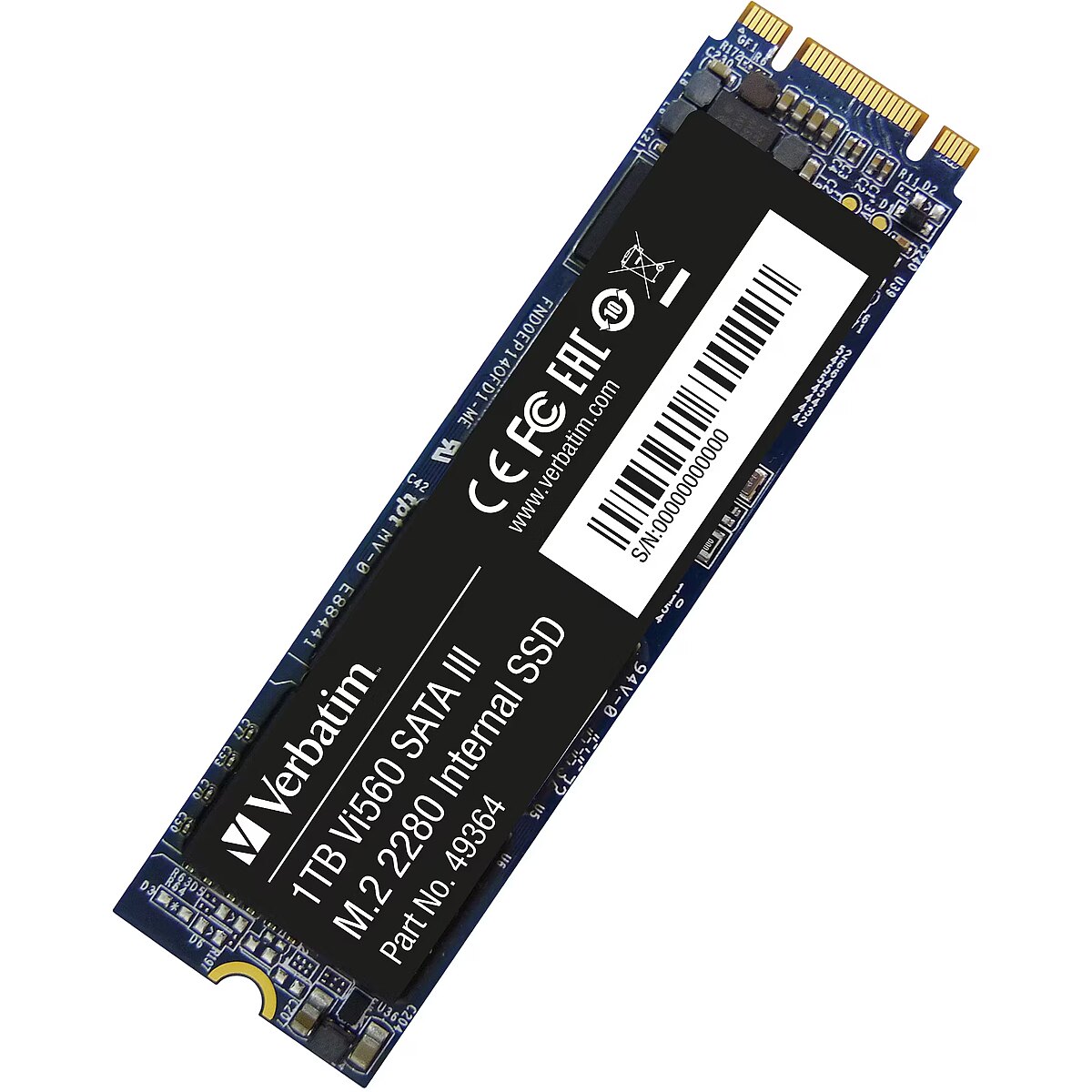

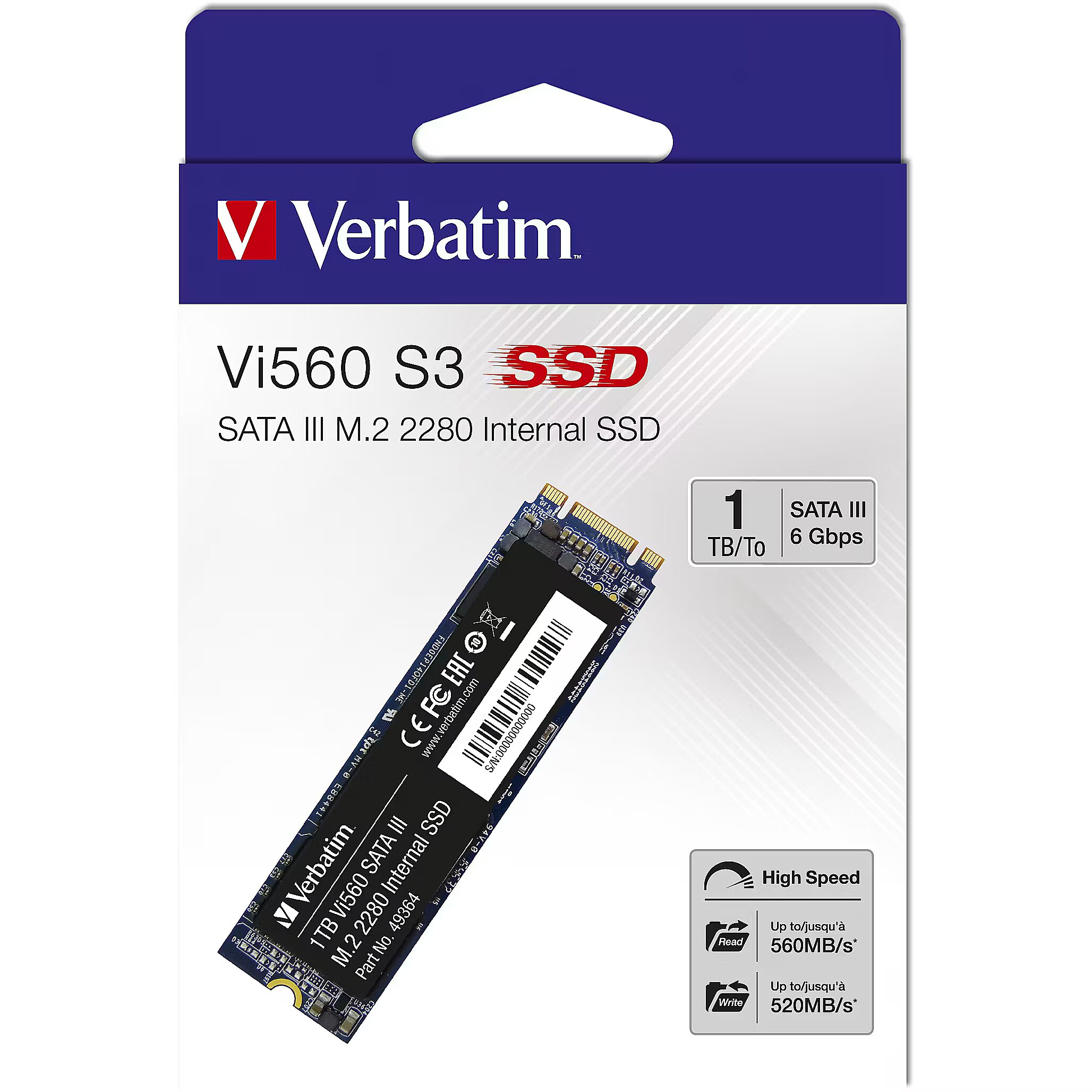

Verbatim Vi560, 1TB, M.2 Sata

Name: Verbatim Vi560, 1TB, M.2 Sata
Brand: Verbatim
SKU: 571200
Price: 78.36 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 571200 Product code: 49364

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

Dateks.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)

Compare

Main product parameters All parameters

Capacity: 1 TB
Type: SATA
Read speed (sequential): 560 MB/s
Write speed (sequential): 520 MB/s
Form factor: M.2 80mm (2280)
Interface: SATA III (6Gb/s)

Similar Products

Basic information
	This product Verbatim Vi560, 1TB, M.2 Sata	Kingston NV3, 1TB, M.2 Gen4 x4	Lexar NM620, 512GB, M.2 Gen3 x4	Lexar NM620, 256GB, M.2 Gen3 x4	Lexar NM620, 2TB, M.2 Gen3 x4
Show similar specs. Hide similar specs.	78.36 €	76.90 €	49.29 €	33.28 €	130.63 €
Capacity	1 TB	1 TB	512 GB	256 GB	2 TB
Type	SATA	NVMe	NVMe	NVMe	NVMe
Read speed (sequential)	560 MB/s	6000 MB/s	3300 MB/s	3000 MB/s	3300 MB/s
Write speed (sequential)	520 MB/s	4000 MB/s	2400 MB/s	1300 MB/s	3000 MB/s
Functionality
Radiators	Nav	Nav	Nav	Nav	Nav
Lighting	Nav	Nav	Nav	Nav	Nav
Ports and equipment
Form factor	M.2 80mm (2280)	M.2 80mm (2280)	M.2 80mm (2280)	M.2 80mm (2280)	M.2 80mm (2280)
Interface	SATA III (6Gb/s)	PCIe 4.0 x4	PCIe 3.0 x4	PCIe 3.0 x4	PCIe 3.0 x4
Interface	M.2	M.2	M.2	M.2	M.2
Specifikācija
Memory type	Nav norādīts	TLC (Triple-Level Cell)	TLC (Triple-Level Cell)	TLC (Triple-Level Cell)	TLC (Triple-Level Cell)
Random Read IOPS	102K	Not indicated	200K	92K	Not indicated
Random Write IOPS	102K	Not indicated	256K	240K	Not indicated
Endurance (TBW)	Not indicated	320 TB	250 TB	125 TB	500 TB

Description

We offer to buy the Verbatim SSD disc with 1TB data capacity and SATA port.

The additional advantages that can be provided by the SSD technology are based on the unique design of this disc. SSD discs save the data in memory chips distinguished by totally silent operation, low temperature and electricity consumption. All these features permit to feel the essential difference from the currently obsolete technology of hard discs.

Basic information

Capacity 1 TB

The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.

Type : SATA

Read speed (sequential) 560 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 520 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality

Radiators : Nav

Lighting : Nav

Ports and equipment

Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at Dateks.lv section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : SATA III (6Gb/s)

Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija

Memory type : Nav norādīts

Random Read IOPS : 102K

Random Write IOPS : 102K

Endurance (TBW) : Not indicated

More detailed specification

Additional information in manufacturers website Verbatim Vi560, 1TB, M.2 Sata

ARTIKEL1 - VI560 S3 M.2 2280 SSD 1TB
ARTIKEL2 - SATA III M.2 INTERNAL
Brand - Verbatim
BrandPartCode - 49364
Breite - 0.12
Category - Internal Solid State Drives
EANCode - 0023942493648
Features - Component for - PC/Laptop
Features - Hardware encryption - No
Features - Interface - Serial ATA III
Features - Linux operating systems supported - Yes
Features - M.2 key ID - E
Features - Mac operating systems supported - Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Features - Mean time between failures (MTBF) - 1500000 h
Features - Memory type - 3D NAND
Features - NVMe - No
Features - Random read (4KB) - 102000 IOPS
Features - Random write (4KB) - 102000 IOPS
Features - Read speed - 520 MB/s
Features - SSD capacity - 1 TB
Features - SSD form factor - M.2
Features - Windows operating systems supported - Windows 10, Windows 7, Windows 8
Features - Write speed - 490 MB/s
Gewicht - 0.04
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
GTIN - 0023942493648
GTIN - 023942493648
HERSTELLER - VERBATIM
Hoehe - 0.03
HSTNUMMER - 49364
Laenge - 0.18
Logistics data - Harmonized System (HS) code - 84717070
Logistics data - Layers per pallet - 5 pc(s)
Logistics data - Master (outer) case gross weight - 120 g
Logistics data - Master (outer) case height - 188 mm
Logistics data - Master (outer) case length - 70 mm
Logistics data - Master (outer) cases per pallet - 495 pc(s)
Logistics data - Master (outer) case width - 128 mm
Logistics data - Products per master (outer) case - 2 pc(s)
Logistics data - Products per pallet - 990 pc(s)
LongDesc - Verbatim SATA III M.2 2280 internal solid state drives can revitalise the performance of your system. Using the latest 3D NAND technology and compact dimensions, they offer the perfect way to upgrade, particular for small or thin form factor devices such as Ultrabooks and Notebooks.The Vi560 delivers fast system boot-ups, quick application responses and rapid transfer speeds, with read speeds of up to 560MB/s, which is 20 times faster than a standard hard drive. With a MTBF (mean time before failure) rating of 1.5 million hours and up to 450 TBW (terabytes written), the Vi560 is a high spec SSD that can be relied upon. (Recommended for professional installation.)
LongProductName - Vi560 Internal SATA III M.2 SSD 1TB
LongSummaryDescription - Verbatim Vi560 S3 M.2 SSD 1TB. SSD capacity: 1 TB, SSD form factor: M.2, Read speed: 520 MB/s, Write speed: 490 MB/s, Component for: PC/Laptop
Operational conditions - Non-operating shock - 1500 G
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Packaging data - Package depth - 25 mm
Packaging data - Package height - 148 mm
Packaging data - Package type - Hanging box
Packaging data - Package weight - 43 g
Packaging data - Package width - 117 mm
Power - Power consumption (idle) - 0.62 W
Power - Power consumption (read) - 1.8 W
Power - Power consumption (write) - 1.6 W
ProductName - Vi560 S3 M.2 SSD 1TB
ShortSummaryDescription - Verbatim Vi560 S3 M.2 SSD 1TB, 1 TB, M.2, 520 MB/s
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - RoHS
Title - Verbatim Vi560 S3 M.2 SSD 1TB
URL - https://www.verbatim-europe.co.uk/en/prod/vi560-s3-m2-ssd-49364/
WarrantyInfo - 3 Year Limited Warranty
Weight & dimensions - Depth - 22 mm
Weight & dimensions - Height - 2.3 mm
Weight & dimensions - Weight - 9 g
Weight & dimensions - Width - 80 mm
