ID: 1131355
Product code: SEDC2000BM8/240G
In stock 2 units
Warranty: 3 years

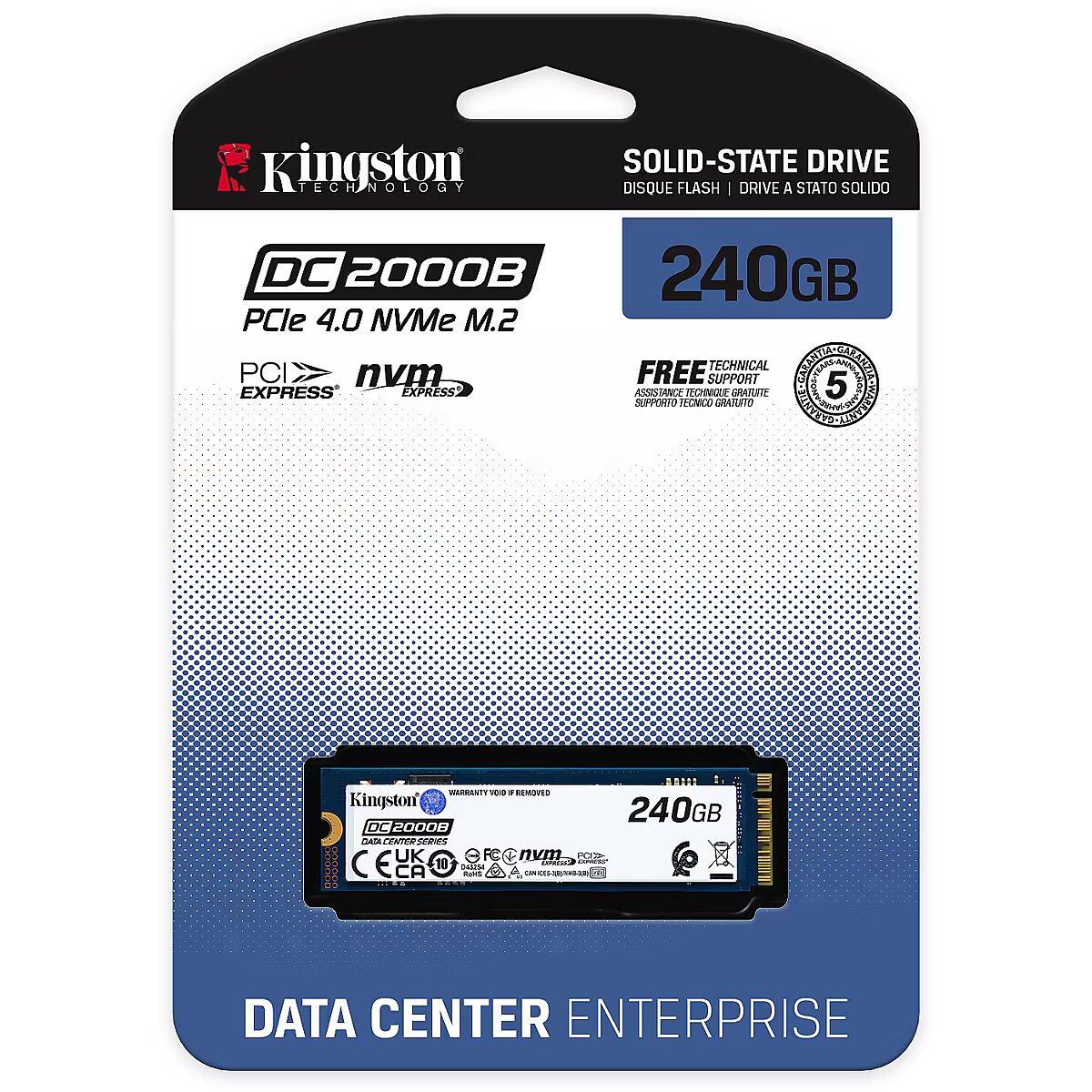

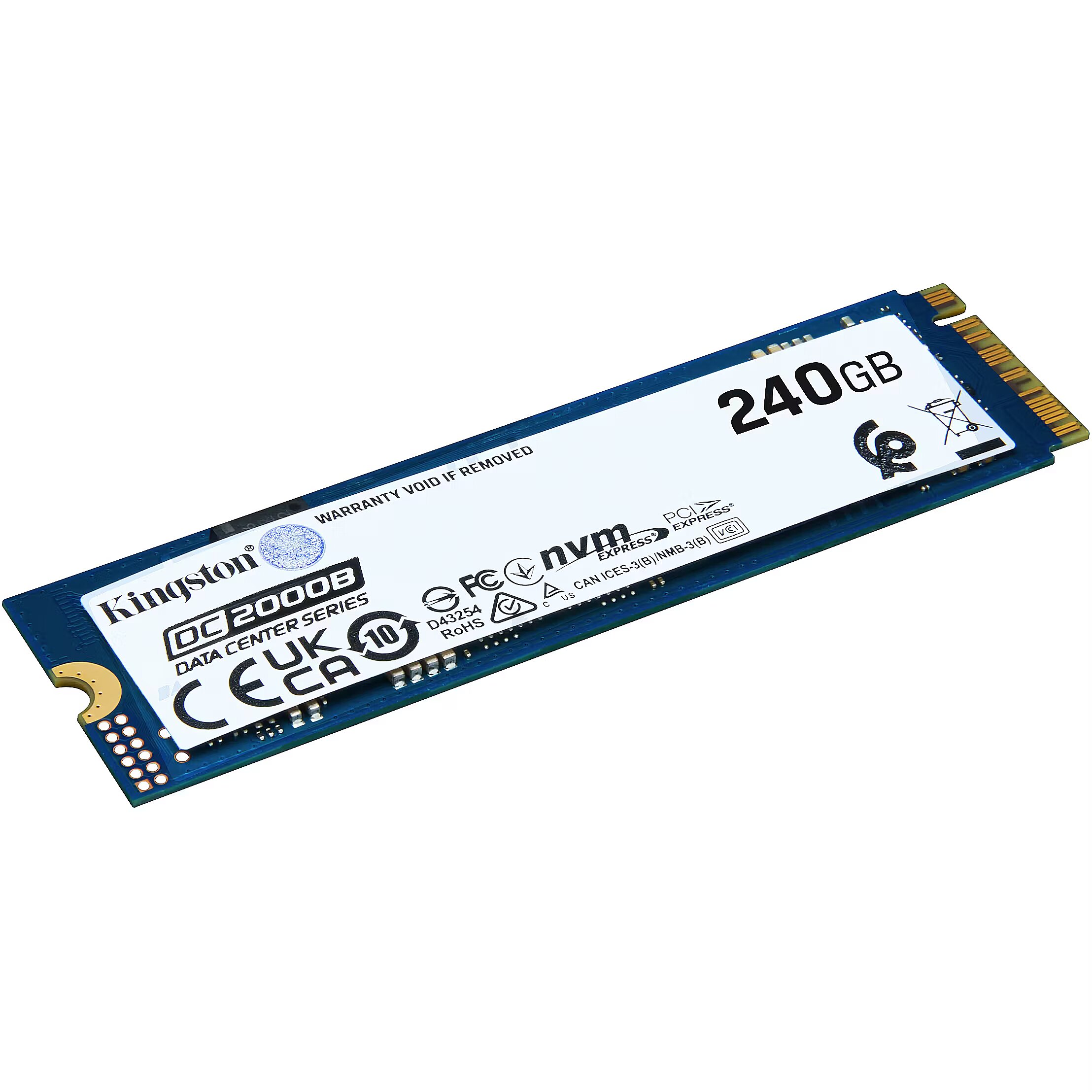

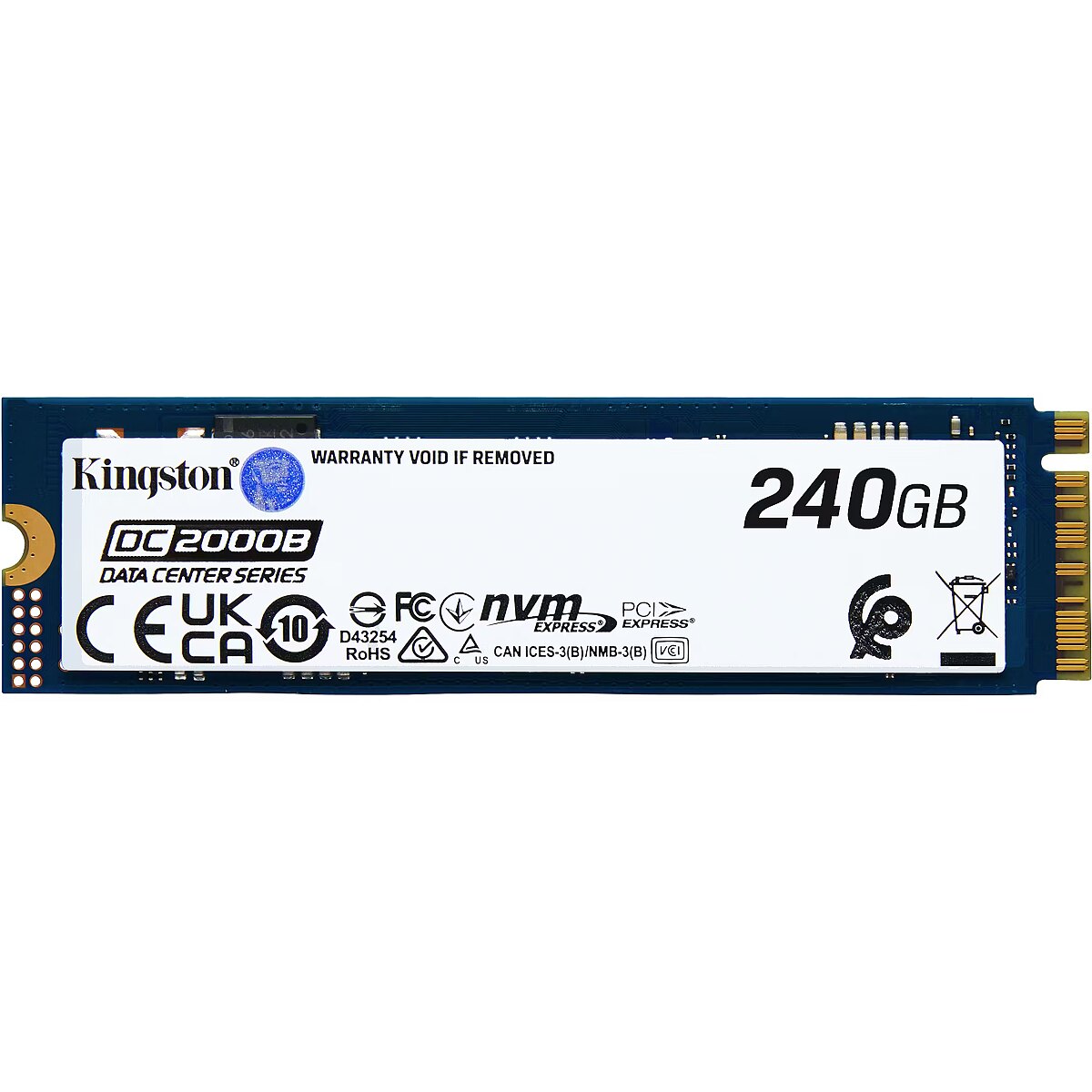

Kingston DC2000B, 240GB, M.2 Gen4 x4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 15.11.2024
- Delivery to Omniva parcel machine free of charge: 15.11.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 15.11.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 15.11.2024
- Delivery to address in Riga 3.99 €: 15.11.2024
- Delivery to address in Latvia 6.99 €: 15.11.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Wednesday, 13.11.2024 after 15:00
Main product parameters All parameters
- Capacity: 240 GB
- Type: NVMe
- Read speed (sequential): 4500 MB/s
- Write speed (sequential): 400 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 4.0 x4
Description
We offer to buy Kingston M.2 80mm (2280) format SSD with 240 GB high capacity.
As an added benefit, SSDs are completely noise-free, as they contain no mechanical moving parts, unlike standard hard disks. Another feature is the extremely low power consumption, which will certainly be appreciated by notebook owners, as this parameter significantly increases battery life.
As an added benefit, SSDs are completely noise-free, as they contain no mechanical moving parts, unlike standard hard disks. Another feature is the extremely low power consumption, which will certainly be appreciated by notebook owners, as this parameter significantly increases battery life.
Basic information
Capacity
240 GB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVMe
Read speed (sequential)
4500 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
400 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: Nav
Lighting
: Nav
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at Dateks.lv section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 4.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specifikācija
Memory type
: TLC (Triple-Level Cell)
Random Read IOPS
: 260K
Random Write IOPS
: 18K
Endurance (TBW)
: 175 TB
More detailed specification
ARTIKEL1 - 240G DC2000B PCIE 4.0 M.2 2280
ARTIKEL2 - ENTERPRISE SSD
Brand - Kingston Technology
BrandPartCode - SEDC2000BM8/240G
Breite - 0
Category - Internal Solid State Drives
Code - SEDC2000BM8/240G
Design > SSD form factor - M.2 2280
EAN - 740617345223
EANCode - 0740617345223
Features - Component for - Server
Features - Drive writes per day (DWPD) - 0.4
Features - H/W PLP function - Yes
Features - Interface - PCI Express 4.0
Features - M.2 SSD size - 2280 (22 x 80 mm)
Features - Mean time between failures (MTBF) - 2000000 h
Features - Memory type - 3D TLC
Features - NVMe - Yes
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 260000 IOPS
Features - Random write (4KB) - 18000 IOPS
Features - Read latency - 70 µs
Features - Read speed - 4500 MB/s
Features - S.M.A.R.T. support - Yes
Features - SSD capacity - 240 GB
Features - SSD form factor - M.2
Features - TBW rating - 175
Features - Write latency - 53 µs
Features - Write speed - 400 MB/s
Gewicht - 0
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
GTIN - 0740617345223
GTIN - 740617345223
HERSTELLER - KINGSTON
Hoehe - 0
HSTNUMMER - SEDC2000BM8/240G
Laenge - 0
Link - https://www.kingstonmemoryshop.co.uk/kingston-240gb-dc2000b-ssd-m-2-2280-nvme-pcie-4-0-x4-4500mb-s-r-400mb-s-w
Logistics data - Country of origin - China, Taiwan
Logistics data - Master (outer) case gross weight - 280.6 g
Logistics data - Master (outer) case height - 69.9 mm
Logistics data - Master (outer) case length - 203.2 mm
Logistics data - Master (outer) case width - 135.9 mm
Logistics data - Products per master (outer) case - 6 pc(s)
LongDesc - Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD that uses the latest Gen 4x4 PCIe interface with 112-layer 3D TLC NAND. Ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) to preserve valuable front-loading drive bays, as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes hardware-based on-board power loss protection (PLP). New for DC2000B is an integrated aluminium heatsink that offers broader thermal compatibility for a wide range of systems. DC2000B delivers low latency and excellent IO consistency to handle various workloads from boot drive applications to high-speed application caching. DC2000B is rated at 0.4 DWPD write endurance and carries a five-year warranty.PCIe 4.0 NVMe performanceUtilises PCIe Gen 4x4 lanes for high-performance speeds.On-board power loss protection (PLP)Reduce the possibility of data loss and/or corruption due to unexpected power-off.Low latency and IOPS consistencyFirmware optimised to deliver low latency and IO consistency for high duty cycle workloads.Designed for data center environmentsOptimised to meet the demands of server boot applications with low latency and IO consistency as the key design criteria.
LongProductName - 240G DC2000B PCIe 4.0 M.2 2280 Enterprise SSD
LongSummaryDescription - Kingston Technology 240G DC2000B PCIe 4.0 M.2 2280 Enterprise SSD. SSD capacity: 240 GB, SSD form factor: M.2, Read speed: 4500 MB/s, Write speed: 400 MB/s, Component for: Server
Name - Kingston SSD | DC2000B | 240 GB | SSD form factor M.2 2280 | Solid-state drive interface PCIe NVMe Gen 4.0 (x4) | Read speed 4500 MB/s | Write speed 400 MB/s
Operational conditions - Non-operating vibration - 20 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features - Cooling type - Heatsink
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 70.00 mm
Package features > Gross height (mm) - 10.00 mm
Package features > Gross width (mm) - 100.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 7042 pc(s)
Package features > Paper/Pasteboard - 40.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.05 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging data - Package depth - 142 mm
Packaging data - Package height - 184.2 mm
Packaging data - Package weight - 33.77 g
Packaging data - Package width - 129.5 mm
Performance > Read speed - 4500 MB/s
Performance > Solid-state drive capacity - 240 GB
Performance > Solid-state drive interface - PCIe NVMe Gen 4.0 (x4)
Performance > Write speed - 400 MB/s
Power - Average power consumption (read) - 2.97 W
Power - Average power consumption (write) - 4.02 W
Power - Power consumption (read) - 3.01 W
Power - Power consumption (write) - 4.09 W
ProductName - 240G DC2000B PCIe 4.0 M.2 2280 Enterprise SSD
ShortSummaryDescription - Kingston Technology 240G DC2000B PCIe 4.0 M.2 2280 Enterprise SSD, 240 GB, M.2, 4500 MB/s
Stck_Kart - 0
Stck_Pal - 0
Storno - Y
Technical details > Gross weight - 0.14 kg
Technical details > Net weight - 0.09 kg
Technical details > Producer - Kingston
Technical details > Producer product family - SSD
Technical details > Producer product name - DC2000B
Title - Kingston Technology 240G DC2000B PCIe 4.0 M.2 2280 Enterprise SSD
URL - https://www.kingston.com/en
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo - Limited 5-year warranty with free technical support
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 8.3 mm
Weight & dimensions - Weight - 9 g
Weight & dimensions - Width - 22 mm
