V7 1TB, M.2 Sata

Name: V7 1TB, M.2 Sata
Brand: V7
SKU: 1127268
Price: 85.96 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1127268 Product code: V7SSD1TBM2SE

Can be ordered 14 units Availability: 14 days after order approval

Warranty: 3 years

Compare

Delivery options More about shipping

Delivery to Smartpost free of charge: 04.12.2024
Delivery to Omniva parcel machine free of charge: 04.12.2024
Piegāde uz DPD Pickup Paku Skapi free of charge: 04.12.2024
Delivery to Latvian post office, parcel locker or Circle K free of charge: 04.12.2024
Delivery to address in Riga 3.99 €: 04.12.2024
Delivery to address in Latvia 6.99 €: 04.12.2024
Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 02.12.2024 after 15:00

Main product parameters All parameters

Capacity: 1 TB
Type: SATA
Read speed (sequential): 520 MB/s
Write speed (sequential): 470 MB/s
Form factor: M.2 80mm (2280)
Interface: SATA III (6Gb/s)

Description

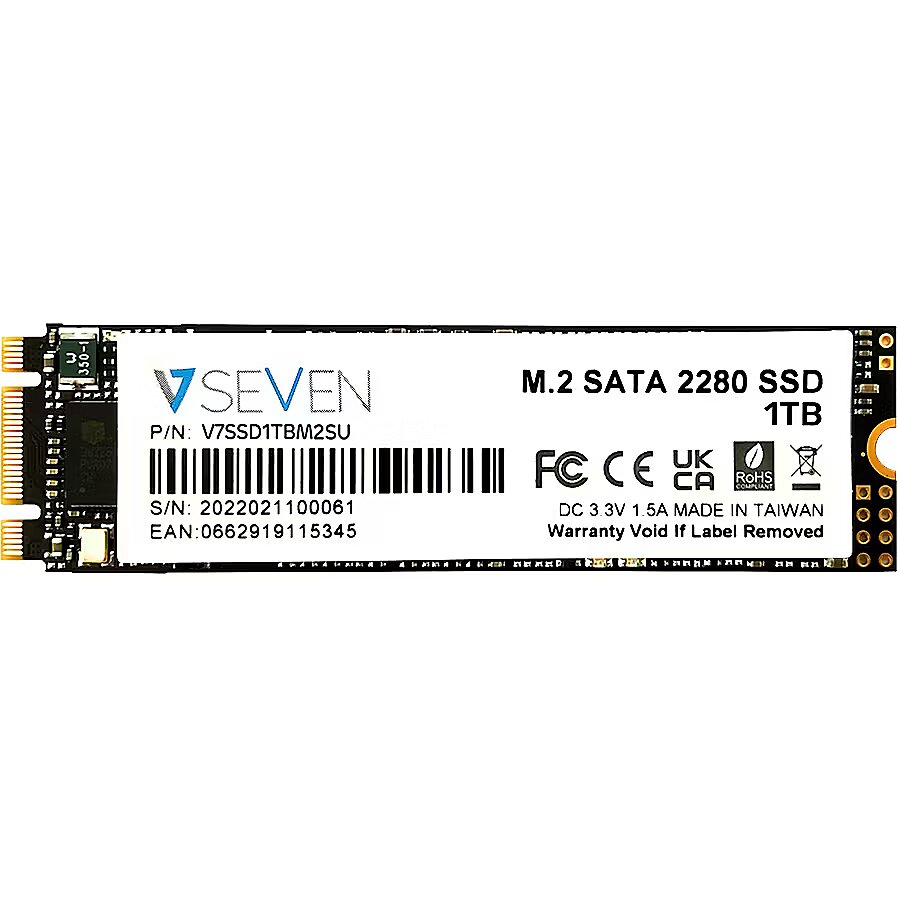

This V7 brand SSD has a 1 TB capacity and a M.2 80mm (2280) format.

This disk uses the standard SATA interface, which operates with traditional SATA data and power cables.

This disc uses SATA III technology - although it is an older protocol, the SATA type SSD disc is still very useful for everyday needs and in cases where you have to fit a certain budget.

The read speed for this SSD drive reaches 520 MB/s. However, it's crucial to note - if the "fast" drives are not provided with adequate cooling, they may not be able to operate at the speed indicated by the manufacturer.

The write speed (Sequential write speed) of this SSD is 470 MB/s. However, if adequate cooling is not provided, "fast" drives may not achieve the speeds guaranteed by the manufacturer.

This SSD drive has an M.2 80mm (2280) format.

This SSD disk has a SATA III (6Gb/s) interface. Keep in mind that if you insert a disk with a newer interface (for example, with PCIe 4.0 or 5.0) into an older interface slot (for example, PCIe 3.0), the disk speed will decrease because the disk will not have sufficient data transfer speed (Bandwidth).

Basic information

Capacity 1 TB

The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.

Type : SATA

Read speed (sequential) 520 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 470 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality

Radiators : Nav

Lighting : Nav

Ports and equipment

Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at Dateks.lv section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : SATA III (6Gb/s)

Interface SATA

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija

Memory type : TLC (Triple-Level Cell)

Random Read IOPS : 45K

Random Write IOPS : 75K

Endurance (TBW) : Not indicated

More detailed specification

Additional information in manufacturers website V7 1TB, M.2 Sata

ARTIKEL1 - 1TB V7 M.2 SATA SSD M.2 3D TLC
ARTIKEL2 -
Brand - V7
BrandPartCode - V7SSD1TBM2SE
Breite - 0
Category - Internal Solid State Drives
EANCode - 0662919115161
Features - Certification - CE, FCC, RoHS, UKCA, REACH
Features - Component for - PC/Laptop
Features - Data transfer rate - 6 Gbit/s
Features - DevSlp (device sleep) support - Yes
Features - Interface - Serial ATA III
Features - Memory type - 3D TLC
Features - Native Command Queuing (NCQ) - Yes
Features - Random read (4KB) - 45000 IOPS
Features - Random write (4KB) - 75000 IOPS
Features - Read speed - 520 MB/s
Features - S.M.A.R.T. support - Yes
Features - SSD capacity - 1 TB
Features - SSD form factor - M.2
Features - TRIM support - Yes
Features - Write speed - 470 MB/s
Gewicht - 0
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
GTIN - 0662919115161
GTIN - 662919115161
HERSTELLER - V7
Hoehe - 0
HSTNUMMER - V7SSD1TBM2SE
Laenge - 0
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 84717070
LongDesc - V7 Solid-state drives will improve the responsiveness of your existing system with faster boot, loading and transfer times compared to a mechanical hard drive. SSD is more reliable and durable than a mechanical hard drive, as there are no moving parts, making it less likely to fail than a mechanical hard drive. SSD will run cooler and quieter and its shock and vibration resistance which will make it ideal for notebooks and other mobile computing devices.
LongProductName - 1TB V7 M.2 SATA SSD - SATA 3.1 Compliant 6GB/s, 3GB/s and 1.5GB/s support
LongSummaryDescription - V7 V7SSD1TBM2SE. SSD capacity: 1 TB, SSD form factor: M.2, Read speed: 520 MB/s, Write speed: 470 MB/s, Data transfer rate: 6 Gbit/s, Component for: PC/Laptop
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Packaging data - Package depth - 120 mm
Packaging data - Package height - 9 mm
Packaging data - Package weight - 40 g
Packaging data - Package width - 65 mm
Power - Power consumption (idle) - 0.68 W
Power - Power consumption (read) - 2.3 W
Power - Power consumption (write) - 2.5 W
ProductName - V7SSD1TBM2SE
ShortSummaryDescription - V7 V7SSD1TBM2SE, 1 TB, M.2, 520 MB/s, 6 Gbit/s
Stck_Kart - 0
Stck_Pal - 0
Storno - Y
Title - V7 V7SSD1TBM2SE internal solid state drive 1 TB M.2 Serial ATA III 3D TLC
URL - https://www.v7world.com/uk/1tb-v7-m-2-sata-ssd-ce47349-v7ssd2tbnv3e.html
WarrantyInfo - 3 years
Weight & dimensions - Depth - 120 mm
Weight & dimensions - Height - 9 mm
Weight & dimensions - Weight - 40 g
Weight & dimensions - Width - 65 mm
