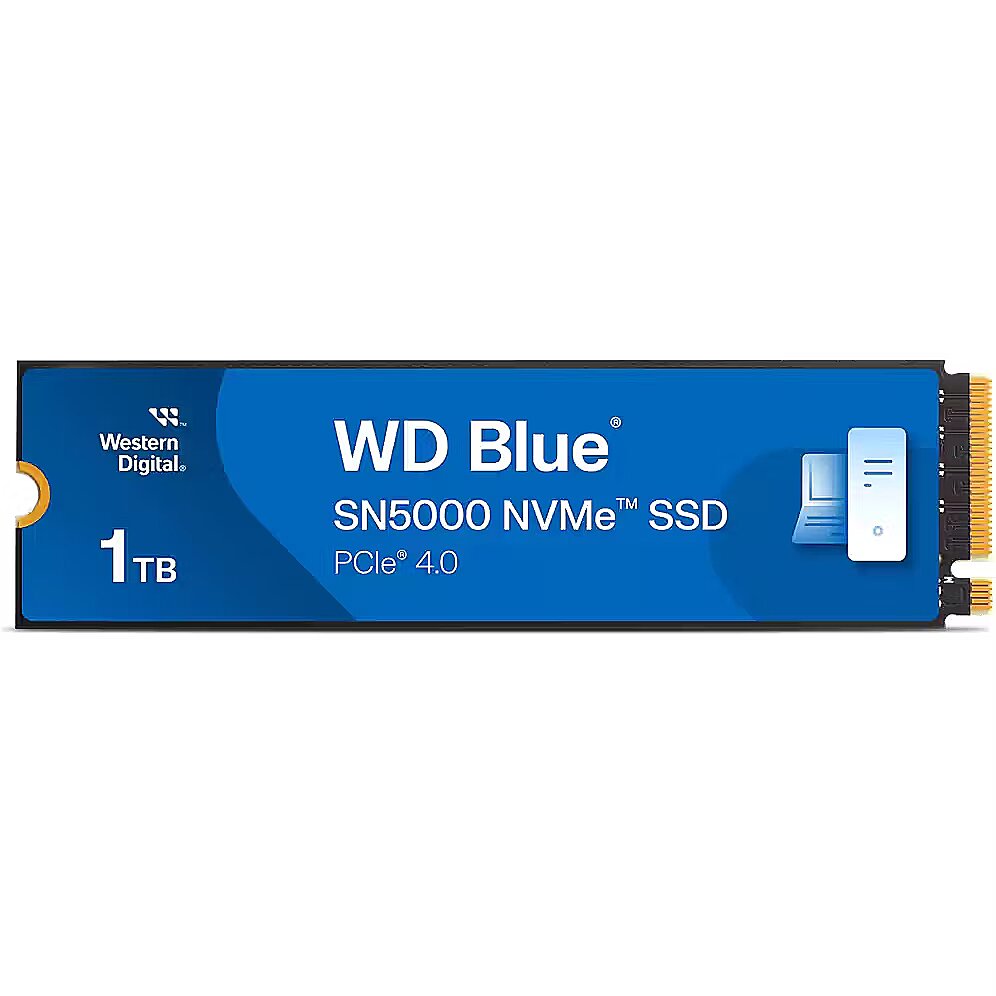

Western Digital Blue SN5000, 1TB, M.2 Gen4 x4

Name: Western Digital Blue SN5000, 1TB, M.2 Gen4 x4
Brand: Western Digital
SKU: 1125424
Price: 103.46 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1125424 Product code: WDS100T4B0E

In stock 30 units

Warranty: 3 years

Compare

Delivery options More about shipping

Delivery to Omniva parcel machine free of charge: 02.01.2025
Piegāde uz DPD Pickup Paku Skapi free of charge: 02.01.2025
Delivery to Latvian post office, parcel locker or Circle K free of charge: 02.01.2025
Delivery to address in Riga 3.99 €: 02.01.2025
Delivery to address in Latvia 6.99 €: 02.01.2025
Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Friday, 27.12.2024 after 15:00

Main product parameters All parameters

Capacity: 1 TB
Type: NVMe
Read speed (sequential): 5150 MB/s
Write speed (sequential): 4900 MB/s
Form factor: M.2 80mm (2280)
Interface: PCIe 4.0 x4

Description

We offer to purchase a Western Digital M.2 80mm (2280) format SSD drive with a 1 TB capacity.

The disk is equipped with the currently most advanced and compact M.2 connection port.

This is a fast-acting NVME SSD drive, based on PCIe technology. It allows data to be transmitted in parallel over multiple channels, ensuring excellent performance. This type of drive is perfectly suited for activities such as processing large files, gaming, and video editing, where maximum data transmission speed is required.

This SSD disk read speed (Sequential read speed) is 5150 MB/s. Keep in mind that "fast" disks without a proper cooling solution may not reach the speeds indicated by the manufacturer.

The writing speed for this SSD disk reaches 4900 MB/s. Without a suitable cooling mechanism, "fast" disks may not be able to achieve the performance indicators promised by the manufacturer.

The format of this SSD drive (physical size of the drive) is M.2 80mm (2280).

The SSD drive has a PCIe 4.0 x4 interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.

Basic information

Capacity 1 TB

The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.

Type : NVMe

Read speed (sequential) 5150 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 4900 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality

Radiators : Nav

Lighting : Nav

Ports and equipment

Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at Dateks.lv section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 4.0 x4

Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija

Memory type : TLC (Triple-Level Cell)

Random Read IOPS : 730K

Random Write IOPS : 770K

Endurance (TBW) : 600 TB

More detailed specification

ARTIKEL1 - 1TB WD BLUE SN5000 NVME SSD
ARTIKEL2 - PCIE GEN 4.0 UP TO 5150 MB/S RS
Breite - 0
Category 1 - SSDs
Category 2 - Interne SSDs
Category Code - SSU
CnCode CnCode - 84717098
Description - The WD Blue SN5000 NVMe SSD is next-generation storage designed for creators and professionals. Fuel your AI-enabled applications and accelerate your workflow with NVMe, PCIe Gen 4, and Western Digital nCache™ 4.0 technology. Plus, create without limits with up to 4TB1 capacity. No matter your creative process, the WD Blue SN5000 NVMe SSD makes every step easier - and shortens the time between ideating and finalizing your creative vision.
dimensionalWeight - 52
Dimensions - 80.15 x 22.15 x 2.38mm
Drive thickness - 2.38mm
EAN - 0718037894843
EANCode - 0718037894843
Features - Component for - PC/Laptop
Features - Interface - PCI Express 4.0
Features - M.2 key ID - M
Features - M.2 SSD size - 2280 (22 x 80 mm)
Features - NVMe - Yes
Features - PCI Express CEM revision - 4.0
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 730000 IOPS
Features - Random write (4KB) - 770000 IOPS
Features - Sequential read speed (AS SSD) - 5150 MB/s
Features - Sequential write speed (AS SSD) - 4900 MB/s
Features - SSD capacity - 1 TB
Features - SSD form factor - M.2
Features - Target workload - Mixed Use (MU)
Features - TBW rating - 600
Form Factor - M.2
Full Description Line - SSD series Blue SN5000|1TB|Form Factor M.2|PCIe Gen4|NVMe|Write speed 4900 MBytes/sec|Read speed 5150 MBytes/sec|Drive thickness 2.38mm|TBW 600 TB
Gewicht - 0
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
HERSTELLER - WESTERN DIGITAL
Hoehe - 0
HSTNUMMER - WDS100T4B0E
Laenge - 0
Manufacturer - Western Digital
MPN - WDS100T4B0E
Name - M.2 1TB WD Blue SN5000 NVMe PCIe 4.0 x 4
NVMe - Yes
Operational conditions - Operating temperature (T-T) - 0 - 85 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features - Compliance certificates - BSMI
Other features - Compliance certificates - CE
Other features - Compliance certificates - Federal Communications Commission (FCC)
Other features - Compliance certificates - ICES
Other features - Compliance certificates - KCC
Other features - Compliance certificates - RCM
Other features - Compliance certificates - UL
Other features - Compliance certificates - VCCI
PCIe Gen4 Interface - Yes
producerCode - WDS100T4B0E
productName - Western Digital Blue SN5000 1 TB M.2 PCI Express 4.0 NVMe
productSize - Normal
Read speed - 5150 MBytes/sec
Shipping Box Depth Shipping/Package Box Dimensions - 23.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 14 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 0.57 kg
Shipping Box Width Shipping/Package Box Dimensions - 11 cm
sizeX - 130
sizeY - 100
sizeZ - 20
SSD Capacity - 1TB
SSD series - Blue SN5000
Stck_Kart - 0
Stck_Pal - 0
Storno - Y
TBW - 600 TB
Unit Box Height - 0.02
Unit Box Length - 0.13
Unit Box Width - 0.105
Unit Brutto Volume - 0.0003619 cubm
Unit Gross Weight - 0.057 kg
Unit Net Weight - 0.0057 kg
Vendor Homepage - www.westerndigital.com/en-kw/products/internal-drives/wd-blue-sn5000-nvme-ssd?sku=WDS100T4B0E
Warranty - 60L months
warrantyLength - 60
warrantyType - G
Weight - 0.04
weight - 50
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 2.3 mm
Weight & dimensions - Weight - 5.7 g
Weight & dimensions - Width - 22 mm
Write speed - 4900 MBytes/sec
