ID: 1073615
Product code: SGAMMIXS55-1T-C
Can be ordered 46 units Availability: 14 days after order approval
Warranty: 3 years

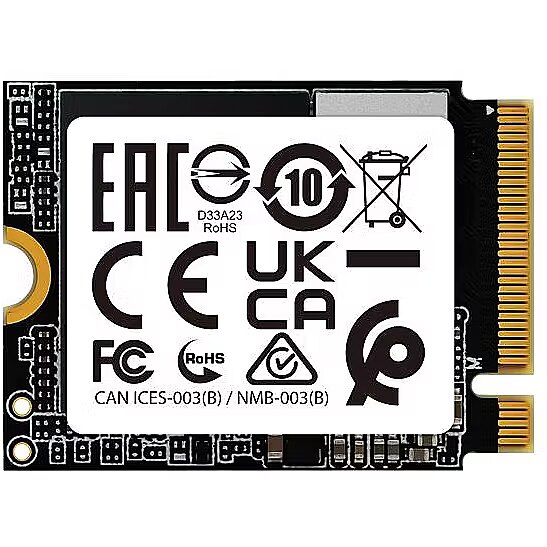

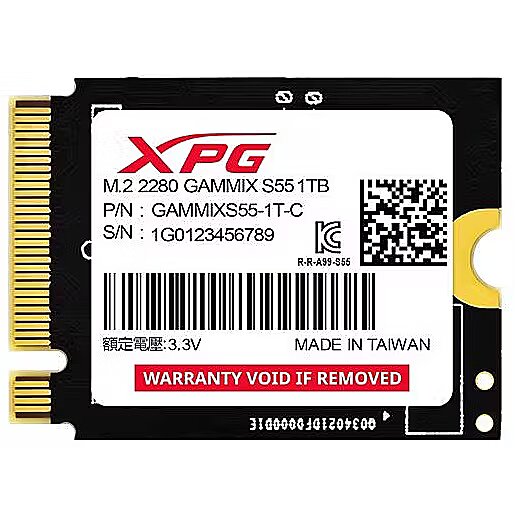

ADATA GAMMIX S55, 1TB, M.2 2230 Gen4x4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 10.12.2024
- Delivery to Omniva parcel machine free of charge: 10.12.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 10.12.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.12.2024
- Delivery to address in Riga 3.99 €: 10.12.2024
- Delivery to address in Latvia 6.99 €: 10.12.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 06.12.2024 after 15:00
Main product parameters All parameters
- Capacity: 1 TB
- Type: NVMe
- Read speed (sequential): 5000 MB/s
- Write speed (sequential): 3700 MB/s
- Form factor: M.2 30mm (2230)
- Interface: PCIe 4.0 x4
Description
Available for purchase, the Adata M.2 30mm (2230) format SSD disk with a large volume of 1 TB.
This is an NVME type SSD drive. It uses the PCI-e protocol, which allows data to be transmitted over multiple lines at the same time. This type of drive is ideal for processing large files, gaming, video editing, and other resource-intensive tasks.
5000 MB/s – this is the data reading speed that this SSD disk is capable of reaching. However, we must remember one crucial nuance - "fast" disks may not show the performance promised by the manufacturer if adequate cooling is not provided.
The writing speed for this SSD disk reaches 3700 MB/s. Without a suitable cooling mechanism, "fast" disks may not be able to achieve the performance indicators promised by the manufacturer.
This is an SSD disk in the M.2 30mm (2230) format.
This SSD disk has a PCIe 4.0 x4 interface. Keep in mind that if you insert a disk with a newer interface (for example, with PCIe 4.0 or 5.0) into an older interface slot (for example, PCIe 3.0), the disk speed will decrease because the disk will not have sufficient data transfer speed (Bandwidth).
Basic information
Capacity
1 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVMe
Read speed (sequential)
5000 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
3700 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: Nav
Lighting
: Nav
Ports and equipment
Form factor
M.2 30mm (2230)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at Dateks.lv section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 4.0 x4
Interface
PCI-Express 4X
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specifikācija
Memory type
: TLC (Triple-Level Cell)
Random Read IOPS
: Not indicated
Random Write IOPS
: Not indicated
Endurance (TBW)
: 250 TB
More detailed specification
Brand - ADATA
BrandPartCode - SGAMMIXS55-1T-C
Category - Internal Solid State Drives
Depth - 30 mm
Description - XPG GAMMIX S55 PCIe Gen4x4 M.2 2230 SSD GAMMIX S55 is equipped with a PCIe 4.0 interface providing sequential read and write speeds of up to 5000/3800 MB per second and memory capacity of up to 1 TB. Adopting the M.2 2230 form factor, GAMMIX S55 provides high-end storage for small systems, mobile devices and supports the latest Intel and AMD platforms.
dimensionalWeight - 54
dimension depth - 15 mm
dimension height - 105 mm
dimension weight - 24 g
dimension width - 130 mm
Disk type - SSD
Drive type - Internal
ean - 4711085942357
Features - Component for - PC/Laptop
Features - Interface - PCI Express 4.0
Features - M.2 SSD size - 2230 (22 x 30 mm)
Features - Mean time between failures (MTBF) - 1500000 h
Features - Memory type - 3D NAND
Features - NVMe - Yes
Features - Product colour - Black
Features - Read speed - 5000 MB/s
Features - S.M.A.R.T. support - Yes
Features - SSD capacity - 1 TB
Features - SSD form factor - M.2
Features - Write speed - 3700 MB/s
Form factor (width) - M.2 2230
GTIN - 4711085942357
guarantee - 60
guarantee_type - normal
HDD capacity - 1 TB
HDD interface - PCI-Express
Height - 2.05 mm
LongDesc - Mainstream Specs with Superior PerformanceThe GAMMIX S55 adopts a mainstream PCIe Gen4 x4 transmission interface which complies with the NVMe 1.4 standard, delivering excellent read and write performance, and supports the latest Intel and AMD platforms, adding a powerful tool to your mobile working arsenal.A Smooth Immersive ExperienceThe GAMMIX S55 boasts a sequential read and write speed of 5,000/3,700MB per second, three times faster than standard PCIe Gen3 SSDs, and is fully backward compatible with PCIe 3.0 platforms. The GAMMIX S55 is a fully fueled engine for all your work and gaming needs.Upgrade Your Mini Laptops and HandheldsFeaturing an M.2 2230 form factor, the GAMMIX S55 is easily installed in extremely limited system enclosures including in devices such as mini laptops, handheld game systems, and tablets*. It can even to replace handheld gaming SSDs to massively expand usable storage capacity. The GAMMIX S55 is not only the perfect size for the job, it also provides a seamless experience when gaming on-the-go.Generous 2TB CapacityUtilizing 3D NAND flash, the GAMMIX S55 is available in generous capacities of up to 2TB and includes a number of data protection and correction technologies. Its TBW (Total Bytes Written) volume and durability have also been greatly improved to meet the requirements of high capacity storage.Shining TechnologyFaster! The GAMMIX S55 comes with a SLC cache algorithm, Host Memory Buffer, and LDPC (Low Density Parity Check Code) error correction mechanism, which greatly improve system loading, data caching, and transmission stability.SSD Toolbox for Real-time Status OversightSSD Toolbox ensures you are running the latest firmware to maintain the highest level of performance. Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T.) monitors SSD health status and remaining lifespan, as well as current operating temperature and storage capacity, so users can track SSD status in real time.
LongProductName - 1 TB, M.2 2230, 3D NAND, PCIe Gen4 x4
LongSummaryDescription - ADATA SGAMMIXS55-1T-C. SSD capacity: 1 TB, SSD form factor: M.2, Read speed: 5000 MB/s, Write speed: 3700 MB/s, Component for: PC/Laptop
Model - XPG GAMMIX S55
name - XPG GAMMIX S55 SSD 1TB PCIe 4x4 5/3.7MB/s M2230
Operational conditions - Operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -45 - 85 °C
Other features -
producer - Adata
producerCode - SGAMMIXS55-1T-C
productName - ADATA SSD GAMMIX S55 1TB Gen 4x4 2230
ProductName - SGAMMIXS55-1T-C
productSize - Normal
Reading speed - 5000 MB/s
ShortSummaryDescription - ADATA SGAMMIXS55-1T-C, 1 TB, M.2, 5000 MB/s
sizeX - 130
sizeY - 105
sizeZ - 20
Solid state drive - Interface - PCIe Gen4x4
Solid state drive - M.2 SSD size - 2230 (22 x 30 mm)
Solid state drive - Mean time between failures (MTBF) - 1500000 h
Solid state drive - NAND flash component - Yes
Solid state drive - Read speed - 5000 MB/s
Solid state drive - SSD capacity - 1 TB
Solid state drive - Vibration resistance - 1500 G
Solid state drive - Write speed - 3700 MB/s
TBW - 250 TB
Title - ADATA SGAMMIXS55-1T-C internal solid state drive 1 TB M.2 PCI Express 4.0 NVMe 3D NAND
URL - https://www.xpg.com/us/xpg/solid-state-drive-gammix-s55?tab=desc
vendpn - SGAMMIXS55-1T-C
WarrantyInfo -
warrantyLength - 60
warrantyType - G
weight - 25
Weight & dimensions - Depth - 30 mm
Weight & dimensions - Height - 2,05 mm
Weight & dimensions - Height - 2.05 mm
Weight & dimensions - Weight - 2.7 g
Weight & dimensions - Width - 22 mm
Width - 22 mm
Writing speed - 3700 MB/s
