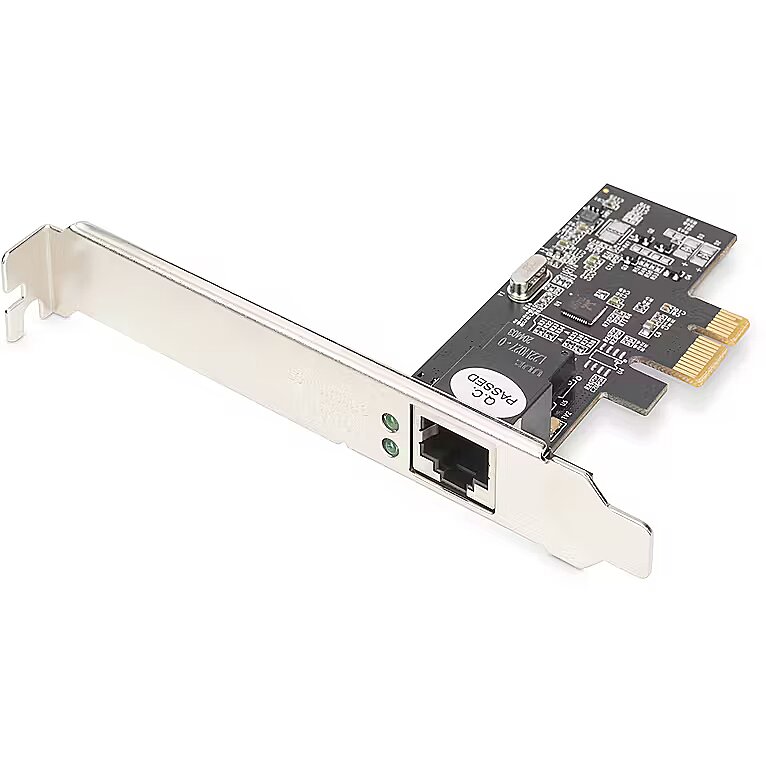

Digitus GIGABIT ETHERNET PCI EXPRESS NETWORK CARD 2.5G (4-SPEED)

Accessories included - 1 x low-profile slot cover
ARTIKEL1 - GIGABIT ETHERNET PCI EXPRESS
ARTIKEL2 - NETWORK CARD 2.5G (4-SPEED)
Breite - 0.14
Chipset type - Realtek RTL8125B kontroler 2500Base-T Ethernet
Code - DN-10135
Description - The PCIe Gigabit Network Adapter from DIGITUS provides maximum performance for network applications requiring high data throughput. It is ideal for streaming high definition content. The integrated LAN connectors (RJ45) are compatible with the IEEE802.3u standard for Fast Ethernet and the IEEE802.3ab standard for Gigabit Ethernet at up to 2.5Gbps. It also supports Full Duplex Flow Control IEEE802.3x and Wake-on-LAN. The card can be installed in full installation height slots and an additional low profile slot cap for half installation height is included. Connection: 1 x Gigabit LAN (RJ45) 10/100/1000/2500 Mbps network support with auto-sensing Ideally suited for streaming and gaming applications requiring high network bandwidth Supported operating systems: Windows 7/8/10 (32- / 64-bit), Windows Server 2008 R2/2012 R2/2016, Linux 4 and later version
Design - Chipset - Realtek RTL8125B
Design - Component for - Server/workstation
Design - Internal - Yes
Design - LED indicators - Yes
Design - Plug and Play - Yes
Design - Product colour - Black
dimensionalWeight - 168
dimension depth - 35 mm
dimension height - 200 mm
Dimensions - 12 x 9,8 x 2,2 cm
dimension weight - 190 g
dimension width - 140 mm
EAN - 4016032473978
ean - 4016032473978
EANCode - 4016032473978
Gewicht - 0.2
GRUPPE1 - Network
GRUPPE2 - Network Adapters
guarantee - 24
guarantee_type - external
HERSTELLER - DIGITUS
Hoehe - 0.04
HSTNUMMER - DN-10135
I/O ports - 1 x 10/100/1000/2500 RJ-45 port
Interface - PCIe
Laenge - 0.21
Link - https://de.assmann.shop/Active-Network-Components/Network-Cards-and-Adapter/Gigabit-Ethernet-PCI-Express-Network-Card-2-5G-4-Speed.html
Logistics data - Harmonized System (HS) code - 85176990
Name - Digitus | 2,5 Gigabit Ethernet PCI Express Card 2.5G Ethernet NIC | DN-10135
name - PCI Express Network Card DN-10135
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000
Network - Ethernet LAN data rates - 2500 Mbit/s
Network - Maximum data transfer rate - 2500 Mbit/s
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network - Wake-on-LAN ready - Yes
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 5 - 50 °C
Other features - Auto MDI/MDIX crossover support PCI Express 2.1 compatible Wake-on-LAN (WOL) support LED indicating operating mode: active device / data transfer / 2.5G data transfer Operating temperature: 5°C to +50°C Operating humidity: 20% to 80%
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 200 mm
Package features > Gross height (mm) - 35 mm
Package features > Gross width (mm) - 140 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 1763 pc(s)
Package features > Paper/Pasteboard - 130 g
Package features > Plastic (No PET) - 12.00 g
Package features > Tare weight (kg) - 0.142 kg
Package features > Volume (m3) - 0.00098 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - No
Packaging content - Mounting brackets included - Yes
Packaging content - Quick installation guide - Yes
Performance > Connector(s) - PCI Express
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Host interface - PCI Express
Ports & interfaces - Interface - Ethernet
Ports & interfaces - PCI Card form factor - Full-height (low-profile)
Ports & interfaces - PCI version - 2.1
producer - Digitus
producerCode - DN-10135
Producer product family - 2,5 Gigabit Ethernet PCI Express Card 2.5G Ethernet NIC
Producer product name - DN-10135
productName - Digitus Gigabit Ethernet PCI Express Network Card 2.5G (4-Speed)
productSize - Normal
sizeX - 200
sizeY - 140
sizeZ - 30
Standards - 802.1Q
Standards - 802.3
Standards - 802.3ab
Standards - 802.3u
Standards - 802.3x
Stck_Kart - 9998
Stck_Pal - 0
Storno - N
Supported operating systems - Linux
Supported operating systems - Windows 7
Supported operating systems - Windows 8
Supported operating systems - Windows 10
Supported operating systems - Windows Server 2008
Supported operating systems - Windows Server 2012
Supported operating systems - Windows Server 2016
System requirements - Linux operating systems supported - Yes
System requirements - Server operating systems supported - Windows Server 2008 R2
System requirements - Server operating systems supported - Windows Server 2012 R2
System requirements - Server operating systems supported - Windows Server 2016
System requirements - Windows operating systems supported - Windows 7
System requirements - Windows operating systems supported - Windows 8
System requirements - Windows operating systems supported - Windows 10
Technical details > Gross weight - 0.182 kg
Technical details > Net weight - 0.04 kg
Technical details > Other features - Gigabit data transmission with up to 2500 Mbps (2.5G); Supported network standards: IEEE802.3, IEEE802.3u & IEEE802.3ab; Ideal for streaming and gaming applications with high data rates;Supports IEEE802.3x full-duplex flow control; Supports IEEE802.1q VLAN tagging; Supports Wake-on-LAN; Additional low-profile slot bracket for use in narrow housings
Technical details > Producer - Digitus
Technical details > Warranty - 24 month(s)
Type - LAN
vendpn - DN-10135
Warranty - 24
warrantyLength - 24
warrantyType - G
Weight - 35.2 g
weight - 190
Weight & dimensions - Depth - 98 mm
Weight & dimensions - Height - 22 mm
Weight & dimensions - Weight - 35.2 g
Weight & dimensions - Width - 120 mm
