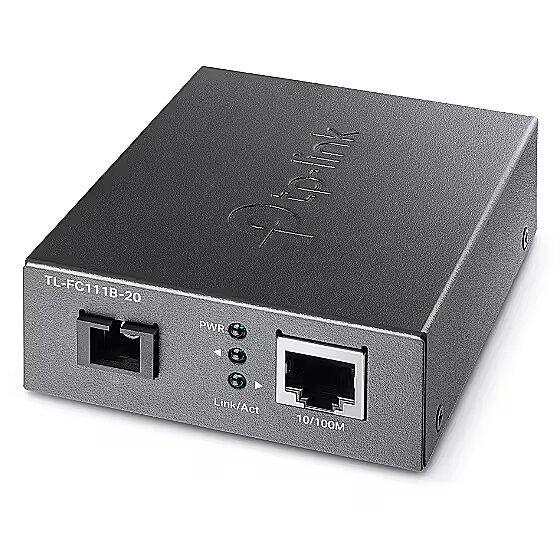

TP-LINK FE SINGLE-MODE SC FIBERCONVERTE WDM BI-DIRECTIONAL IN

10Base-T / 100Base-TX Ports - 2
Accessories included - Światłowód jednomodowy 9/125 m (20 km)
ARTIKEL1 - FE SINGLE-MODE SC FIBERCONVERTE
ARTIKEL2 - WDM BI-DIRECTIONAL
Brand - TP-Link
BrandPartCode - TL-FC111B-20
Breite - 0
Breite - 0.17
Cable distance - 20km
Category - Network Media Converters
Category - Root/Electronics/Networks and communication/Network accessories/Accessories and switch modules
Category Code - MCO
Certificates - Certification - FCC, CE
Certificates - Compliance certificates - RoHS
Code - FC111B-20
Color - Black
Description - - Complies with 802.3u 10/100Base-TX, 100Base-FX standards - Auto-negotiation of Half-Duplex/Full-Duplex transfer mode - 9/125 μm SMF (Single-Mode Fiber) - Bidirectional WDM communication on a single fiber - Ranges up to 20km (12.4 miles) - Work with TL-FC111B-20 as a pair
Description - Zastosowanie produktu TL-FC111B-20 to media konwerter 100M, który zapewnia dostęp do portu RJ-45 100M oraz portu światłowodowego 100M ze złączem SC, przetwarzające sygnały elektryczne na sygnały optyczne i odwrotnie. Urządzenie może być zatem stosowane do użytku komercyjnego, np. w celu zapewnienia długodystansowej transmisji danych na potrzeby monitorowania bezpieczeństwa parku czy w sieciach bezprzewodowych. Działanie urządzenia Dzięki wykorzystaniu technologii WDM TL-FC111B-20 zarówno wysyła jak i odbiera dane na jednym włóknie światłowodowym. Pozwala to zaoszczędzić połowę kosztów zwykle przeznaczanych na okablowanie. Urządzenie wysyła sygnały, których fala ma długość 1310 nm, a odbiera na fali o długości 1550 nm. W związku z tym długość fali dla urządzenia, do którego podłączony jest konwerter, powinna wynosić odpowiednio 1550 nm w przypadku wysyłania sygnałów, natomiast 1310 nm w przypadku odbierania. Jednym z produktów TP-Link, które są zgodne z konwerterem TL-FC111B-20 jest urządzenie TL-FC111A-20
dimension depth - 60 mm
dimension height - 160 mm
Dimensions - 94,5 x 73 x 27 mm
dimension weight - 340 g
dimension width - 210 mm
EAN - 6935364010997
ean - 6935364010997
EANCode - 6935364010997
Eans - 6935364010997
Features - Internal - No
Features - LED indicators - Activity, Link, Power
Features - Product colour - Black
Full Description Line - Network Connection 10/100 BaseT|2x10Base-T / 100Base-TX|Cable distance 20km
Gewicht - 0
Gewicht - 0.34
GRUPPE1 - Network
GRUPPE2 - Media Converters
GTIN - 0845973010096
GTIN - 845973010096
GTIN - 6935364010973
GTIN - 6935364010997
guarantee - 60
guarantee_type - normal
HERSTELLER - TP-LINK
Hoehe - 0
Hoehe - 0.07
HSTNUMMER - FC111B-20
HSTNUMMER - TL-FC111B-20
Inputs - 1 x Ethernet
Laenge - 0
Laenge - 0.21
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - What This Product DoesTL-FC111B-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.How This Product WorksTL-FC111B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111B-20 transmits data at 1310nm wavelength and receives data at 1550nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at a wavelength 1310nm and sending data at wavelength 1550nm.Other FeaturesBesides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
LongProductName - SC, RJ-45, 10/100Base-TX/FX, 94.5x73x27 mm
LongSummaryDescription - TP-Link 10/100 Mbps WDM Media Converter. Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3x, Copper ethernet cabling technology: 10BASE-T, 100BASE-T. Maximum transfer distance: 20000 m, Fiber mode structure: Single-mode, Fiber cable diameters supported (core/cladding): 9/125 µm. LED indicators: Activity, Link, Power, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Output voltage: 5 V, Output current: 0.6 A
name - TP-Link FC111B-20 Media Konwerter 10/100 WDM
Name - TP-Link TL-FC111B-20
Name - TP-LINK | 10/100 Mbps WDM Media Converter | TL-FC111B-20 | 1 x SC Fiber Port | 10/100 Mbps RJ45 Port
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Cable types supported - Cat3, Cat4, Cat5, Cat5e
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-T
Network - Data transfer rate - 100 Mbit/s
Network - Duplex system - Full, Half
Network - Fiber ethernet cabling technology - 100BASE-FX
Network - Flow control support - Yes
Network - Maximum data transfer rate - 100 Mbit/s
Network - Networking standards - IEEE 802.3, IEEE 802.3i, IEEE 802.3x
Network Connection - 10/100 BaseT
Networking > Auto MDI/MDI-X - Yes
Networking > Converter input interface - 1 x SC Fiber Port
Networking > Converter output interface - 10/100 Mbps RJ45 Port
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - ŚRODOWISKO PRACY Dopuszczalna temperatura pracy -0C - 50C (32F - 122F) Dopuszczalna temperatura przechowywania -40C - 70C (-40F - 158F) Dopuszczalna wilgotność powietrza 10% - 90% RH, bez kondensacji Dopuszczalna wilgotność przechowywania 5% - 90% RH, bez kondensacji CECHY SPRZĘTOWE Okablowanie sieciowe 100BASE-Tx: 2-parowa skrętka UTP/STP kat. 5 lub wyższej (100 m) Zasilanie Zasilacz zewnętrzny: 5 V/0,6 A Diody LED PWR, Link/Act
Outputs - 1 x SC Simplex
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 204.00 mm
Package features > Gross height (mm) - 65.00 mm
Package features > Gross width (mm) - 165.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Paper/Pasteboard - 100.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.15 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Package depth - 204 mm
Packaging data - Package height - 65 mm
Packaging data - Package weight - 360 g
Packaging data - Package width - 165 mm
Performance - Fiber cable diameters supported (core/cladding) - 9/125 µm
Performance - Fiber mode structure - Single-mode
Performance - Maximum transfer distance - 20000 m
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Fiber optic connector - SC
Ports & interfaces - Fiber ports quantity - 1
Power - External power adapter - Yes
Power - Output current - 0.6 A
Power - Output voltage - 5 V
producer - TP-LINK
Producer - TP-Link
ProducerCode - TL-FC111B-20
Producer product family - 10/100 Mbps WDM Media Converter
Producer product name - TL-FC111B-20
ProductName - 10/100 Mbps WDM Media Converter
Shipping Box Depth Shipping/Package Box Dimensions - 52 cm
Shipping Box Height Shipping/Package Box Dimensions - 36 cm
Shipping box quantity - 30
Shipping Box Weight Shipping/Package Box Dimensions - 11.8 kg
Shipping Box Width Shipping/Package Box Dimensions - 44 cm
ShortDescription -
ShortSummaryDescription - TP-Link 10/100 Mbps WDM Media Converter, 100 Mbit/s, IEEE 802.3, IEEE 802.3i, IEEE 802.3x, 10BASE-T, 100BASE-T, 100BASE-FX, 100 Mbit/s, Full, Half
Special functions - Konwerter to urządzenie wolnostojące, ale może być także montowanie w szafie rack TP-Link, aby udostępniać funkcję automatycznego krosowania MDI/MDI-X na porcie TX, na którym szybkości połączeń są automatyczne negocjowane w trybie dupleksu.
Stck_Kart - 30
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
Technical details > Gross weight - 0.36 kg
Technical details > Net weight - 0.21 kg
Technical details > Other features - This media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated
Technical details > Producer - TP-LINK
Title - TP-Link 10/100 Mbps WDM Media Converter
Unit Box Height - 0.065
Unit Box Length - 0.204
Unit Box Width - 0.167
Unit Brutto Volume - 0.002746 cubm
Unit Gross Weight - 0.393 kg
Unit Net Weight - 0.2 kg
URL - https://www.tp-link.com/us/business-networking/accessory/tl-fc111b-20/
Usage - Fiber
Vendor Homepage - www.tp-link.com/us/business-networking/accessory/tl-fc111b-20/
vendpn - FC111B-20
Warranty - 60
Warranty - 60 month(s)
Warranty - 60 months
WarrantyInfo -
Weight & dimensions - Depth - 73 mm
Weight & dimensions - Height - 27 mm
Weight & dimensions - Width - 94.5 mm
