ID: 212223
Product code: 524179
Can be ordered 10 units Availability: 14 days after order approval
Warranty: 3 years

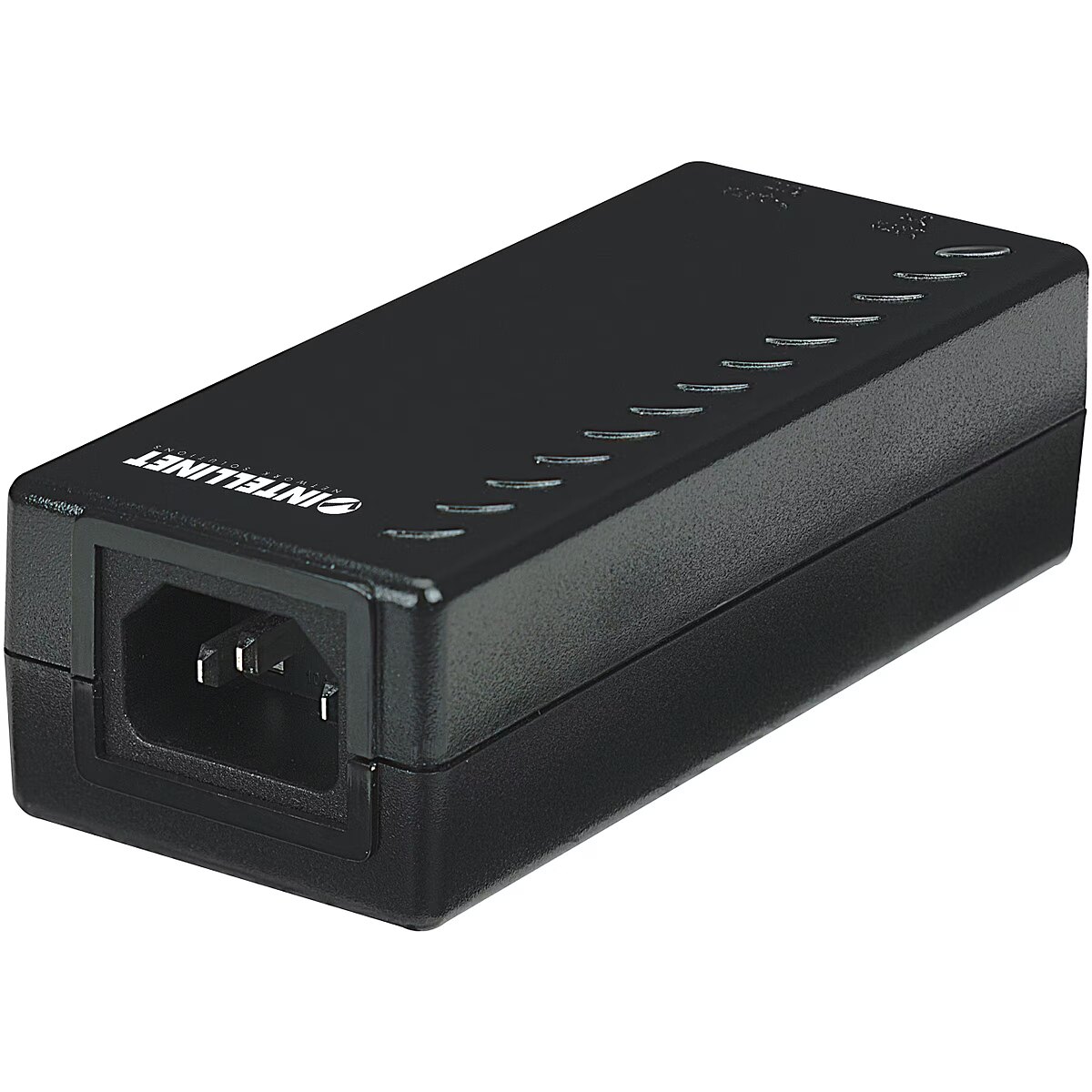

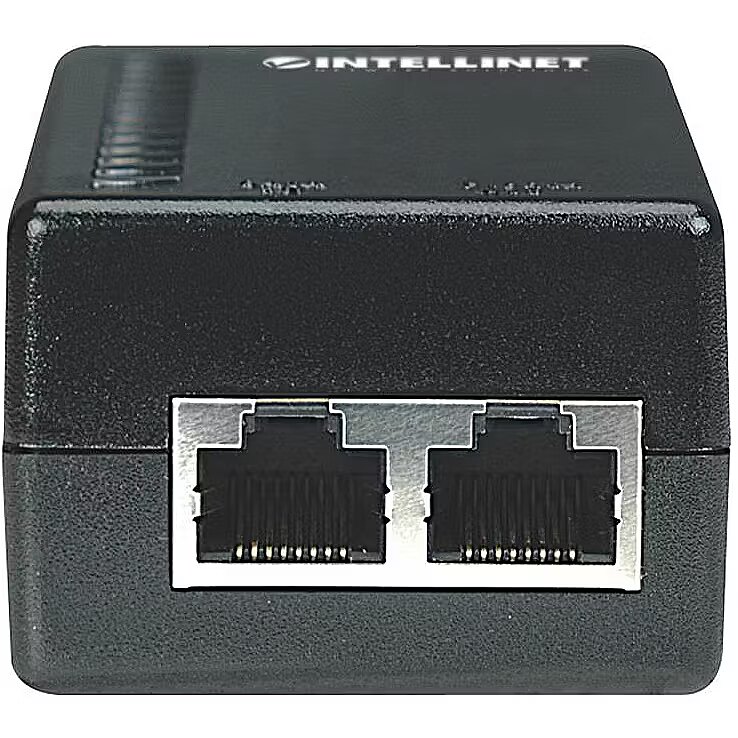

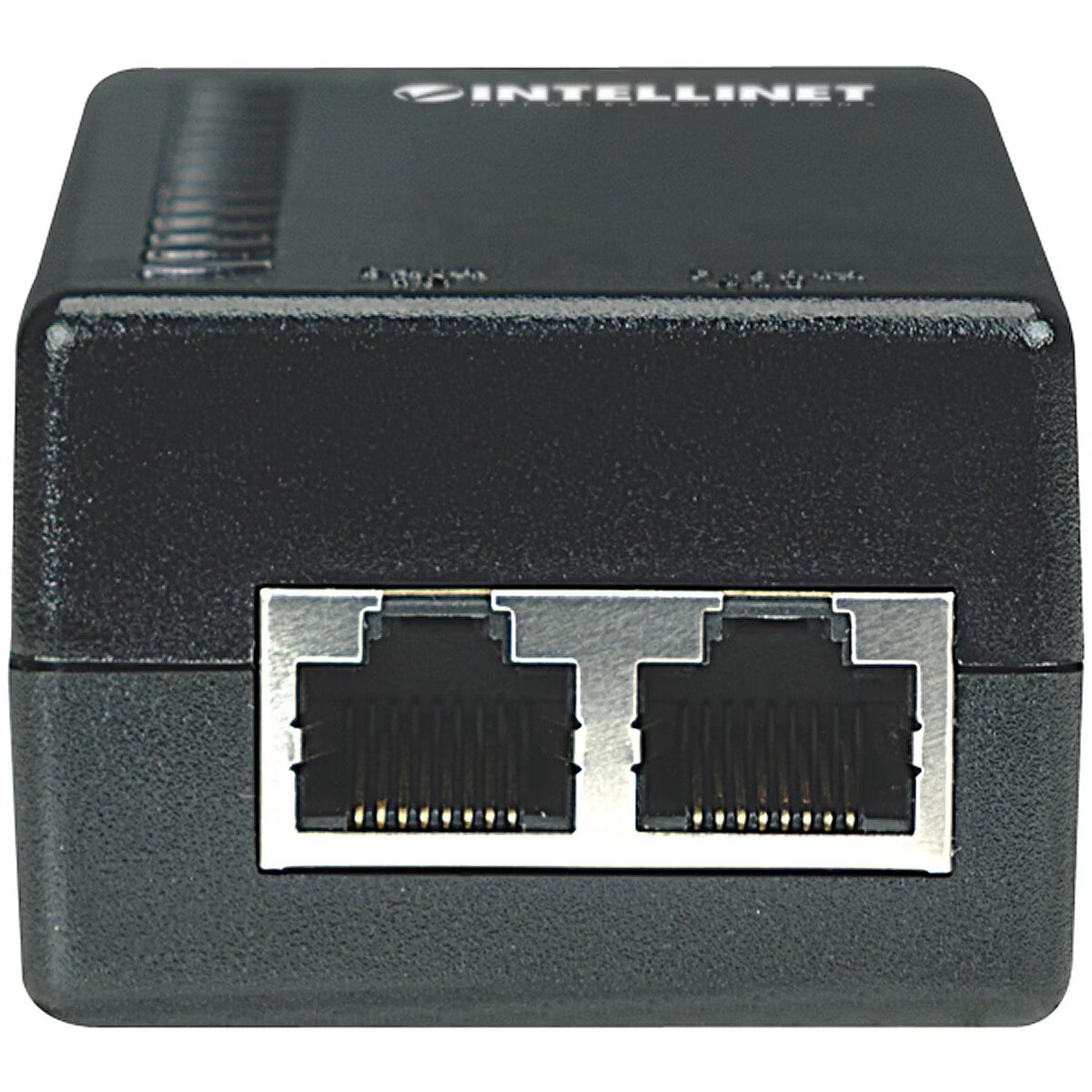

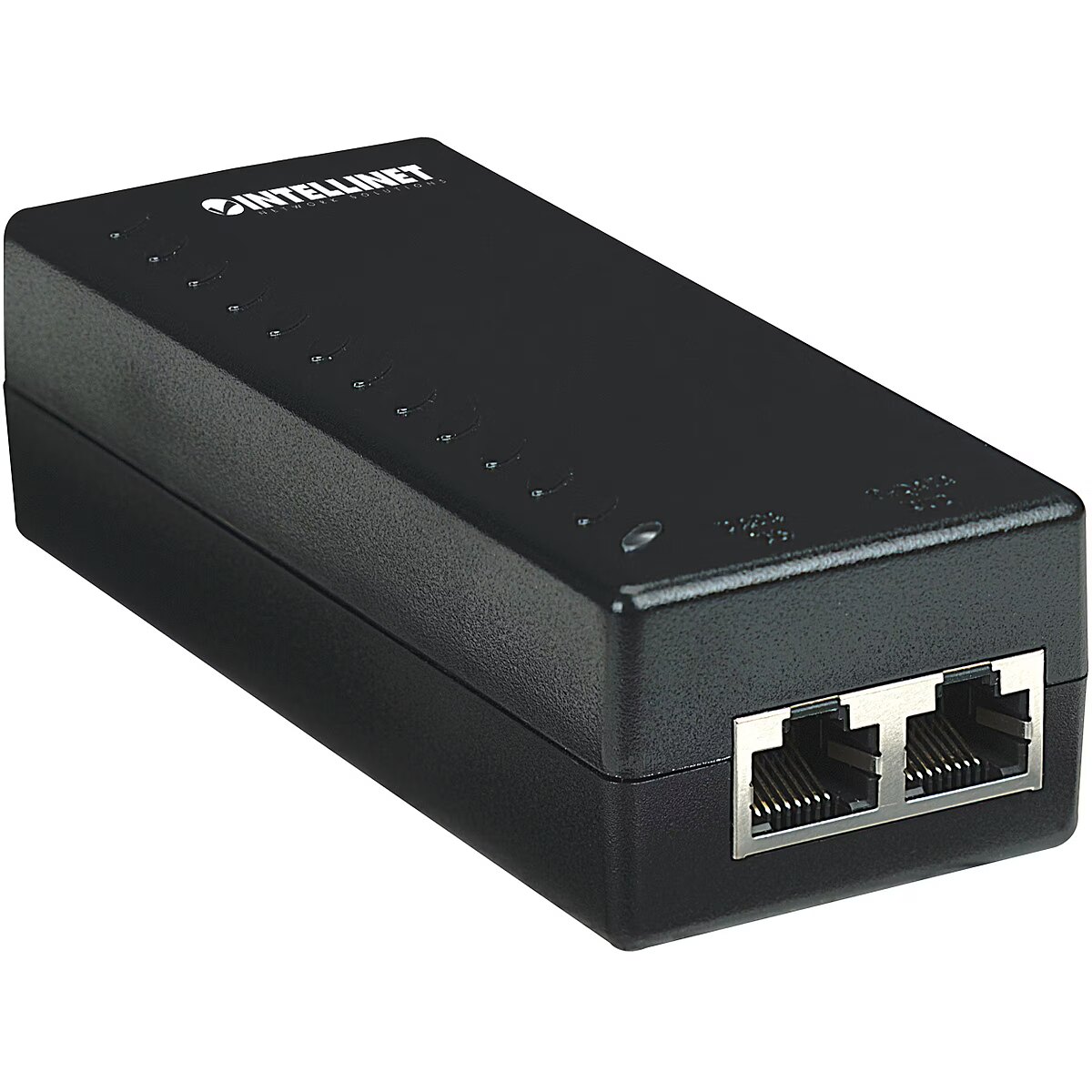

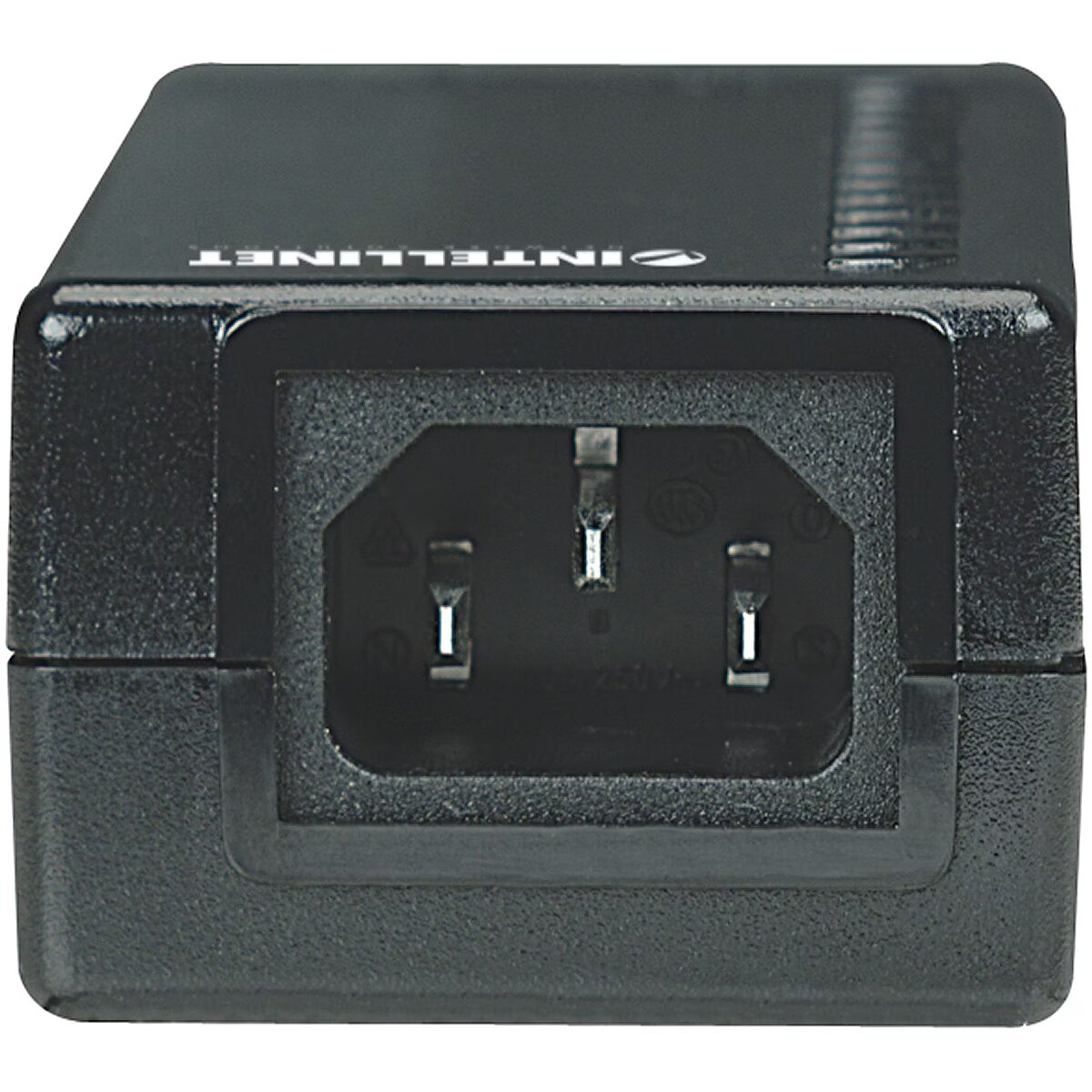

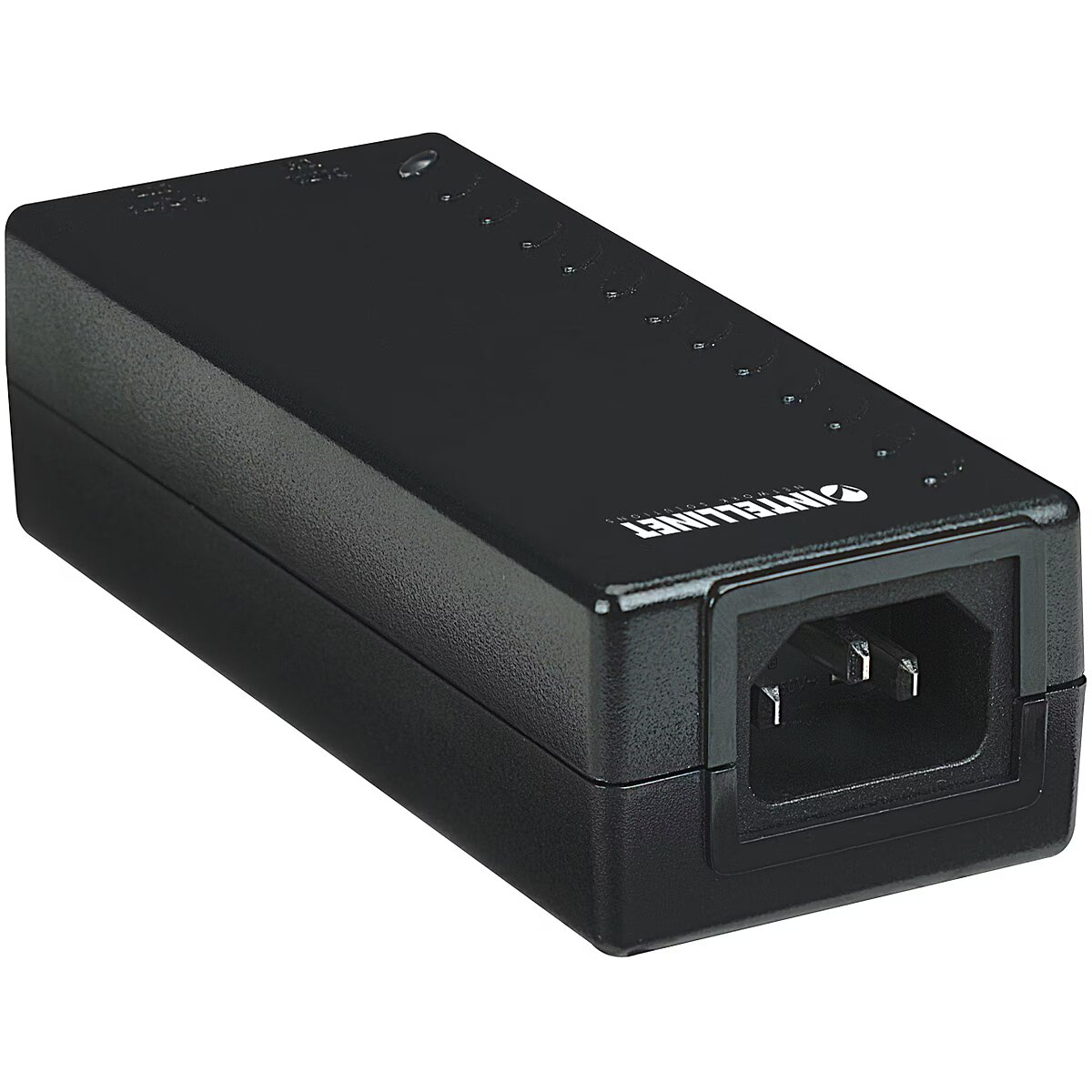

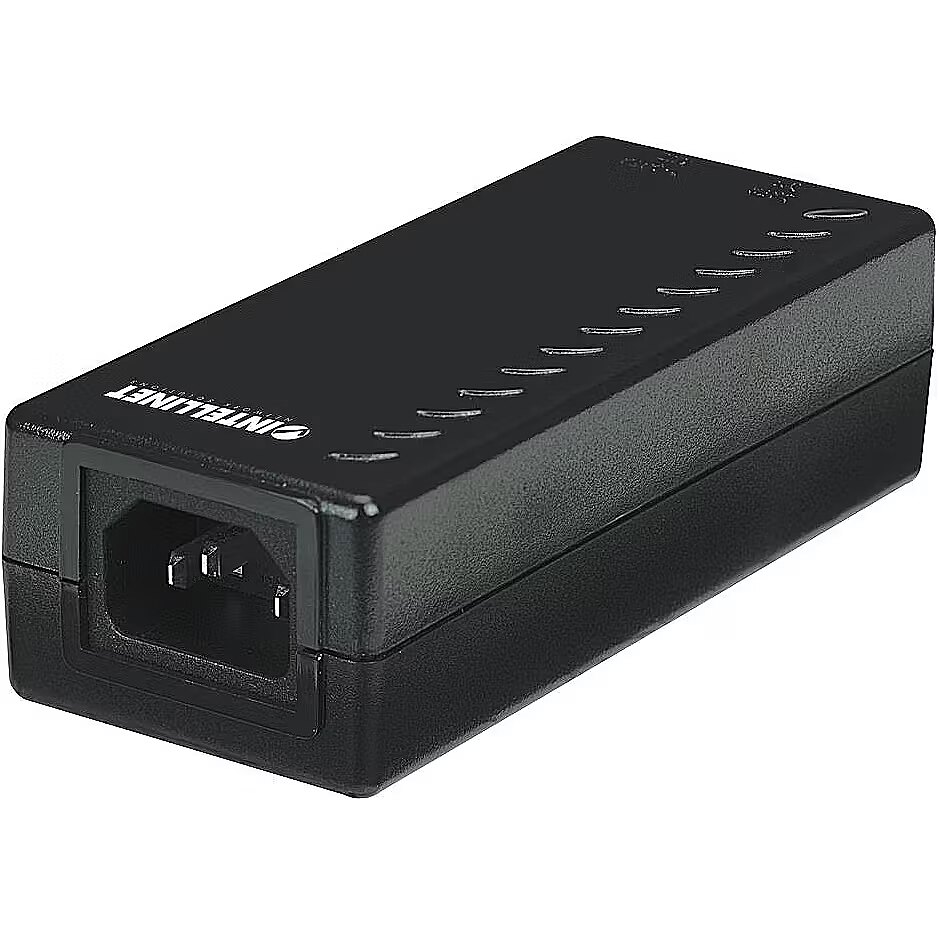

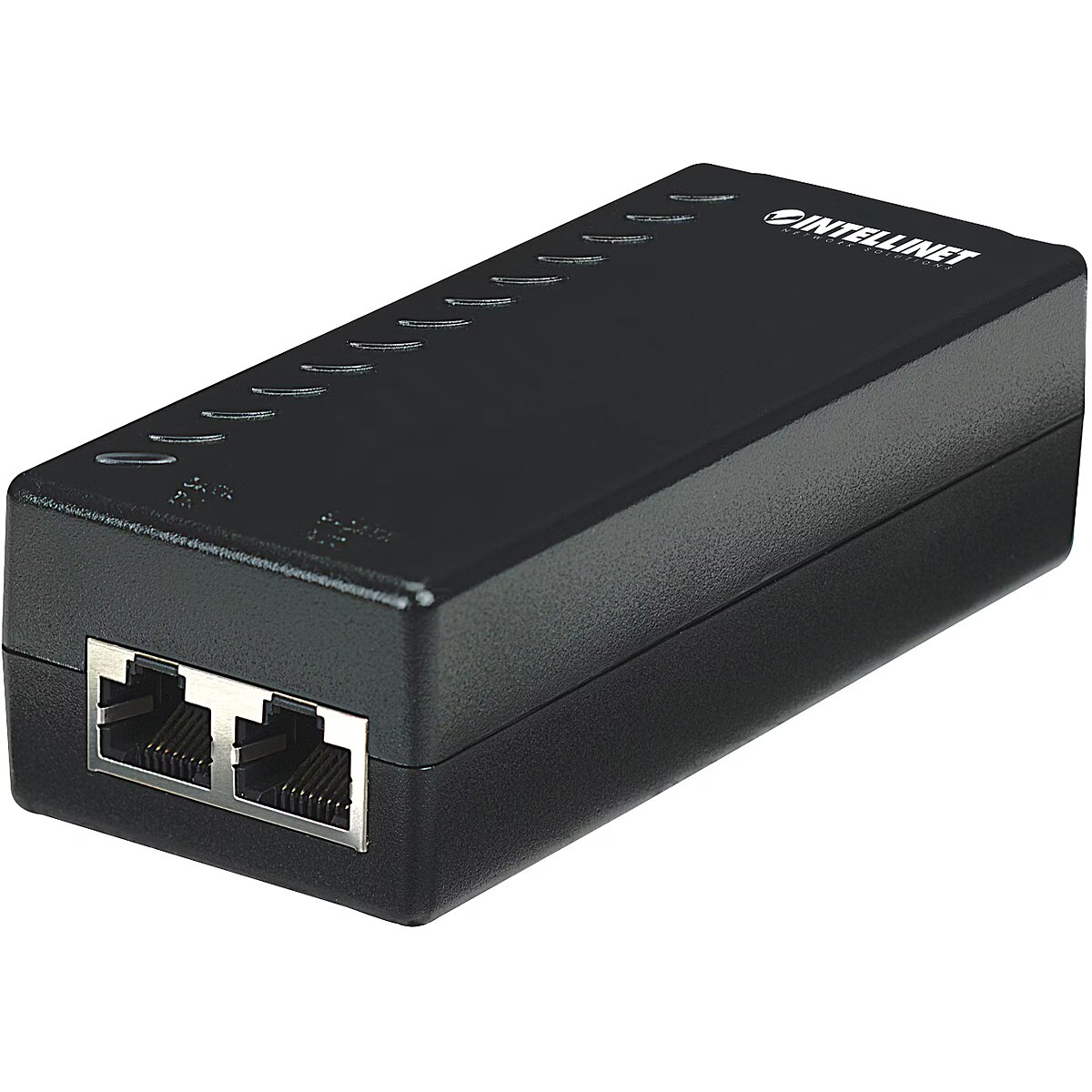

Intellinet PoE Injector IEEE 802.3af class3 1 port
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 24.04.2025
- Delivery to Omniva parcel machine free of charge: 24.04.2025
- Piegāde uz DPD Pickup Paku Skapi free of charge: 24.04.2025
- Delivery to Latvian post office or parcel locker free of charge: 24.04.2025
- Delivery to address in Riga 3.99 €: 24.04.2025
- Delivery to address in Latvia 6.99 €: 24.04.2025
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 22.04.2025 after 15:00
More detailed specification
Brand - Intellinet
BrandPartCode - 524179
Category - PoE Adapters
Category - Root/Electronics/Networks and communication/Network accessories/Accessories and switch modules
Certificates - Certification - FCC Class B, Part 15, CE 89/336/EEC, UKCA, NDAA
Eans - 0766623524179
Features - LED indicators - No
Features - Power protection features - Over voltage, Overload, Short circuit
Features - Product colour - Black
Features - Safety - SCP
GTIN - 0100177417493
GTIN - 100177417493
GTIN - 0743172986443
GTIN - 743172986443
GTIN - 766623524179
GTIN - 0766623524179
GTIN - 5711045416309
GTIN - 7666235241798
Logistics data - Harmonized System (HS) code - 85044095
LongDesc - Reduce costs by using existing Cat5 cable to provide both power and data. The INTELLINET NETWORK SOLUTIONS Power over Ethernet Injector allows you to connect your IEEE 802.3af-compliant products to a non-PoE LAN switch port. The injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af powered device (PD) to a switch. Reduce Wiring Costs No need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing Cat5 cabling to deliver DC power as well as transfer data. Preserve Existing Investments Does your existing LAN switch not support the new IEEE 802.3af PoE standard? Well, don't let that stop you from realising the benefits of delivering DC power over the existing Cat5 Ethernet cabling. Use the Model 503389 PoE Injector until you are able to upgrade your LAN switch to a model that supports the IEEE 802.3af PoE standard. Protect Your Equipment Now that you are running DC power to your networked equipment through the Cat5 cabling, you need to be sure that the products are protected from power problems. The PoE Injector was designed to protect equipment from short circuits (short GRND), current overloads (over 450 mA) and high voltages (voltage exceeding 52 V).
LongProductName - Power over Ethernet (PoE) Injector, 1 Port, 48 V DC, IEEE 802.3af Compliant (Euro 2-pin plug)
LongSummaryDescription - Intellinet Power over Ethernet (PoE) Injector, 1 Port, 48 V DC, IEEE 802.3af Compliant. Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u. Product colour: Black, Safety: SCP, Power protection features: Over voltage, Overload, Short circuit. Power over Ethernet (PoE) voltage: 52 V, Power requirements: 15.4 W, AC adapter frequency: 50/60 Hz. Certification: FCC Class B, Part 15, CE 89/336/EEC, UKCA, NDAA. Size (imperial): 5.08 cm (2"), Width: 50 mm, Depth: 120 mm
Name - Intellinet zasilacz - adapter POE
Network - Cable types supported - Cat5
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN data rates - 10,100 Mbit/s
Network - Networking standards - IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Network - Power over Ethernet (PoE) - Yes
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 60 °C
Operational conditions - Storage temperature (T-T) - -20 - 85 °C
Packaging content - Manual - Yes
Packaging content - Number of products included - 1 pc(s)
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Power - AC adapter frequency - 50/60 Hz
Power - AC adapter output voltage - 48 V
Power - Input current - 0.45 A
Power - Input frequency - 50 - 60 Hz
Power - Input voltage - 100 - 240 V
Power - Output current - 0.35 A
Power - Power over Ethernet (PoE) voltage - 52 V
Power - Power requirements - 15.4 W
Producer - Intellinet
ProducerCode - 524179
ProductName - Power over Ethernet (PoE) Injector, 1 Port, 48 V DC, IEEE 802.3af Compliant
ShortDescription - Umożliwia zasilanie urządzeń POE wprost z sieci Ethernet
ShortSummaryDescription - Intellinet Power over Ethernet (PoE) Injector, 1 Port, 48 V DC, IEEE 802.3af Compliant, Fast Ethernet, 10,100 Mbit/s, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, Cat5, Black, SCP
Title - Intellinet Power over Ethernet (PoE) Injector, 1 Port, 48 V DC, IEEE 802.3af Compliant
URL - https://intellinetnetwork.eu/catalogsearch/result/?q=524179
WarrantyInfo - 3 years
Weight & dimensions - Depth - 120 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Size (imperial) - 5.08 cm (2")
Weight & dimensions - Weight - 140 g
Weight & dimensions - Width - 50 mm
