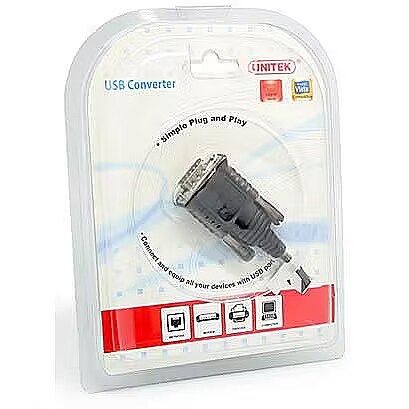

Accessories included - - Y-108 converter
- CD plate
Color - Black
Connectors #1 - USB Type A Male
Connectors #2 - DB9 Serial Port Male

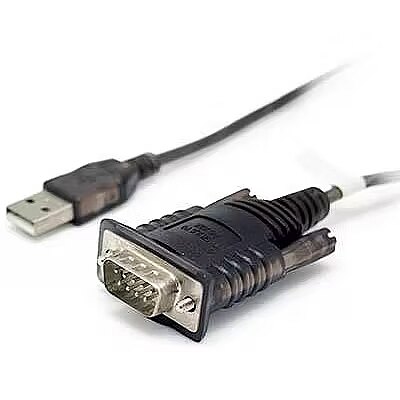

Description - Unitek Y-108 converter USB to Serial
The adapter with a USB 2.0 port RS-232 is the easiest and cheapest way to connect devices using the RS-232 to USB port. The converter is designed especially for users of computers that are not equipped with a serial port for example. Installers and more demanding consumers are forced to connect RS-232 to USB 2.0 port on your computer.
Adapter based on the chip FT232R, which is a complete and fully configurable converter with USB 2.0 to RS232.
A characteristic feature of this device is a powerful customizable system controller.
dimension depth - 50 mm
dimension height - 200 mm
dimension weight - 126 g
dimension width - 150 mm
ean - 4894160000859
guarantee - 24
guarantee_type - external
name - Adapter USB do Serial ; Y-108
Other features - Single chip USB to asynchronous serial data transfer
Protocol USB entirely controlled by one chipset
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and bits of odd / even / mark / space / lack of parity
Fully hardware or software (X-On / X-Off) negotiation signal.
Data transfer rate of 300 baud to 1 Megabaud (232)
256-byte receive buffer 128 and a byte buffer, a forward both forming a buffer in order to increase the data throughput
Drivers FTDI's royalty-free VCP and D2XX
Built-in support for trade events and conditions interrupt lines
The new chipset USB FTDIChip-ID
New configurable CBUS pins I / O
Signals transmission and reception for LEDs
New timing of the output signals of 48MHz, 24MHz, 12MHz, and 6MHz clock output signal. Options for external MCU or FPGA.
buffers transmit and receive FIFO for high throughput
Adjustable time interval receive buffer
Options synchronous and asynchronous bit bang mode signals goals RD # and WR #
New option CBUS mode bit bang
Integrated internal EEPROM 1024 Bit for storing configuration USB VID, PID, serial number and description of the device and CBUS I / O.
The device is programmed with a unique serial USB
Supports pause and resume for USB
Supports configuration of USB power bus, its own power supply
Integrated 3.3V level converter for USB I / O
Integrated level converter on UART and CBUS for 5V - 1.8V
Real output CMOS 5V / 3.3V / 2.8V / 1.8V and input TTL
Option High I / O pin output drive
Integrated USB resistors
Integrated circuit power-on-reset
Fully integrated clock - no external oscillator or resonator
Fully integrated AVCC supply filtering - No external RC filter and separate pins AVCC
Option inversion signal UART
USB bulk transmission mode
Power supply 3.3V to 5.25V
Galvanic isolation of inputs / outputs.
Low current
Low bandwidth consumption USB
Compatible with the host controller UHCI / OHCI / EHCI
Compatible with USB 2.0
Operating temperature range -40 ° C to 85 ° C
Complies with the RoHS directive
producer - Unitek
Supported operating systems - Windows Server 2008 R2
Windows 7
Windows 7 x64
Windows Server 2008
Windows Server 2008 x64
Windows Vista
Windows Vista x64
Windows Server 2003
Windows Server 2003 x64
Windows XP
Windows XP x64
Windows 2000
Windows ME
Windows 98
Linux
Mac OS X
Mac OS 9
Mac OS 8
Windows CE.NET (version 4.2 and higher)
Technical specifications -
Usage - Computer
vendpn - y-108
